DA-682A Win7 Software Installing Moxa Software

4-17

Using Synmap to Read the Voltage Sensor

The following table shows the voltage sensor OIDs.

Item Name OID Access Description

voltSensorsIndex 1.3.6.1.4.1.8691.17.1.5.1.2.1.1 read-only Returns a list of numbers

(beginning with 1) that

corresponds with the available

T-sensors; these identifiers

are used by SNMP and for

system scripts.

voltSensorsDevice 1.3.6.1.4.1.8691.17.1.5.1.2.1.2 read-only Returns a list of string values

identifying the temperature

sensors by name/location.

Possible values are V_CPU,

V_GFX, VTT_CPU,

VCCSA_CPU.

voltSensorsValue 1.3.6.1.4.1.8691.17.1.5.1.2.1.3 read-only The reading returned by the

voltage, in mili-Voltage.

To use Synmap to check the voltage sensor of the DA-682A computer, follow the steps below.

1. Start upMXview (or some other NMS) and open the MIB browser. For detailed instructions on loading

MXview, you may refer to

Loading the Synmap MIB File, steps 1 to 3.

2. Navigate to

MOXA-SYS-MIB\VALUES\moxa\embeddedComputer\moxaSystem\sensorMgmt\

sensorObject\voltSensorTable

in the MIB Browser, and then select Get Subtree to open the

Voltage sensor’s OID tree.

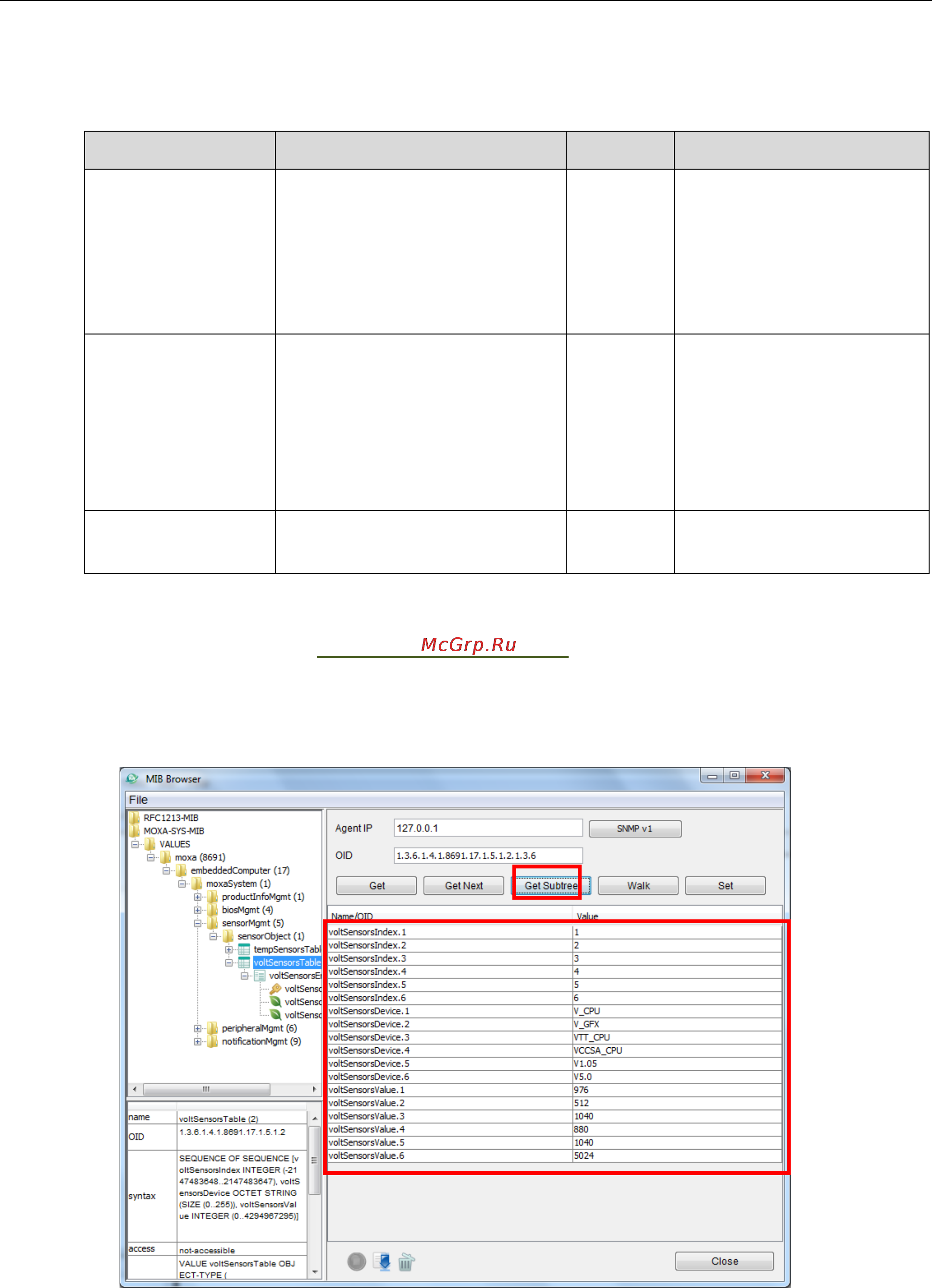

3. All of the Voltage sensor information should now be displayed in the MIB browser; if it is not, then there is

a problem with your SNMP/Synmap configuration or a malfunction in the Voltage sensor. The Voltageare all

displayed in Celsius. In the screenshot below.
