DA-682A Win7 Software System Recovery

6-8

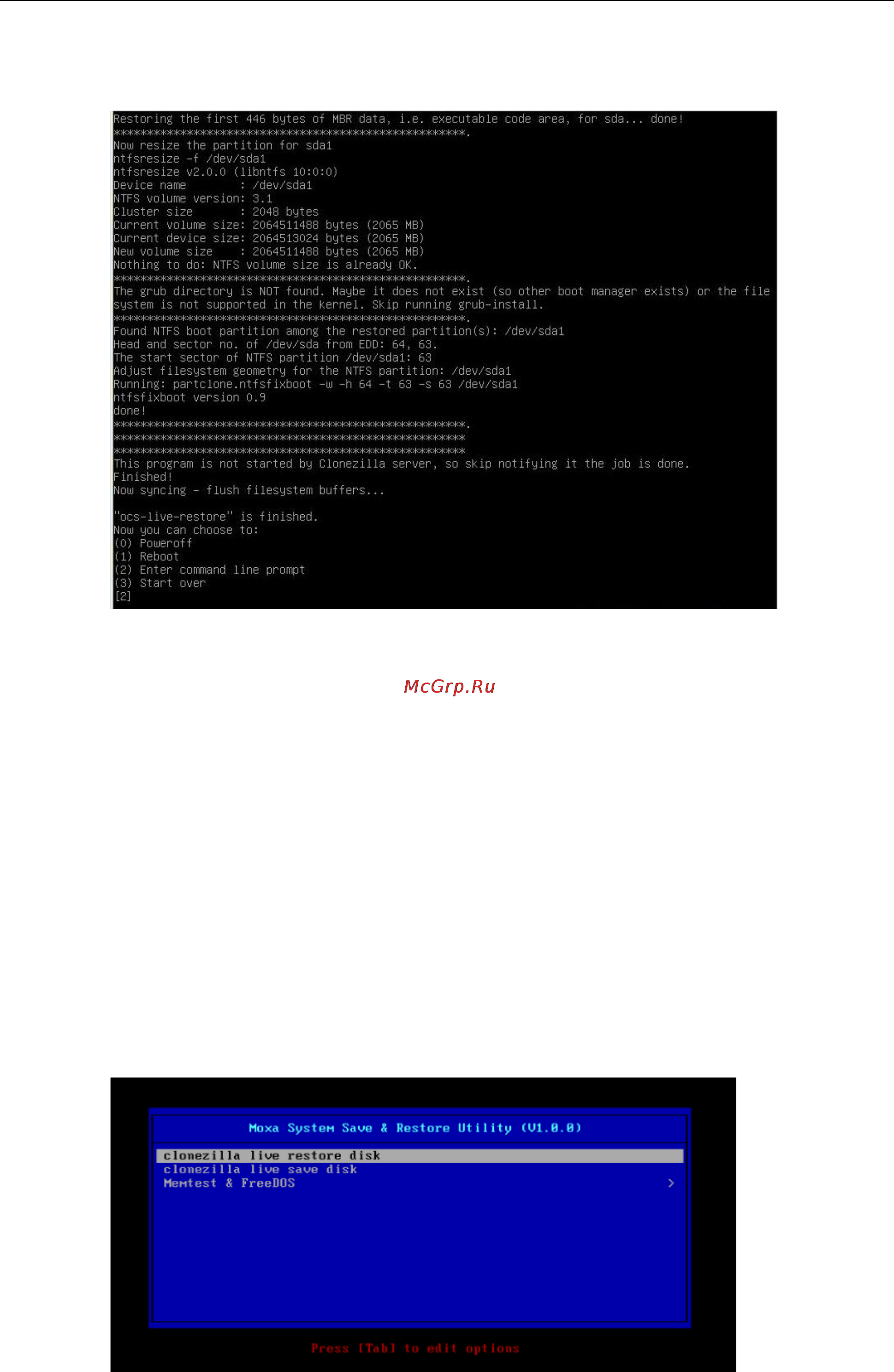

5. At this point you may choose to power down the computer (press 0), reboot (press 1), enter a console

terminal (access a console TTY -- press 2), or re-initiate the entire procedure (press 3). Do not remove

the USB drive until you have rebooted or powered down the system.

6. Once you have powered down the system and removed the USB drive, you have finished configuring the

recovery environment. The USB drive should be clearly labeled and stored in a safe place. You may now

continue to the next section, where you will return the BIOS to its original state (Step 4) and test the

recovery procedure for successful configuration (Step 5).

Step 4: Configure a Stock OS Restoration

From within the desktop environment, the user should then manually copy the directory containing the base OS

from the software DVD over to the USB drive. To do this, copy #:\

<Software DVD>\recovery\os_image

over to the partition image directory,

F:\home\partimag\.

Step 5: Perform a Trial Recovery

Connect the USB drive to any of the DA-682A’s USB ports and then reboot the computer. The system will boot

from the USB into the Clonezilla boot loader.

1. Select Clonezilla Live Restore Disk to boot into the system restoration environment.
