V2401/2402 Series Linux User’s Manual System Recovery

5-4

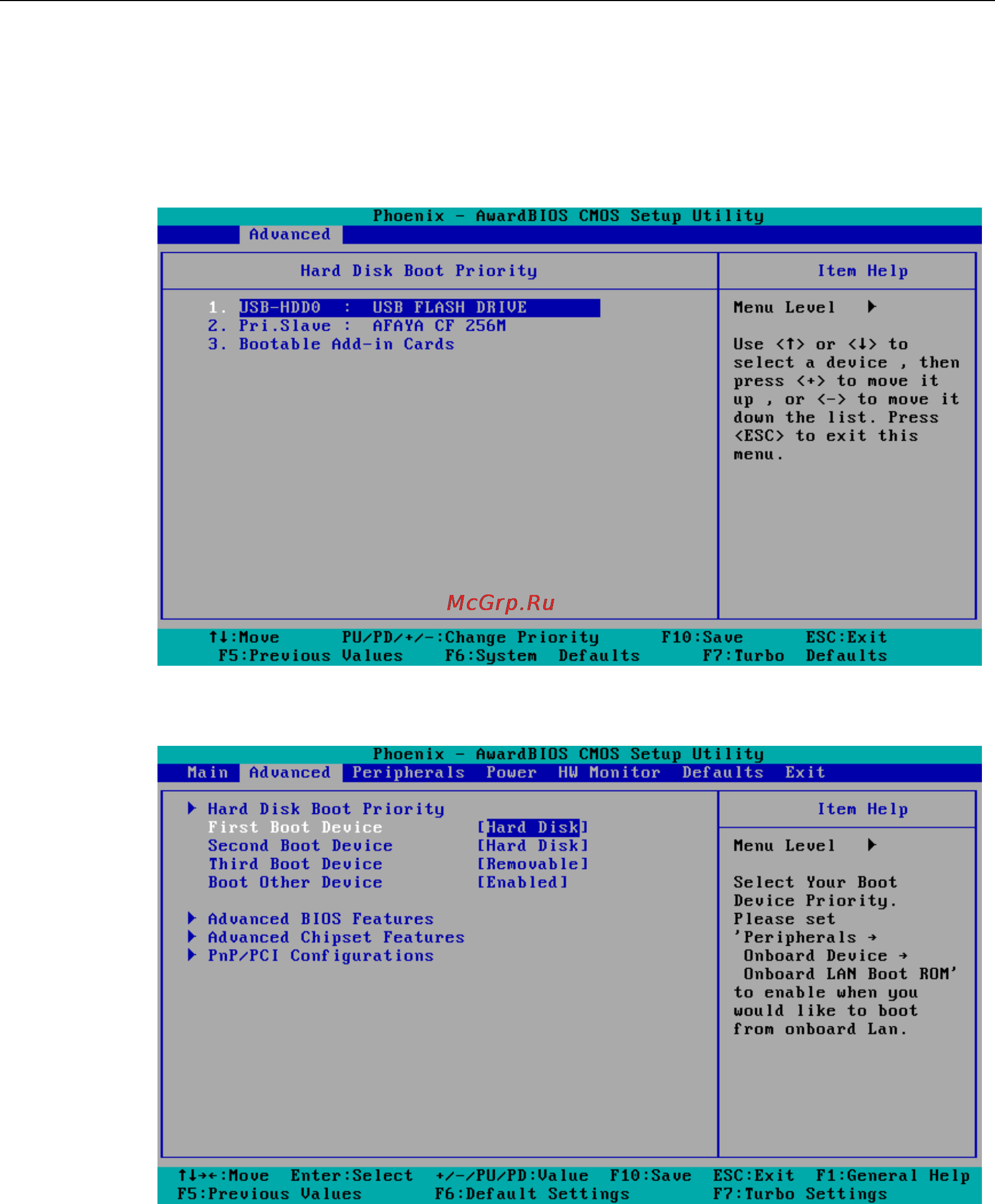

Step 3: Set up the BIOS to Boot from a USB Disk.

a. Insert the USB disk.

b. Power on and press DEL to enter the bios setup menu.

c. Select Advanced Æ Hard Disk Boot Priority and then press Enter.

d. From the setup menu, use “↑” or “↓” to select the USB device

e. Press “+” to move the selection up to the first priority, and press Esc to exit the setup menu.

f. Make sure the first boot device is Hard Disk. If not, press Enter to change it.

g. Select Exit Æ Save & Exit Setup and then press Enter.

h. Choose Y to save to the CMOS and then exit.
