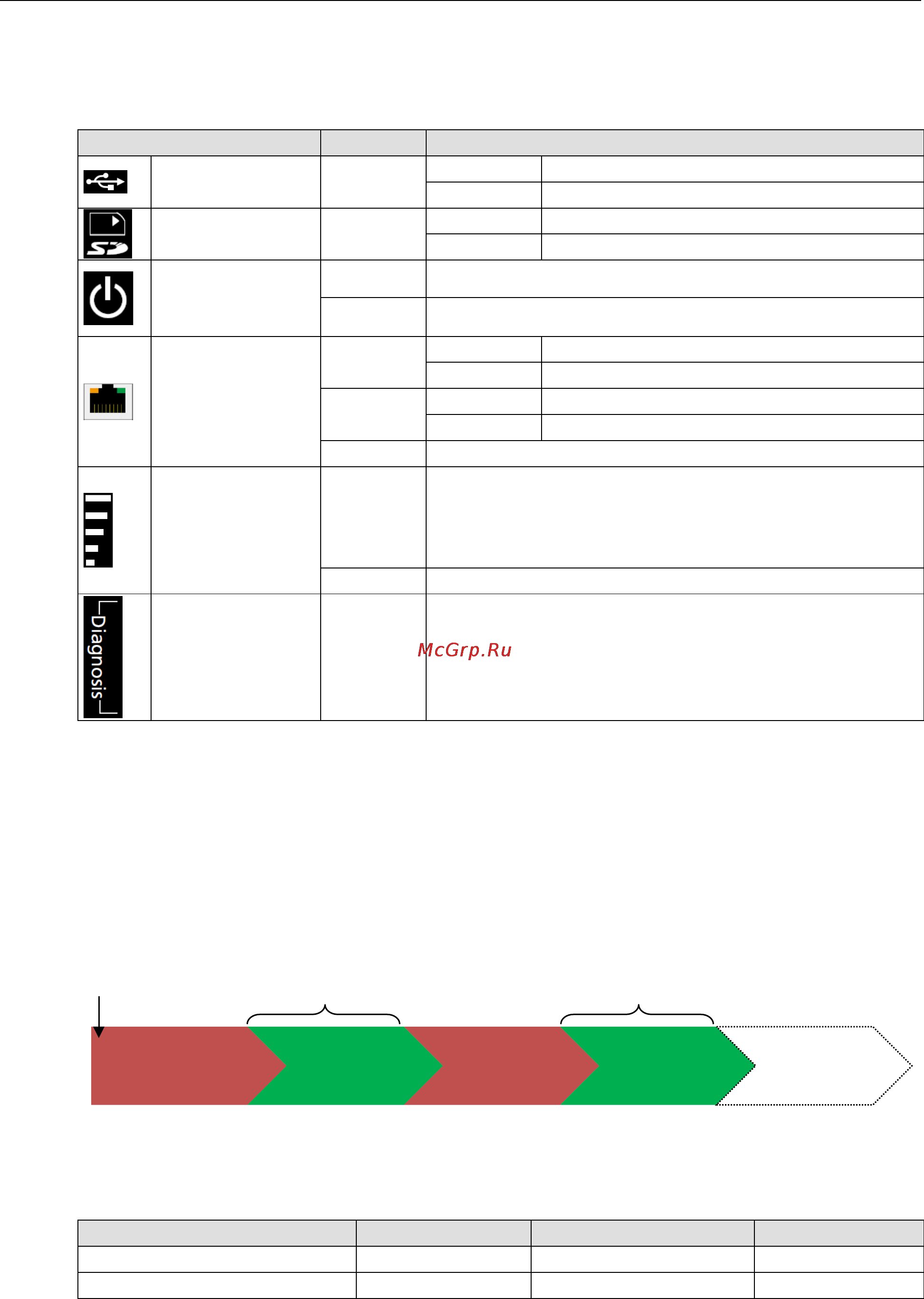

UC-8112-ME-T Series Hardware Introduction
2-3
LED Indicators
Refer to the following table for information about each LED.
LED Name Color Function
USB Green
Steady On USB device is connected and working normally.
Off USB device is not connected.
SD Green
Steady On SD Card inserted and working normally.
Off SD Card is not detected.
Power
Green Power is on and the computer is working normally.
Off Power is off.
LAN1/2 (On RJ45
connector)
Green
Steady On 100 Mbps Ethernet link
Blinking Data transmission in progress.
Yellow
Steady On 10 Mbps Ethernet link
Blinking Data transmission in progress.
Off Ethernet is not connected.
Wireless Signal
Strength
Green
Yellow
Red
The number of glowing LEDs indicates the signal strength
3 (Green + Yellow + Red): Excellent
2 (Yellow + Red) : Good
1 (Red) : Poor
Off Wireless module is not detected.
Programmable
Diagnostic LEDs
Green
Yellow
Red
These 3 LEDs are programmable. Refer to the “Default
Programmable Button Operations” section for details.
Default Programmable Button Operations
The function button (FN) located on the top panel is used to diagnose device failure or to perform firmware
restoration. After pressing the button, release it at the appropriate time to enter the required mode to either
troubleshoot issues in your computer or restore your computer to the default configuration. Refer to the
following illustration for detailed instructions:
The LED indicators behave differently when diagnosing a device failure compared to performing a firmware
restoration. See the following table for details:
Status Red LED Yellow LED Green LED
Executing diagnostics program Blinking Off On
Resetting to default configuration Blinking Blinking On
RED LED
Blinking
GREEN LED
On
RED LED
Blinking
GREEN LED
On
NO ACTION
0 2 4 7 8
Release the button during
this time to diagnose
device failure
Time (s)
Release the button during this
time to perform restoration
Button pressed
