UC-8112-ME-T Series Hardware Connection Description
3-7

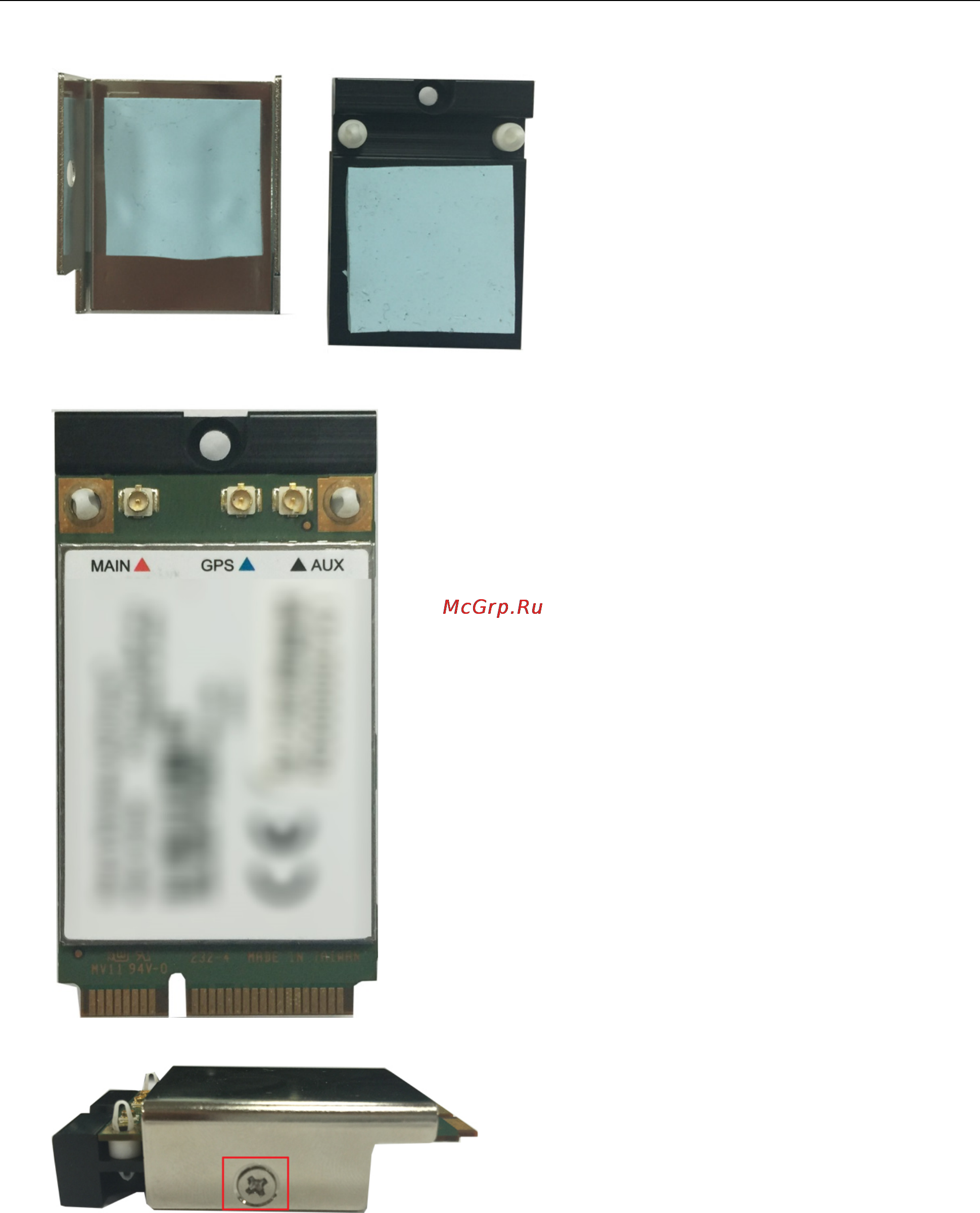

10. Attach one thermal pad to the cellular module cover and the other thermal pad to the module pad.
11. Attach the cellular module to the module pad.
12. Mount the module cover on the cellular module and use screws on both sides to secure the cover.
