UC-8112-ME-T Series Introduction
1-4
Power Requirements
Input
Voltage: 12 to 36 VDC (3-pin terminal block, V+, V-, SG)
Input Current:
•
260 mA @ 12 VDC
•
135 mA @ 24 VDC
Power Consumption:
3.24 W (without cellular module and external USB device attached)
•
260 mA @ 12 VDC
•
135 mA @ 24 VDC
Standards and Certifications
Safety:
UL 60950-1, EN 60950-1, CCC (GB9254, GB17625.1)
EMC:
EN55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, FCC Part 15 Subpart B Class A
Green Product:
RoHS, CRoHS, WEEE
Reliability
Alert Tools:
Built-in RTC (real-time clock)
Automatic Reboot Trigger:
Built-in WDT (watchdog timer)
Warranty
Warranty Period:
5 years
Details:
See www.moxa.com/warranty

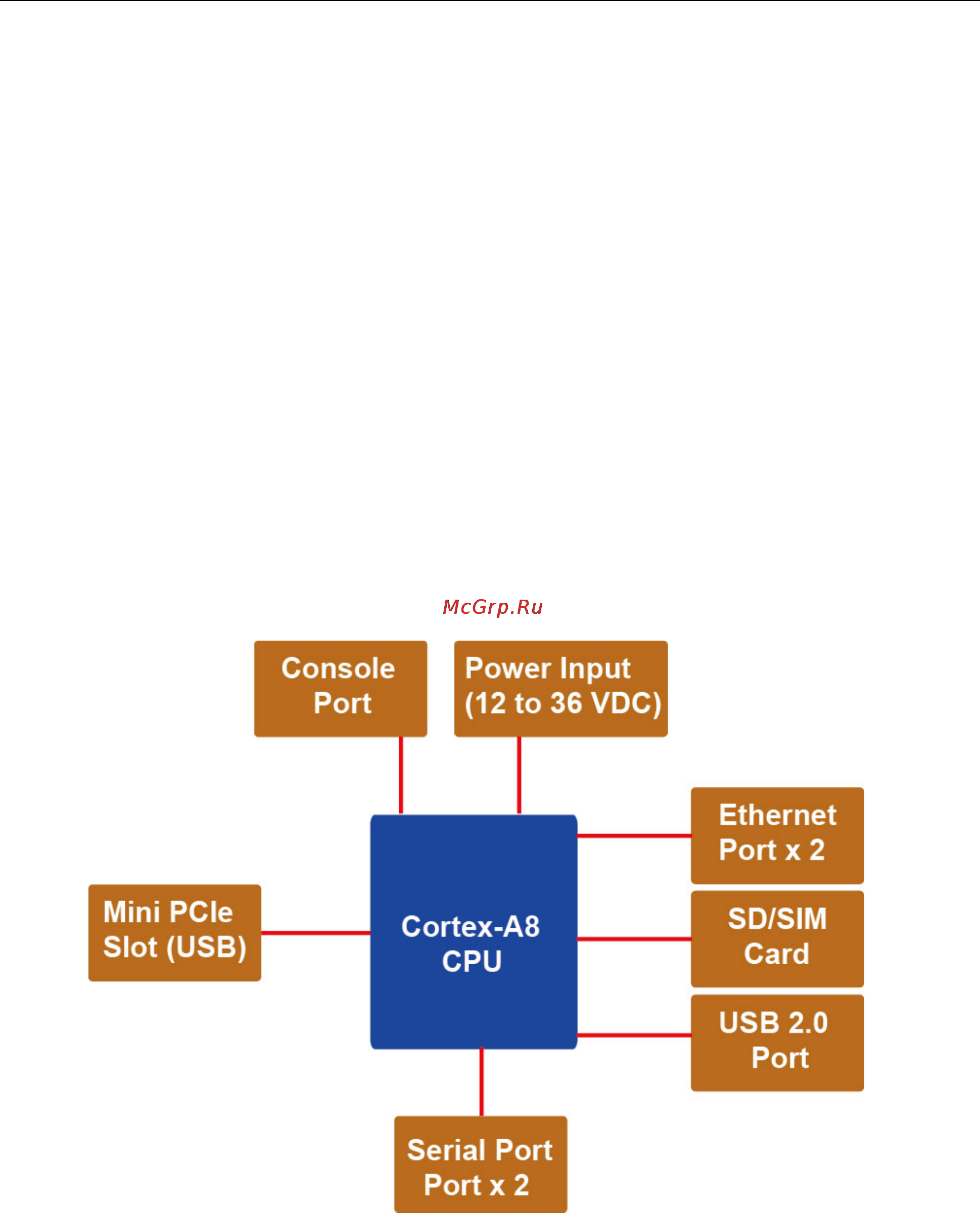

Hardware Block Diagram
