UC-8112-ME-T Series Hardware Connection Description
3-6

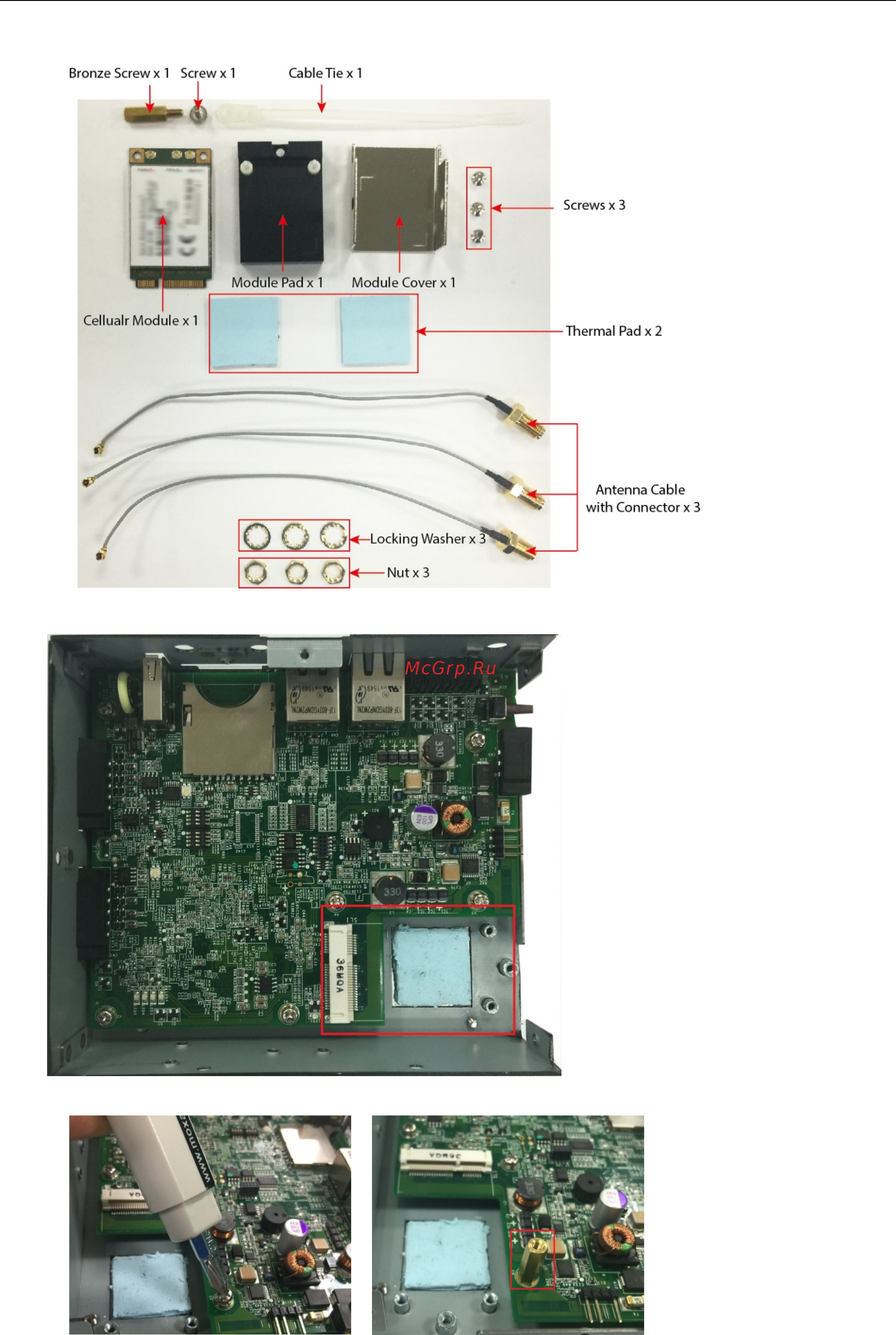

7. Check the contents of the cellular module package. The package should contain the items shown below:
8. Remove the metal cover of the computer and locate the cellular module socket.
9. Remove the screw next to the socket and replace it with the bronze screw (in the package) as shown below:
