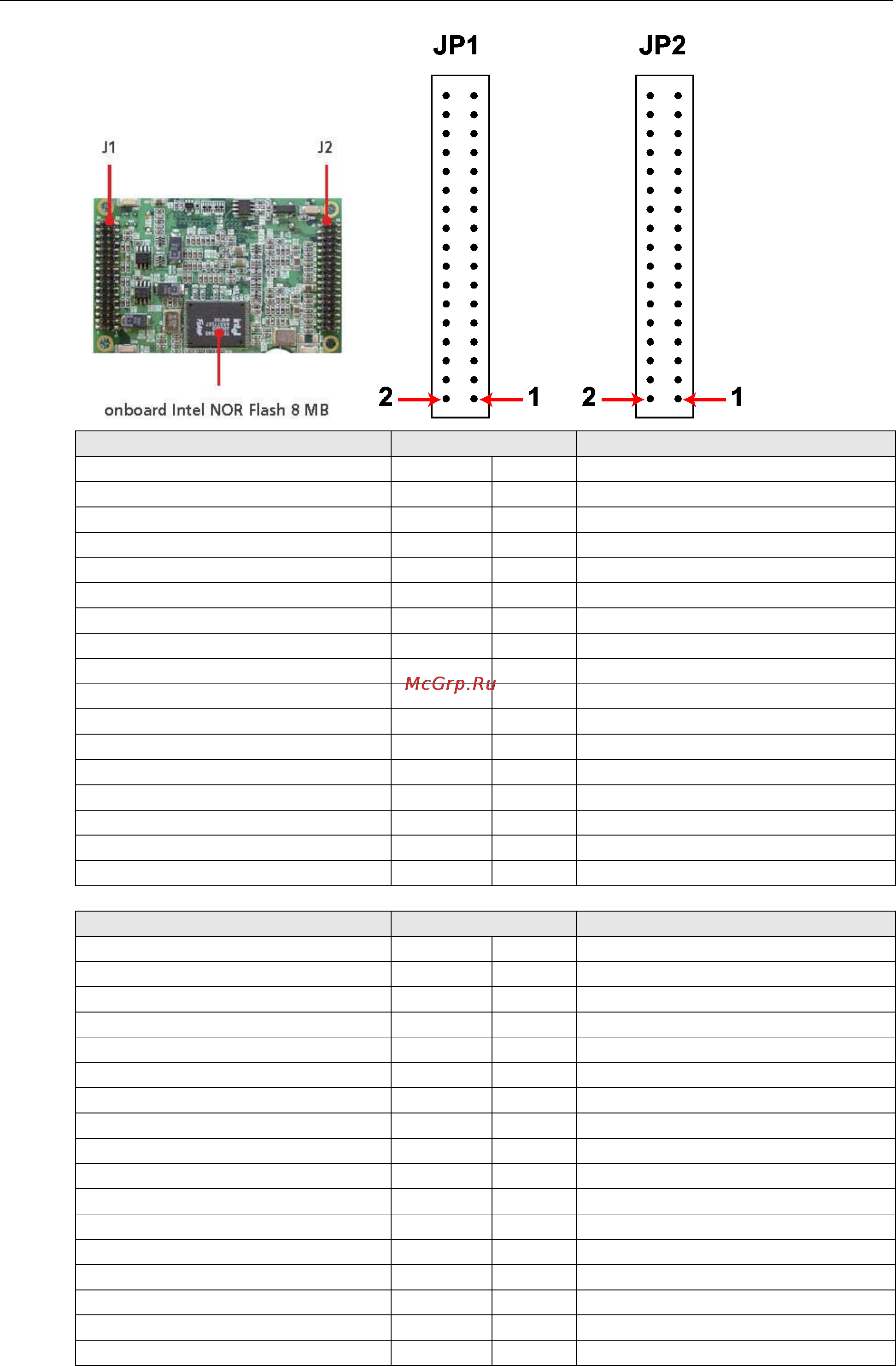

Product Name EM-1220 Functionality
2-3
Signals J1 Pin No. Signals
VCC(3.3V) 1 2 VCC(3.3V)
VCC(3.3V) 3 4 VCC(3.3V)
GND 5 6 GND
GND 7 8 GND
TxD0 (RS-232) 9 10 RxD0 (RS-232)
RTS0 11 12 CTS0
DTR0 13 14 DSR0
RxD1 (RS-232) 15 16 DCD0
CTS1 17 18 TxD1 (RS-232)
DSR1 19 20 RTS1
DCD1 21 22 DTR1
Data-(A)0 / RxD-(A)0 23 24 Data-(A)1 / RxD-(A)1
Data+(B)0 / RxD+(B)0 25 26 Data+(B)1 / RxD-(A)1
Serial LED_Tx0 27 28 Serial LED_Rx0
Serial LED_Tx1 29 30 Serial LED_Rx1
TxD-(A)0 31 32 TxD-(A)1
TxD+(B)0 33 34 TxD+(B)1
Signals J2 Pin No. Signals
Console_RxD 1 2 Console_TxD
Eth1_TxD_out+ 3 4 GND
Eth1_TxD_out- 5 6 Eth1_RxD_in+
Eth1_LED_100M 7 8 Eth1_RxD_in-
Eth0_TxD_out+ 9 10 Eth1_LED_10M
Eth0_TxD_out- 11 12 Eth0_RxD_in+
Eth0_LED_100M 13 14 Eth0_RxD_in-
GPIO0 15 16 Eth0_LED_10M
GPIO2 17 18 GPIO1
GPIO4 19 20 GPIO3
GPIO6 21 22 GPIO5
GPIO8 23 24 GPIO7
Buzzer 25 26 GPIO9
LED_Ready 27 28 SW Reset
N/C 29 30 N/C
GND 31 32 GND
GND 33 34 GND
