Product Name Introduction
1-4
Green Product: RoHS, CRoHS, WEEE
Reliability
Alert Tools: Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger: Built-in WDT (watchdog timer)
MTBF (mean time between failures): 405,735 hrs
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
Note: The Hardware Specifications apply to the embedded computer unit itself, but not to accessories. In
particular, the wide temperature specification does not apply to accessories such as the power adaptor and
cables.

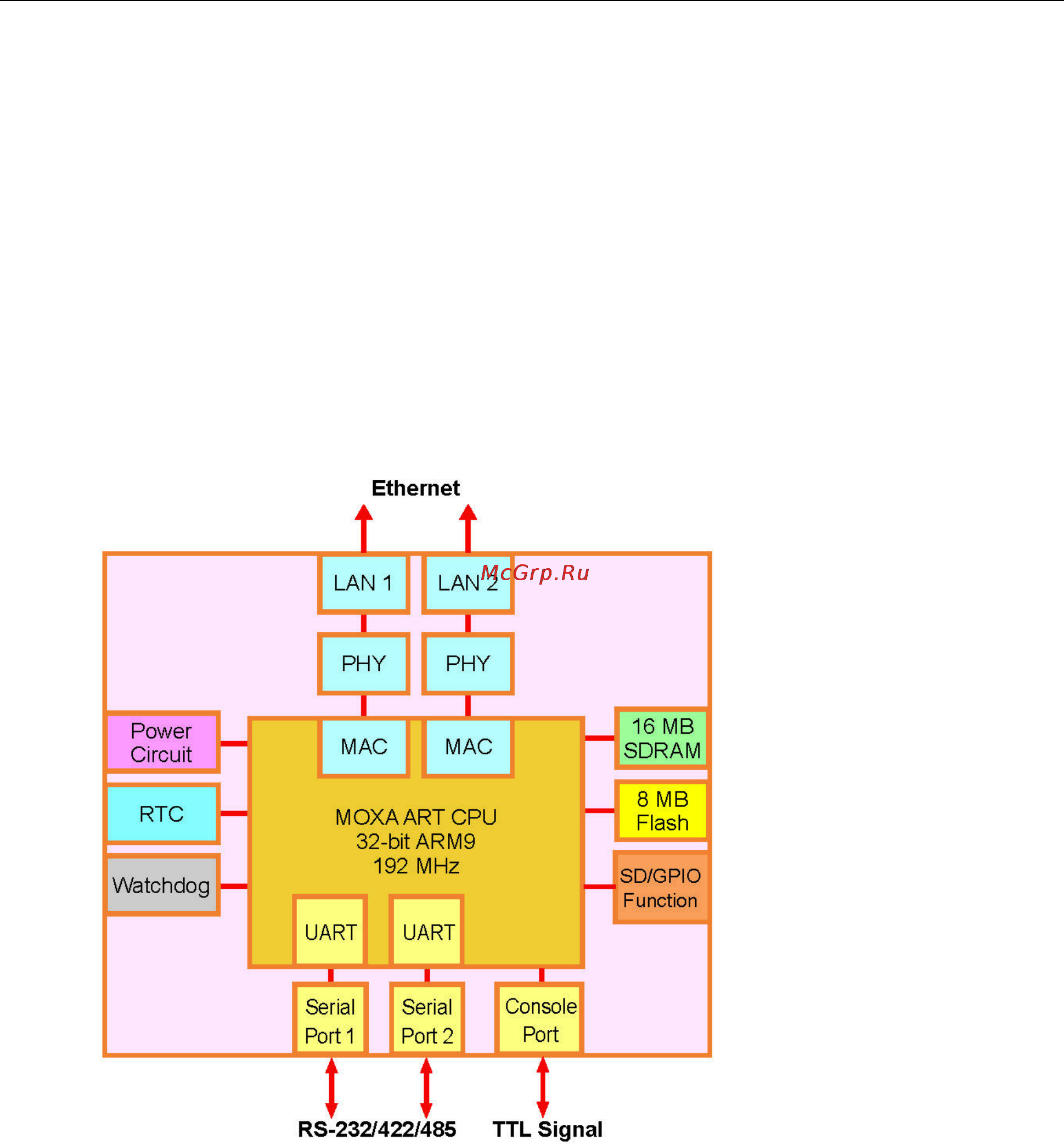

EM-1220 Hardware Block Diagram
