Product Name EM-1220 Functionality
2-4
Definition of SD Signals
The following table gives the definition of the SD signals. Note that the signal pins from the J2 pin header share
the same pin as the GPIO.
Signal Name Direction GPIO Description
SD_CLK Output GPIO 7 Clock signal to SD/MMC
SD_CMD Bidirectional GPIO 2 Bidirectional line for command and response
SD_DAT<3:0> Bidirectional GPIO <6:3> Bidirectional line for read and write data
SD_CD Input GPIO 1 Card detect
SD_WP Input GPIO 0 Write protect
Mechanical Specifications of the Pin Headers

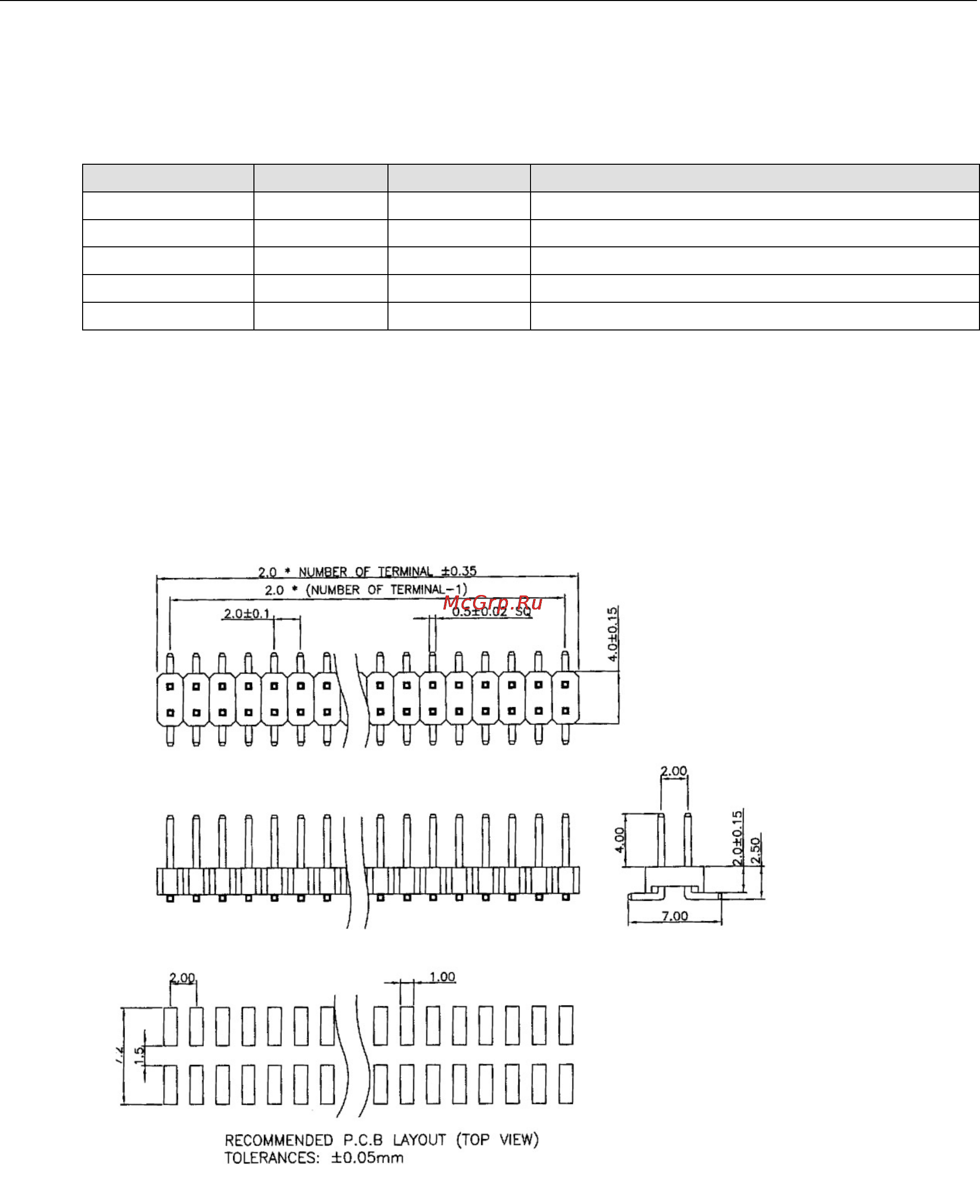

Refer to the following figures for the mechanical specifications of the Pin Headers on the EM-1220 Embedded
Module. The figures define the mechanical specifications of jumpers J1 and J2 on the EM-1220.
