IA240/241 Linux User’s Manual Getting Started
2-3

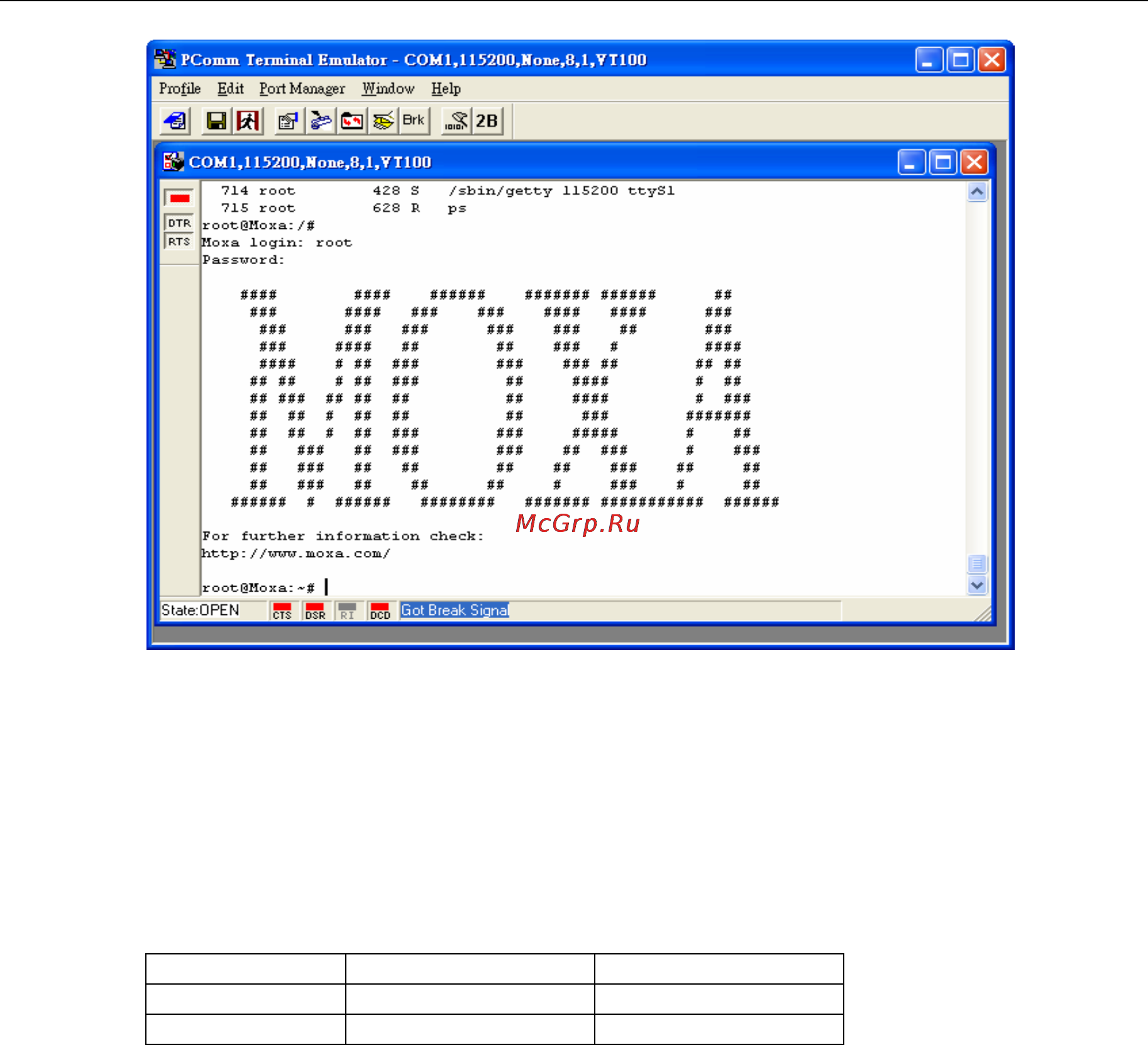

To log in, type the Login name and password as requested. The default values are both root:
Login: root
Password: root
Telnet Console
If you know at least one of the two IP addresses and netmasks, then you can use Telnet to connect
to the IA240/241’s console utility. The default IP address and Netmask for each of the two ports
are given below:
Default IP Address Netmask
LAN 1
192.168.3.127 255.255.255.0
LAN 2
192.168.4.127 255.255.255.0
Use a cross-over Ethernet cable to connect directly from your PC to the IA240/241. You should
first modify your PC’s IP address and netmask so that your PC is on the same subnet as one of
IA240/241’s two LAN ports. For example, if you connect to LAN 1, you can set your PC’s IP
address to 192.168.3.126 and netmask to 255.255.255.0. If you connect to LAN 2, you can set
your PC’s IP address to 192.168.4.126 and netmask to 255.255.255.0.
To connect to a hub or switch connected to your local LAN, use a straight-through Ethernet cable.
The default IP addresses and netmasks are shown above. To login, type the Login name and
password as requested. The default values are both root:
Login: root
Password: root
