IA3341 Hardware User's Manual Hardware Introduction

2-3

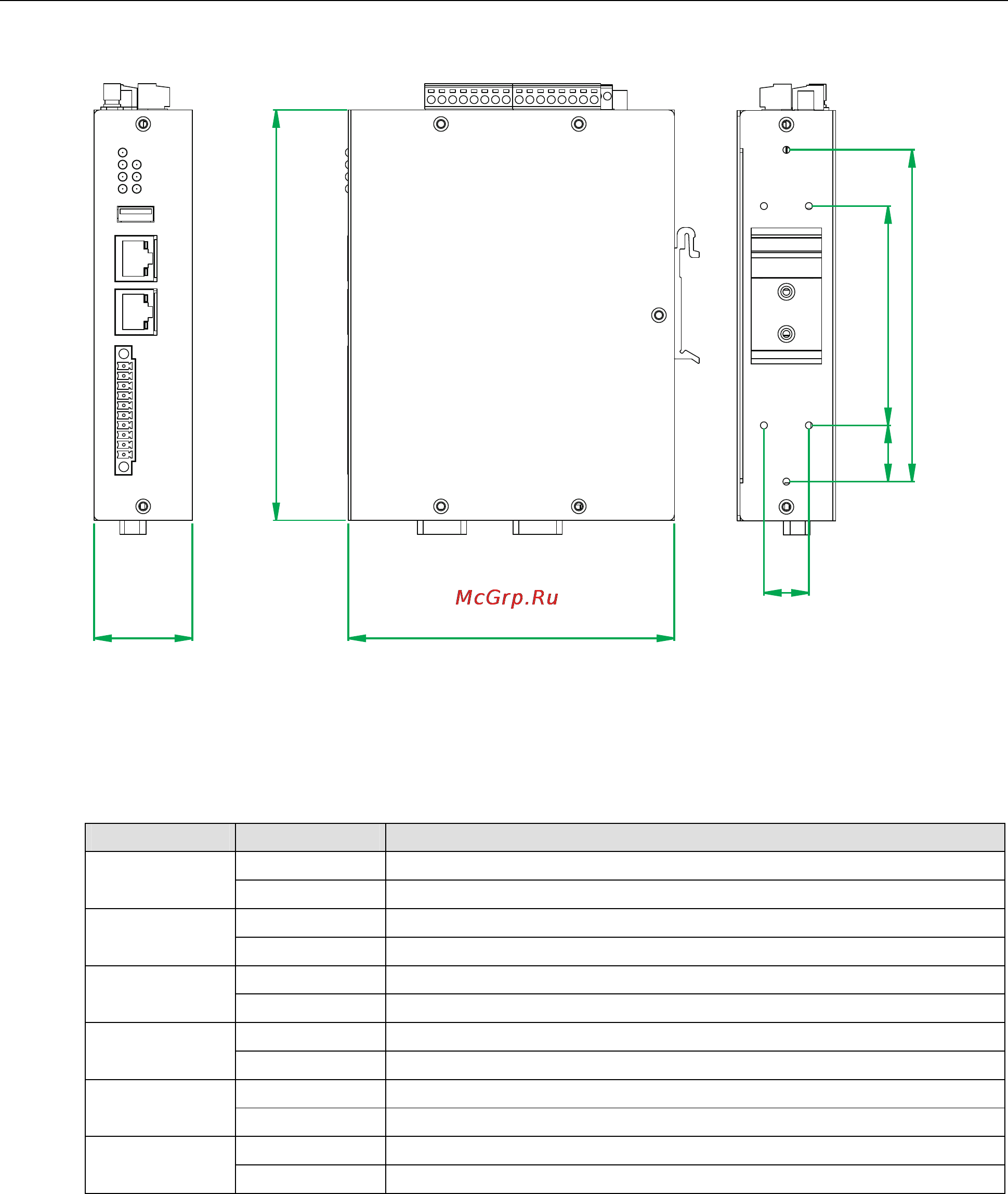

Dimensions

116

146

118

LED Indicators

The IA3341 has 11 LED indicators on the front panel. Refer to the following table for information about each

LED.

LED Name Color Meaning

Green Power is ON. Power

Off No power is being received, or power error exists.

Green OS is ready and functioning normally (after booting up). Ready

Off OS is not ready.

Green Data is being written to or read from the storage unit. Storage

Off Storage unit is idle.

Orange 10 Mbps Ethernet connection LAN1, LAN2

Green 100 Mbps Ethernet connection

Green Serial port is transmitting TX data to the serial device. P1-P2 (TX)

Off Serial port is not transmitting TX data to the serial device.

Orange Serial port is receiving RX data from the serial device. P1-P2 (RX)

Off Serial port is not receiving RX data from the serial device.

Reset to Default Button

Press and hold the Reset Button continuously for at least 5 seconds to load the factory default

configuration. After the factory default configuration has been loaded, the system will reboot automatically.

The Ready LED will blink on and off for the first 5 seconds, and then maintain a steady glow once the system

has rebooted.

We recommend that you only use this function if the software is not working properly and you want to load

factory default settings. The Reset to Default functionality is not designed to hard reboot the IA3341.
