IA3341 Hardware User's Manual Hardware Introduction

2-4

ATTENTION

Reset to Default preserves user’s data

The Reset to Default function will NOT format the user directory and erase the user’s data. Using the Reset

to default function will only load the configuration file. The rest of the user’s data stored in the Flash ROM will

remain intact.

Real Time Clock

The IA3341’s real time clock is powered by a lithium battery. We strongly recommend that you do not replace

the lithium battery without help from a qualified Moxa support engineer. If you need to change the battery,

contact the Moxa RMA service team.

WARNING

There is a risk of explosion if the battery is replaced by an incorrect type.

Placement Options

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate is already attached to the product’s casing. To attach the IA3341 to

a DIN-Rail, make sure that the stiff metal spring is facing the top of the IA3341, as shown in the following

figures.

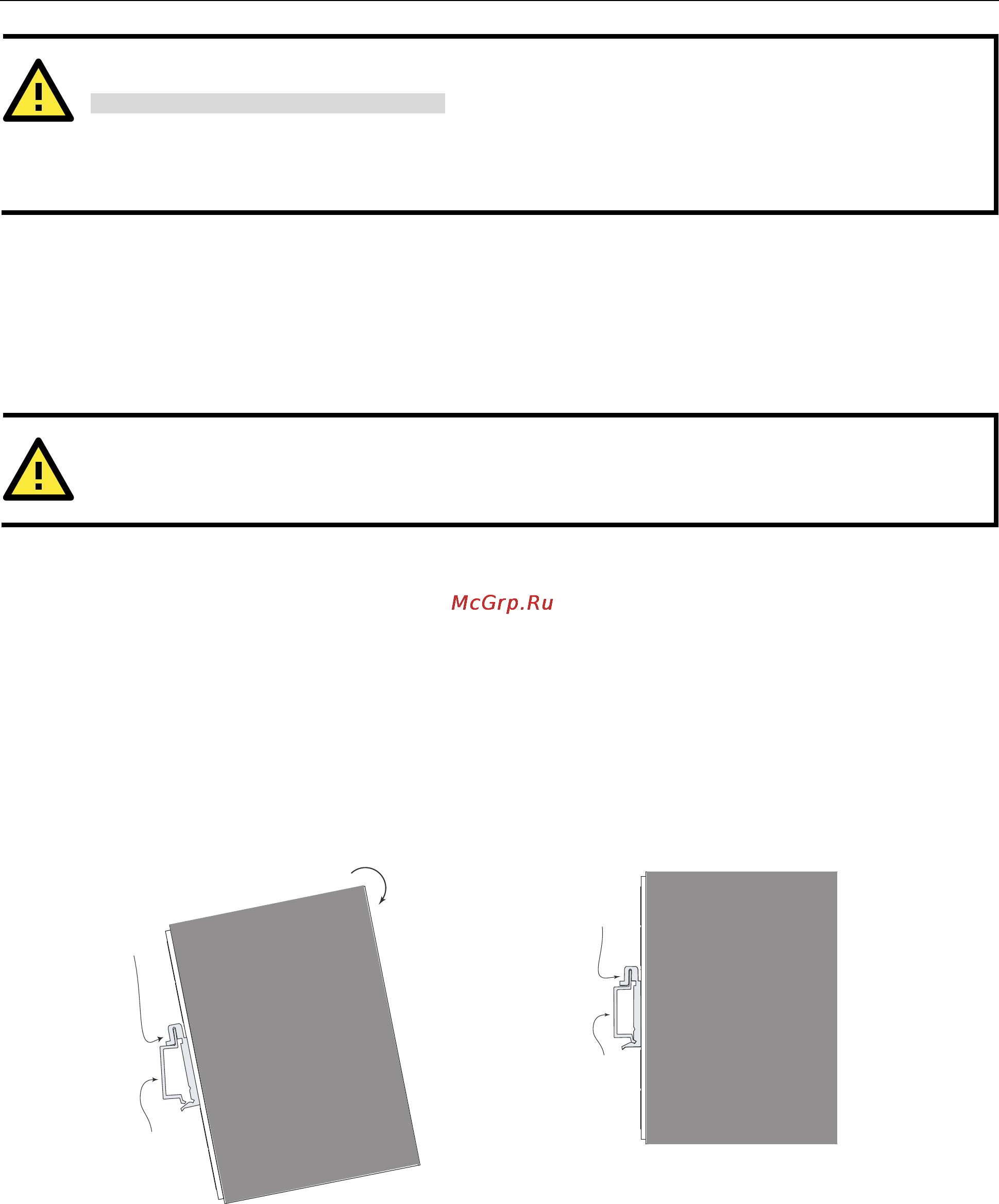

STEP 1: Insert the top of the DIN-Rail into the

slot just below the stiff metal spring.

STEP 2: The DIN-Rail attachment unit will snap

into place as shown.

metal

spring

DIN-Rail

metal

spring

DIN-Rail

To remove the IA3341 from the DIN-Rail, simply reverse Steps 1 and 2.
