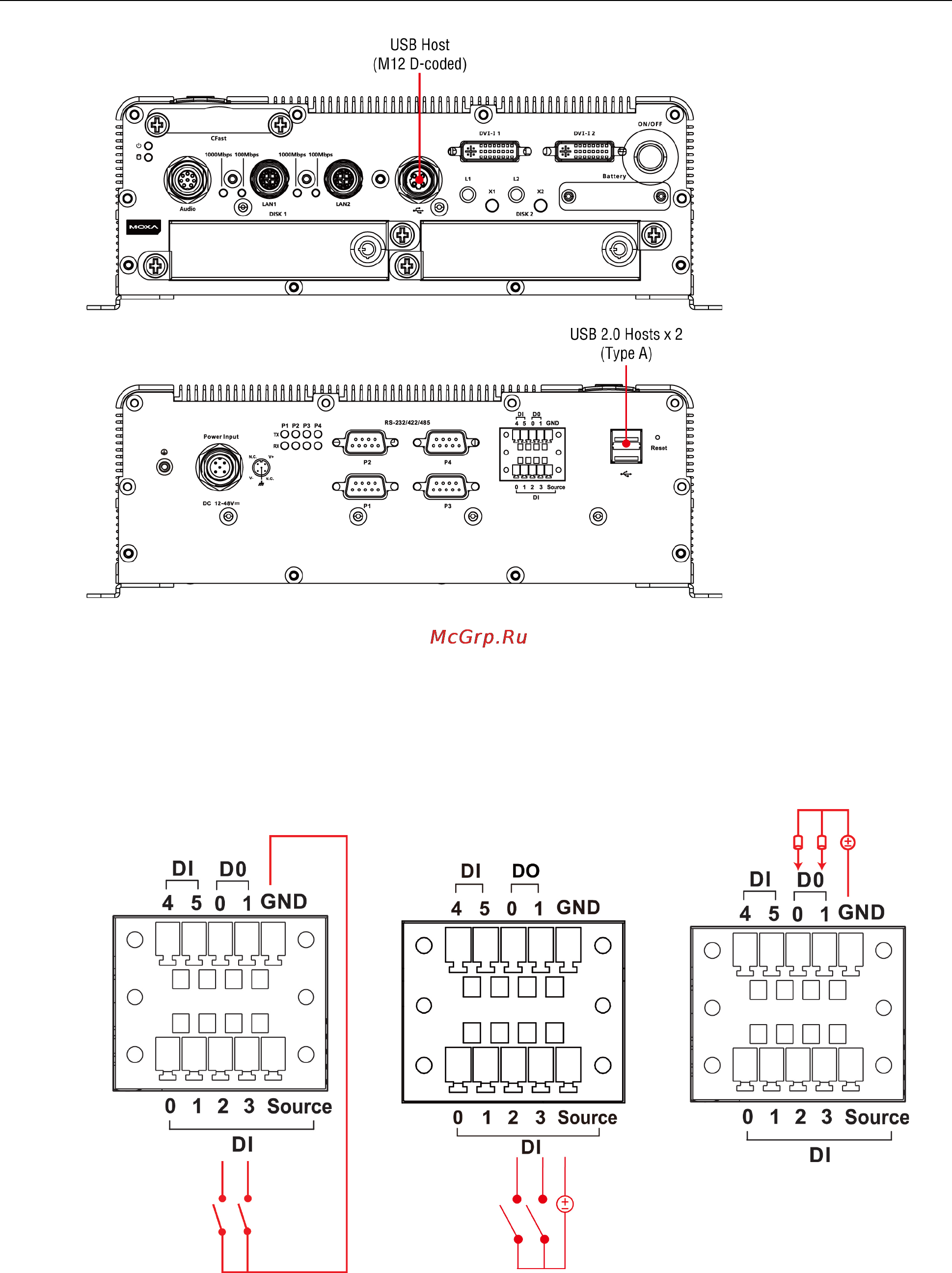

V2416A Hardware Hardware Connection Description
3-8
DI/DO
The V2416A comes with a 6-ch digital input and a 2-ch digital output that connect through a terminal block
connector. The pin assignments and wiring methods are shown below.
DI Wiring: Dry Contact DI Wiring: Wet Contact DO Wiring: Dry Contact
