V2416A Hardware BIOS Setup
4-4
Boot Configuration

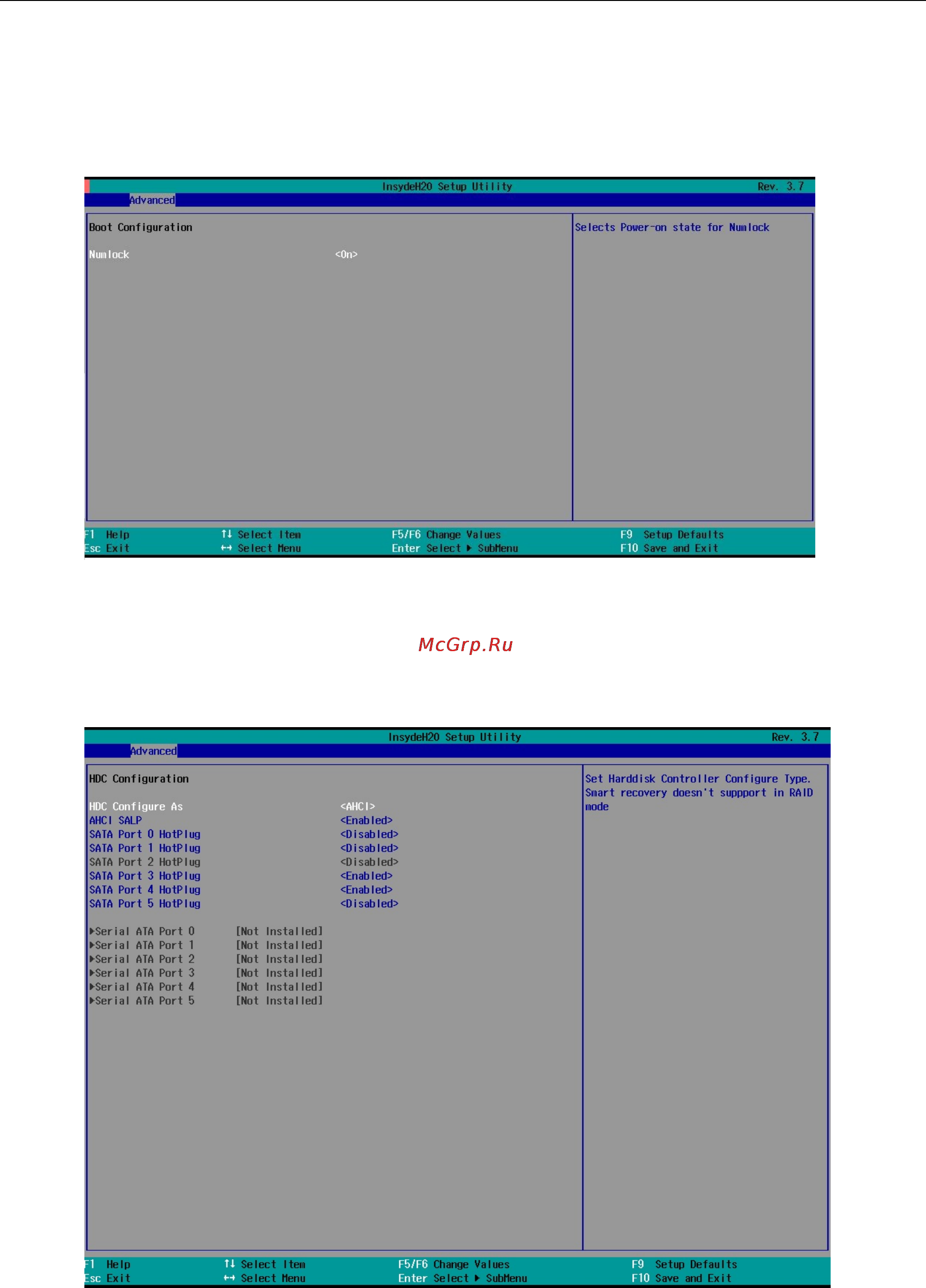

This screen allows you to configure the initial status of the Numlock key when the computer boots up.
Options: On (default), Off
HDC Configuration
The host drive controller can be configured in IDE or AHCI (default) mode.
When you select the AHCI mode, the following screen appears.
