V2416A Hardware BIOS Setup
4-14
Hard Disk Drive/USB Drive

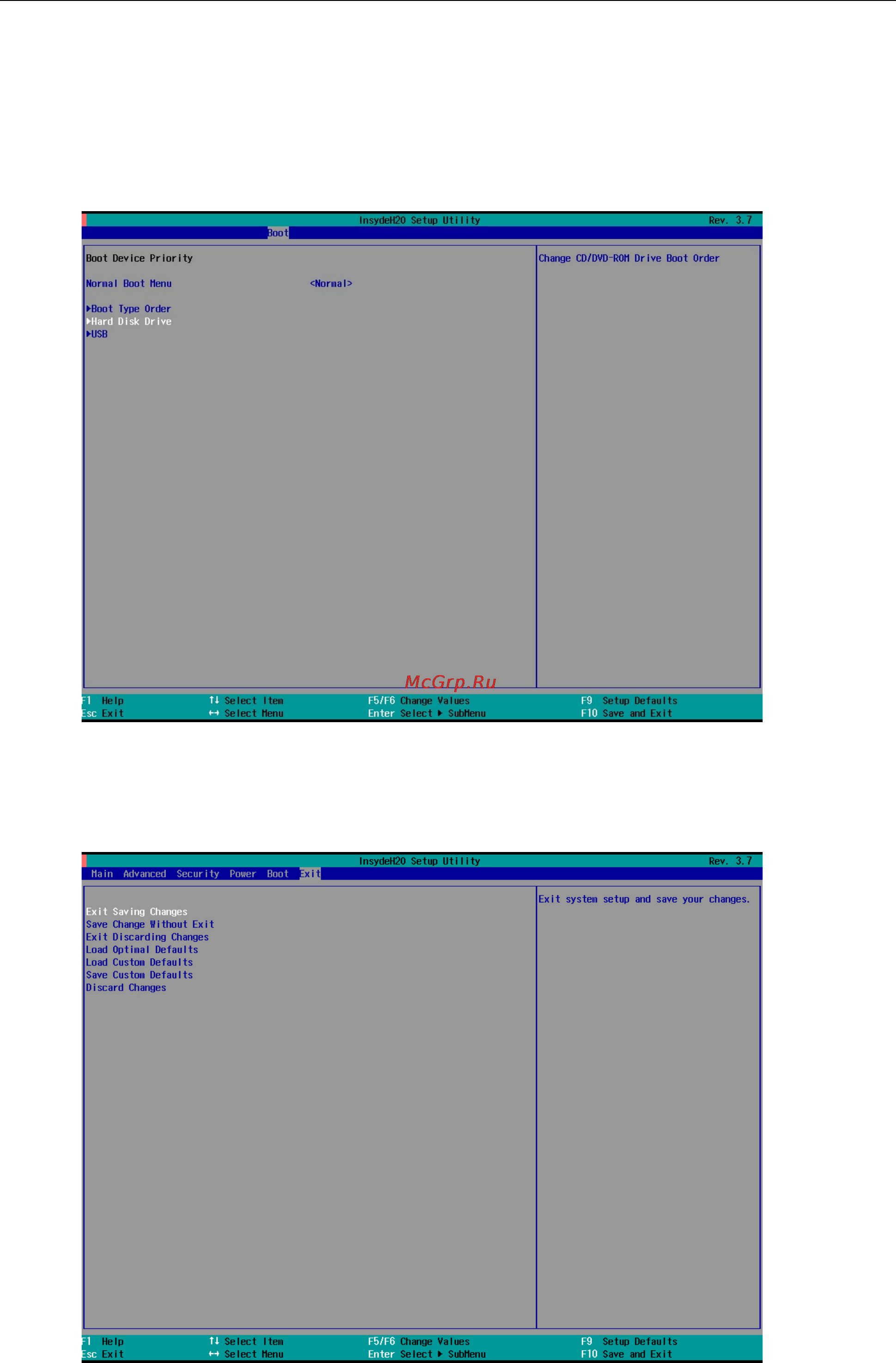

This setting allows you to view the installed devices, such as hard disk drives, USB drives, and CD-ROMs. For
example, if you have inserted a USB drive into the computer, the USB drive entry is listed here.
You can view and select the boot order for the same type of storage devices. For example, if you have two hard
drives connected to the V2416A, you can specify which of the two drives boots first, and which boots second.
Exit Settings
The screen shows the various options to exit from the BIOS setup utility.
