V2416A Hardware Hardware Connection Description
3-10

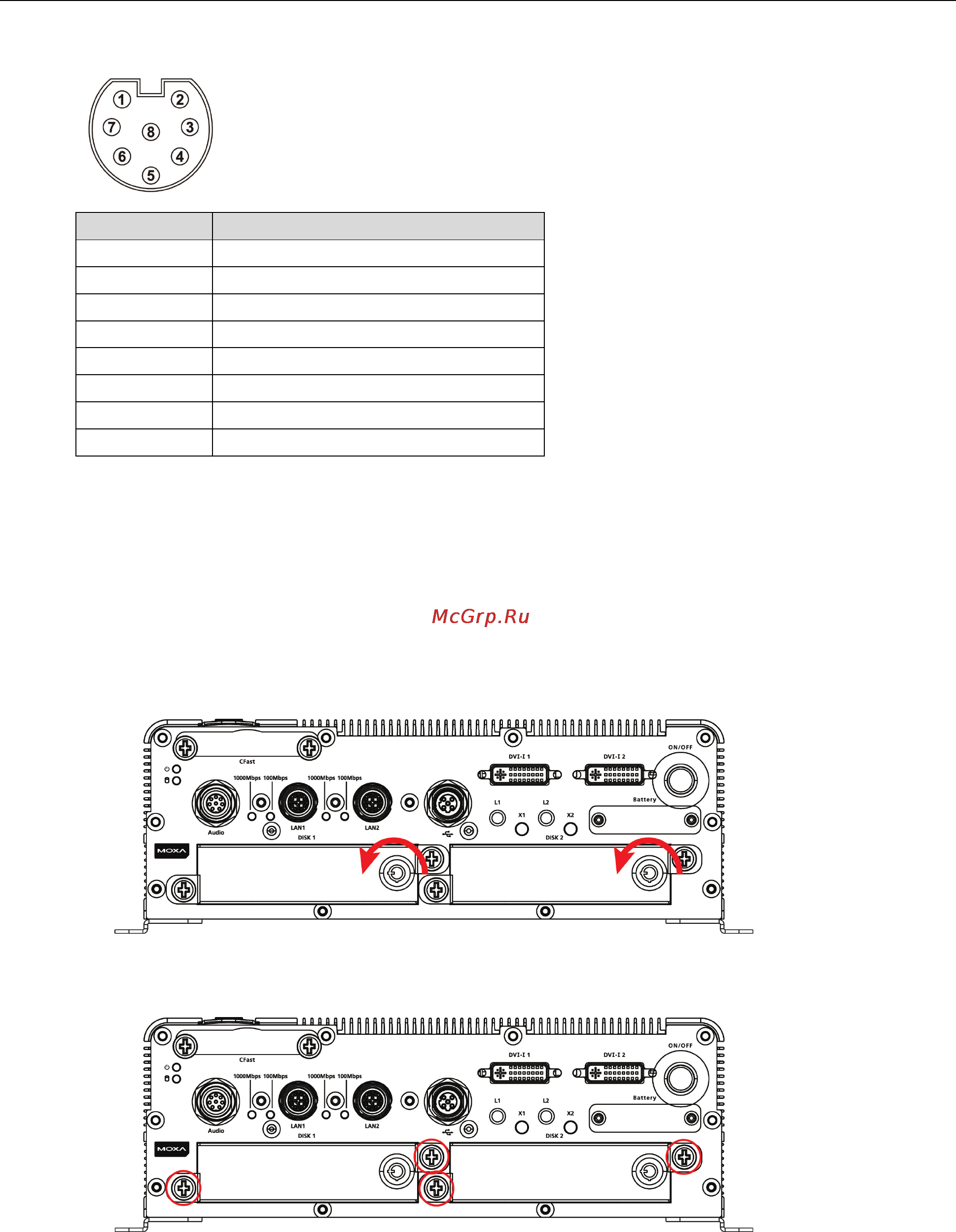

The following table lists the audio connector pin assignments.
Pin No. Audio
1 Line in – Right
2 GND
3 Line in – Jack Detect
4 Line in – Left
5 Line out – Left
6 Line out – Jack Detect
7 Line out – Right
8 GND
Installing a Storage Drive
The V2416A computers come with two storage drive trays. To install a storage drive in the V2416A computer,
attach a storage drive, such as hard disk drives (HDD) or solid-state drives (SDD), to a drive tray.
To install a storage disk, follow these instructions:
1. Disconnect the V2416A from its power source or enable the hot-swap feature.
2. Turn the protection key counter-clockwise to unlock.
3. Remove a tray from the storage drive slot by loosening the thumbscrews as indicated in the following
figure.
4. Place the four rubber yellow washers on the tray as shown in the following figure. Soft washers and screws
are included in the V2416A package.
