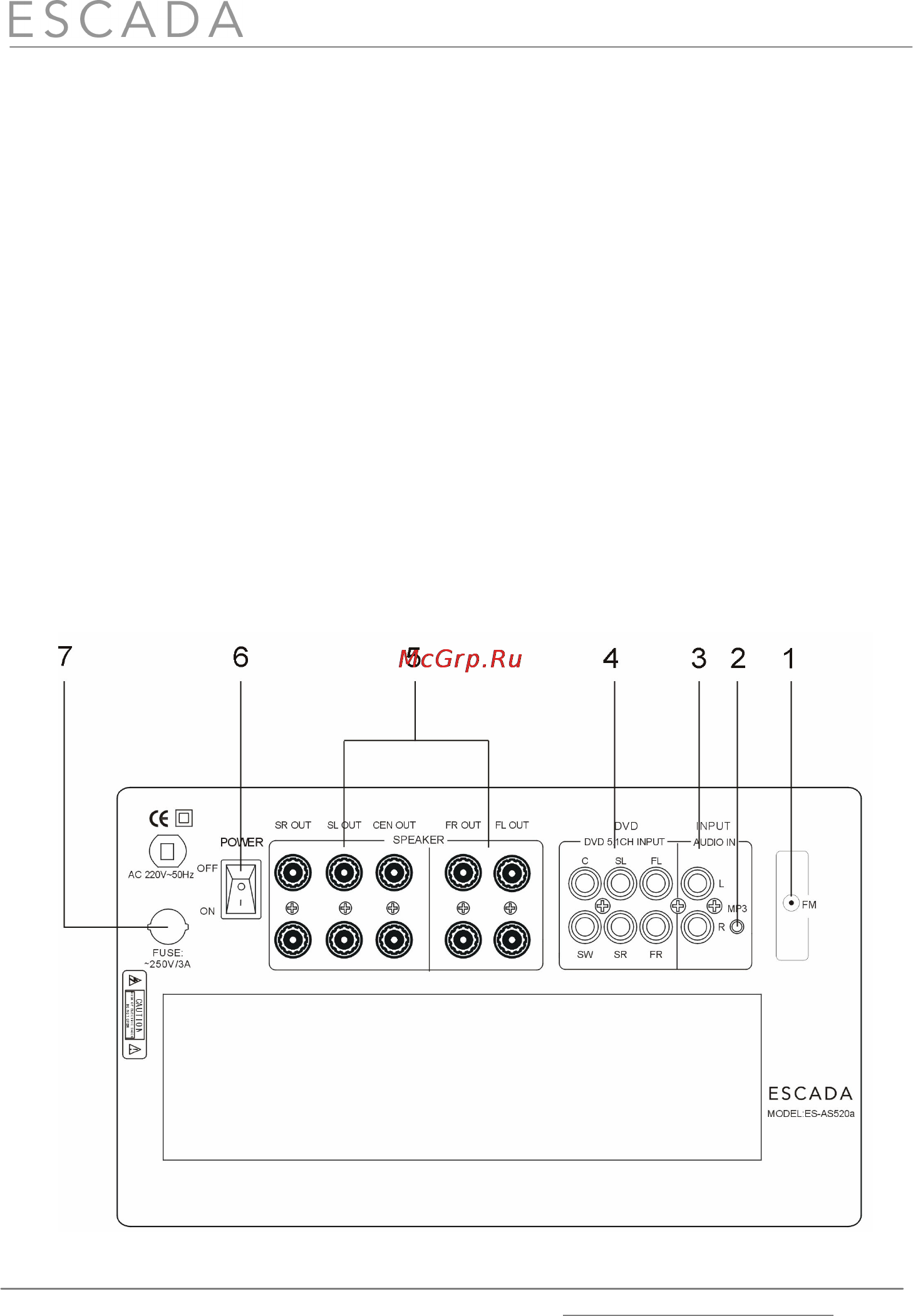

Rear panel of the subwoofer

1. FM antenna input (optional)

2. 3.5mm jack input

3. Input jacks for connecting of external equipment 2.0

R – input jack for connecting right stereo channel

L – input jack for connecting left stereo channel

4. Input jacks for connecting of external equipment 5.1

FR – input jack for connecting right front channel

FL – input jack for connecting left front channel

SW – input jack for connecting subwoofer

C – input jack for connecting central channel

SR – input jack for connecting right rear channel

SL – input jack for connecting left rear channel

5. Output jacks for connecting speakers to subwoofer.

SR OUT (+/-) – input jacks for connecting right rear speaker

SL OUT (+/-) – input jacks for connecting left rear speaker

FR OUT (+/-)– input jacks for connecting right front speaker

FL OUT (+/-)– input jacks for connecting left front speaker

CEN OUT (+/-) – input jacks for connecting central speaker

6. Power On/Off button

7. Fuse
