V2616A Hardware Manual Hardware Connection Description
3-13

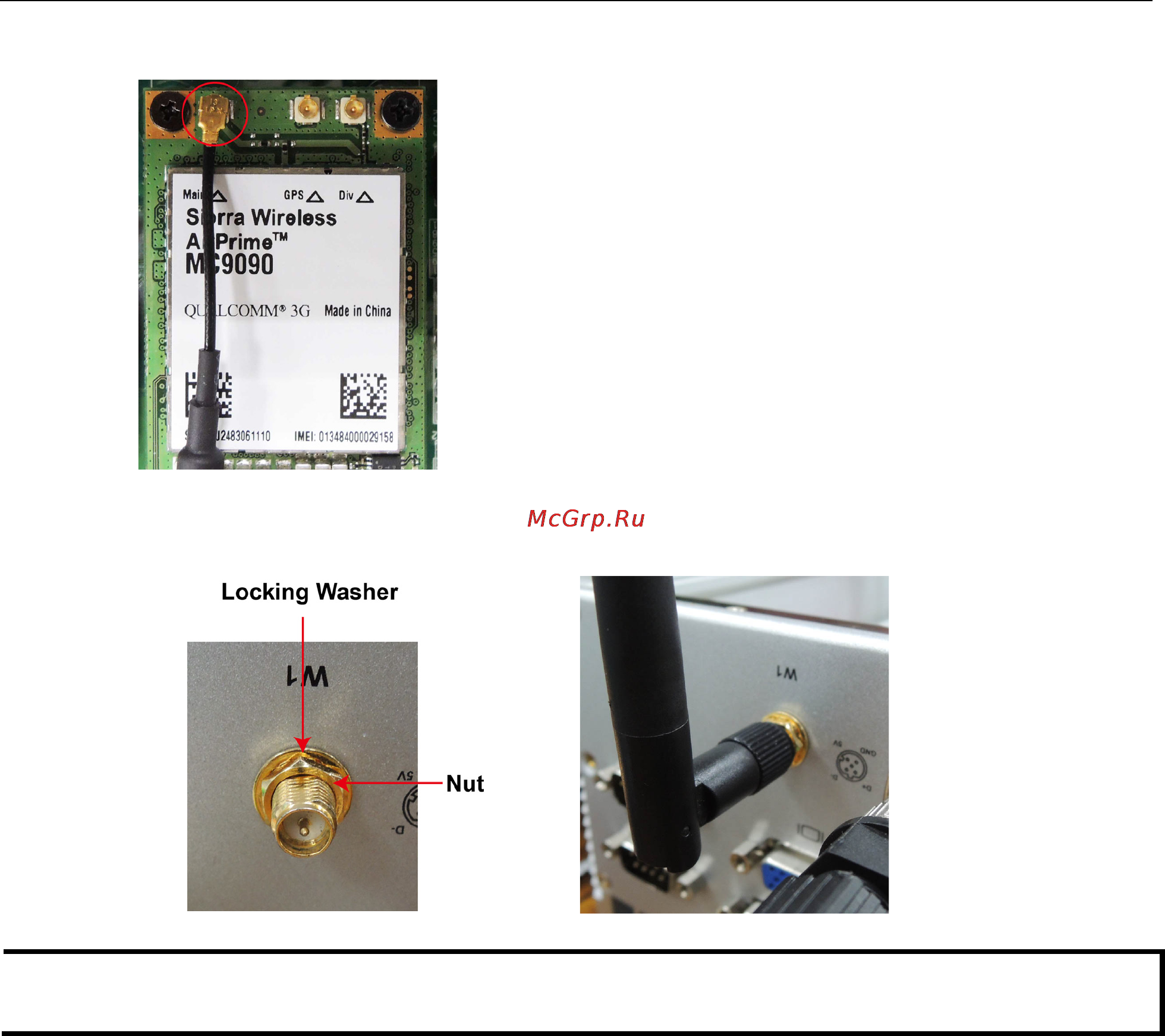

4. Connect the cellular antenna cable to the module.
5. Pass the connector of the antenna cable through the antenna hole on the rear panel of the computer. You
may use either the W1 or W2 hole. Pass the locking washer over the outer end of the connector first, and
then fasten the nut to lock the connector against the face of the computer.
NOTE The cellular module, cable, connector, and antenna are not included in the product package, and must be
purchased separately.
