V2616A Hardware Manual BIOS Setup
4-10

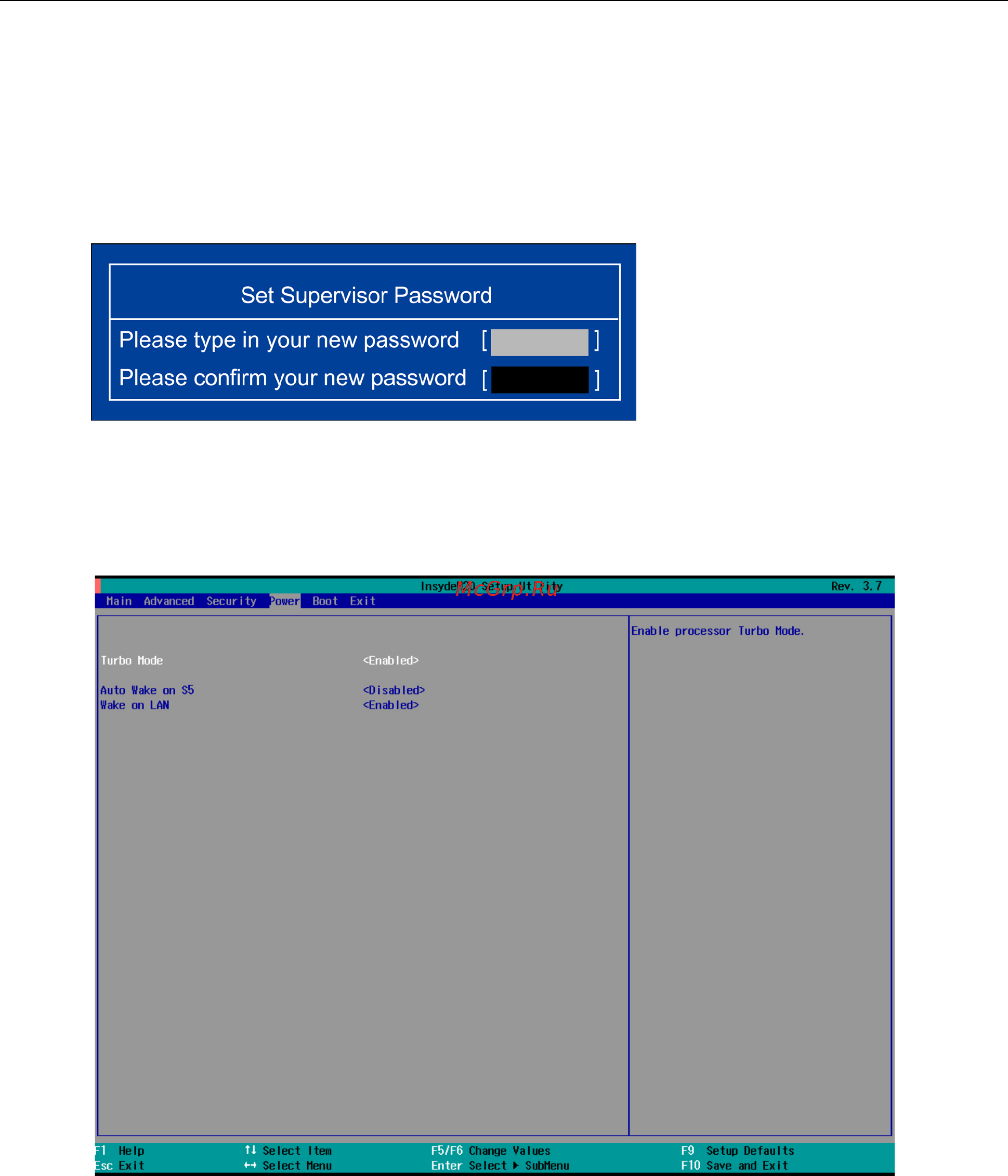

Set Supervisor Password
This item allows you set the supervisor password. Type in the new password, and then retype the password
again to confirm.
To delete the password, enter Set Supervisor Password using the existing password. Next, leave the new
password fields blank, and then press enter.
Power Settings
The section allows you to configure power settings.
Turbo Mode
This item allows you to enable or disable the Intel CPU Turbo Boost technology.
Options: Enabled (default), Disabled.
Auto Wake on S5
This item allows you to configure the computer to wake from S5 status. S5 stands for Soft Off, where the PSU
remains engaged but power to all other parts of the system is cut. Auto-wake on S5 schedules a soft-reboot at
certain periodic times, which can be specified in the BIOS.
