V2616A Hardware Manual BIOS Setup
4-2
Entering the BIOS Setup

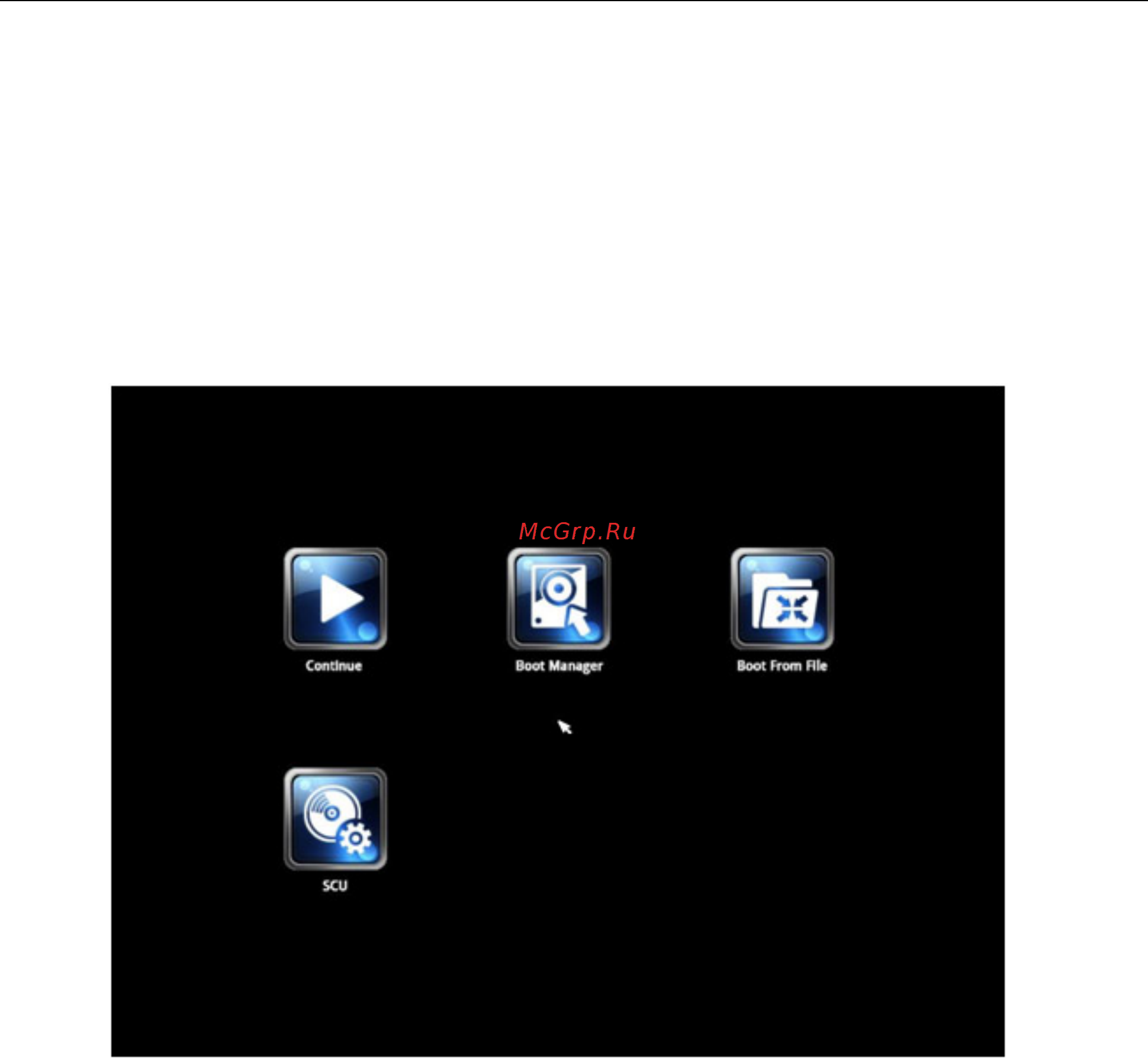

To enter the BIOS setup utility, press the F2 key while the system is booting up. The main BIOS Setup screen
will appear. You will see four options:
Continue: Continue to boot up
Boot Manager: Select the device to boot up
Boot From File: Select the UEFI boot up file
SCU: Enter the BIOS configuration.
Click SCU to enter the BIOS configuration.
When you click SCU, a basic description of each function key will be listed at the bottom of the screen. Refer to
these descriptions to learn how to use them.
F1: General Help
F5/F6: Change Values
F9: Setup Defaults
F10: Save and Exit
↑↓
: Select Item
←
→
: Select Menu
ESC: Exit
ENTER: Select or go to Submenu.
