V2616A W7E Series Moxa SynMap Package
7-31

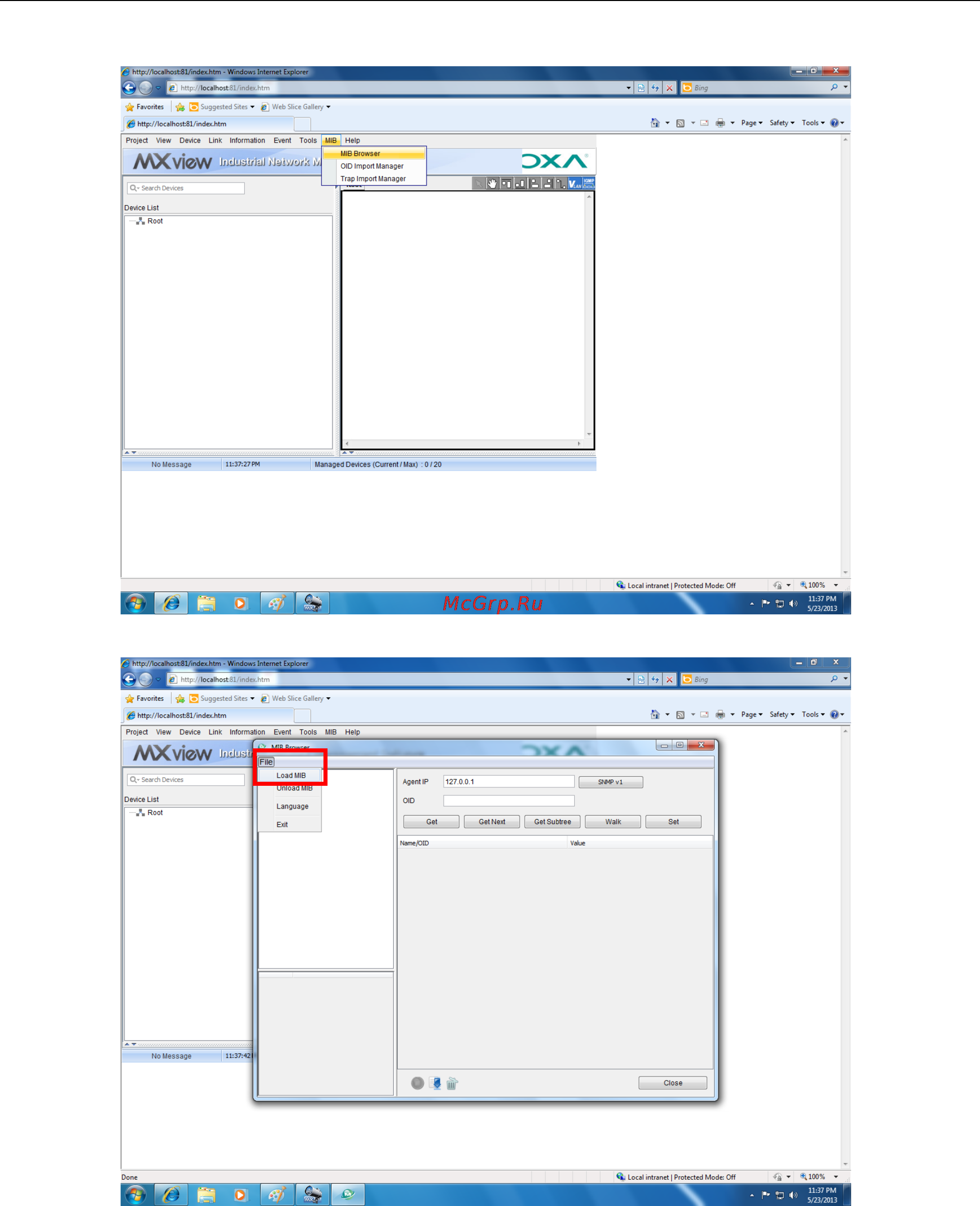

5. Select MIB MIB Browser.
6. In the MIB Browser window, select File
Load MIB.
