V2616A W7E Series System Recovery
9-2
Overview
In this section, we describe how to prepare your computer for recovery in the event of system instability. You
can perform two types of system recovery, from one of two system images: a clean factory default image, or
a user-generated image created from a fully configured, fully set up system.
Before you implement a system recovery, you should prepare the system environment in advance.
Setting Up the Recovery Environment
To set up the recovery environment on a V2616A computer, prepare a USB drive that has at least 4 GB of
memory, and a copy of the recovery suite. The procedure described in this chapter is summarized below:
1. First, the recovery programs and system image file will be copied over to the USB drive, and the drive will
be set up as a live-drive system, with an ISO image of the boot environment.
2. The system will be re-booted, and the BIOS will be manually configured to boot the recovery system from
the USB port.
3. An image of the current software system will then be created on the USB drive. The recovery environment
will use this image when restoring the system.
4. The system will be re-booted again, and the BIOS returned to its original state.
Setting Up a Factory Default Recovery Image
Step 1: Prepare the USB drive

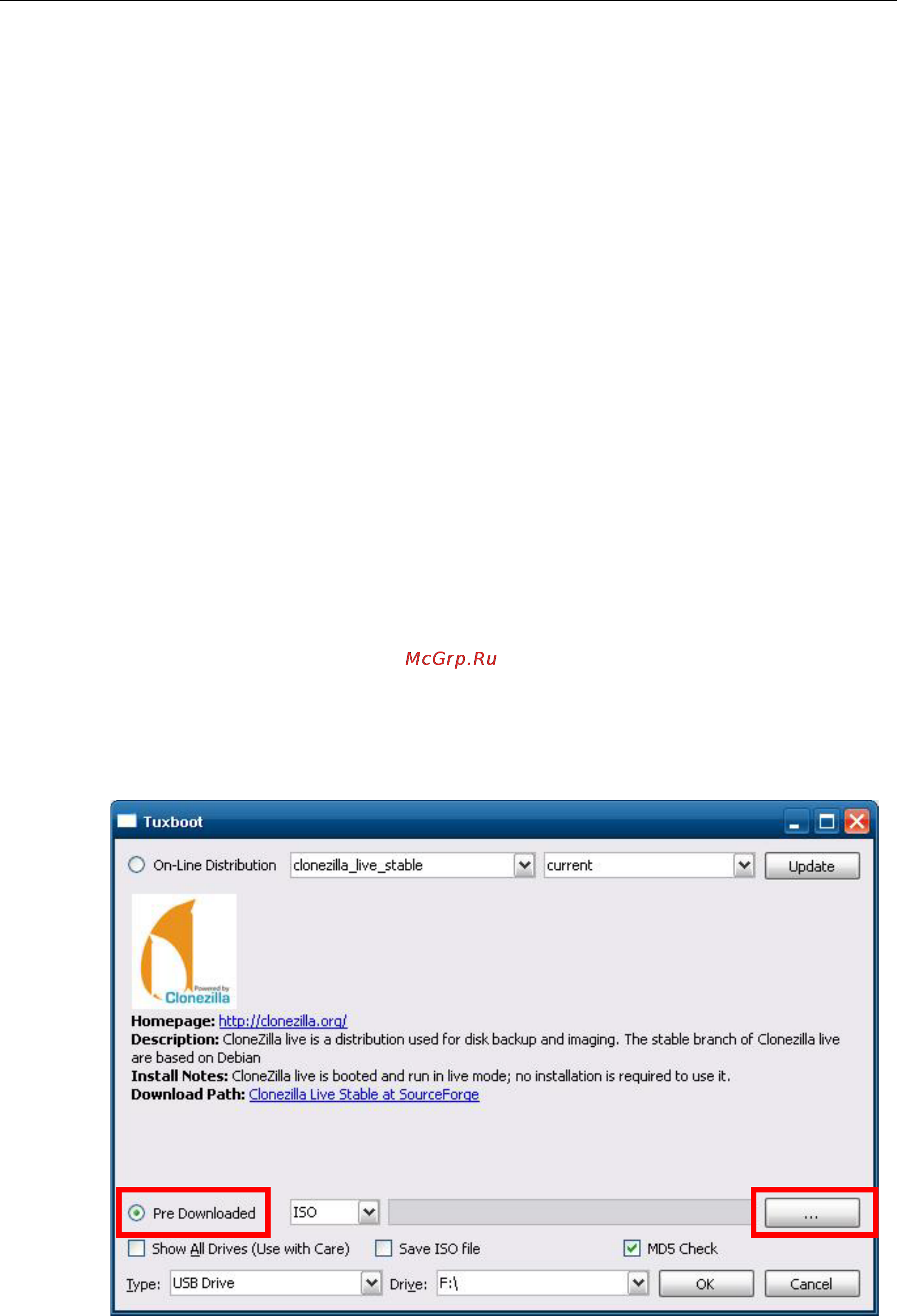

1. Load the software DVD that came with your V2616A computer and execute tuxboot-windows-23.exe
from the software DVD\recovery\V2616A-W7E_Recovery folder. Select Pre-Downloaded, and click
the button marked with an ellipsis (…) to browse the file system and find the location of the boot
environment’s ISO image.
