V2616A W7E Series System Recovery
9-10

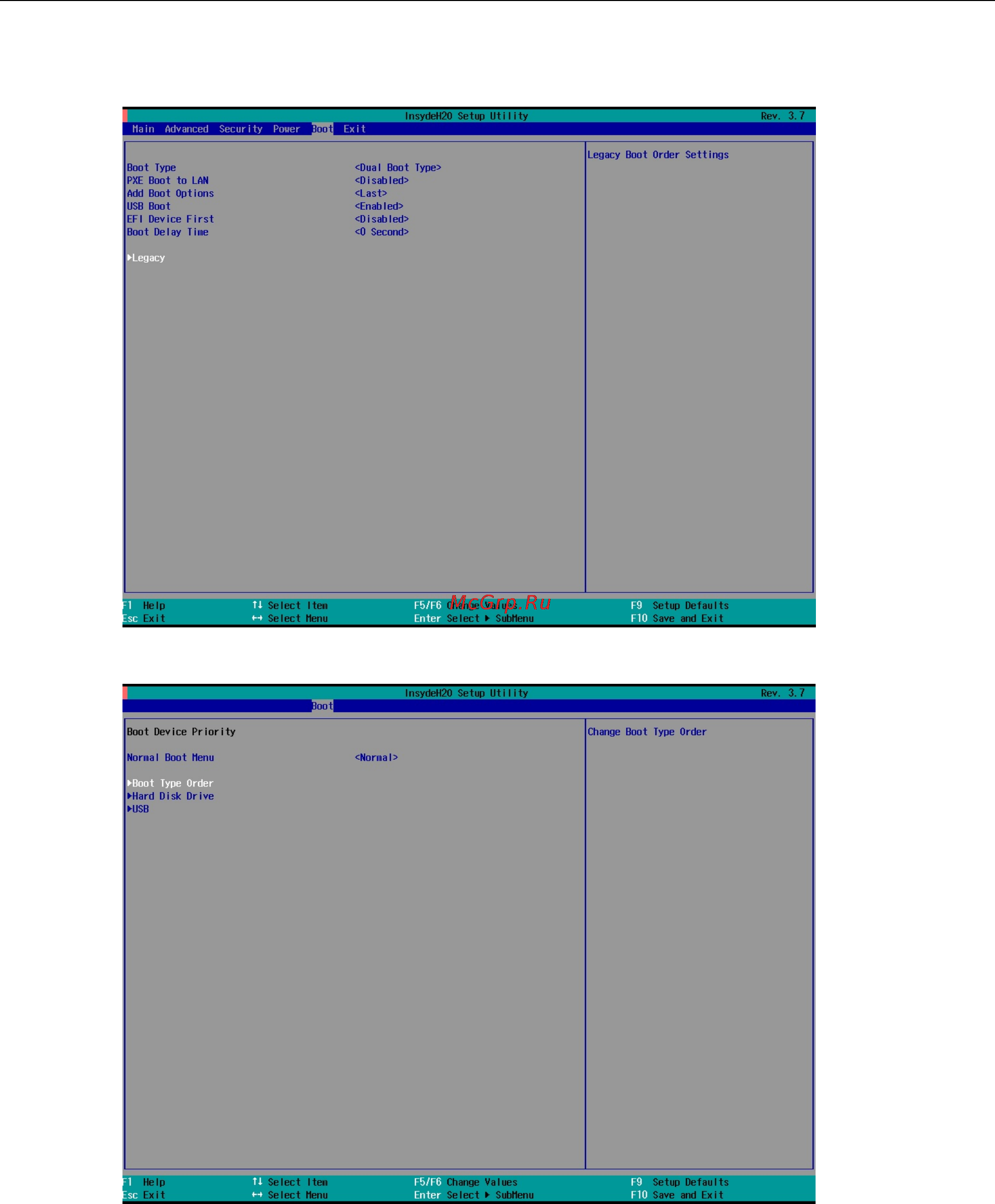

2. Use the left/right arrow keys to navigate to the Boot menu, and then press Enter.
3. Use the up/down arrows to navigate to the Legacy link, and then press Enter.
4. Use the up/down arrow keys to navigate to the Boot Type Order link, and then press Enter.
