V2616A W7E Series Examples
8-2
SerialInterface
1. Copy the following files from the product software DVD.
mxsp.dll: \DVDV2616A-W7E V1.0\examples\lib\mxsp\
sysinfo.dll: \DVDV2616A-W7E V1.0\examples\lib\mxsp\
sysinfo.sys: \DVDV2616A-W7E V1.0\examples\lib\mxsp\
mxGeneralIo.dll: \DVDV2616A-W7E V1.0\examples\lib\MxGeneralIo\
SerialInterface.exe: \DVDV2616A-W7E V1.0\examples\Release\
MxSer.reg: \DVDV2616A-W7E V1.0\examples\Release\
2. Execute MxSer.reg to create a registry for the serial interface.

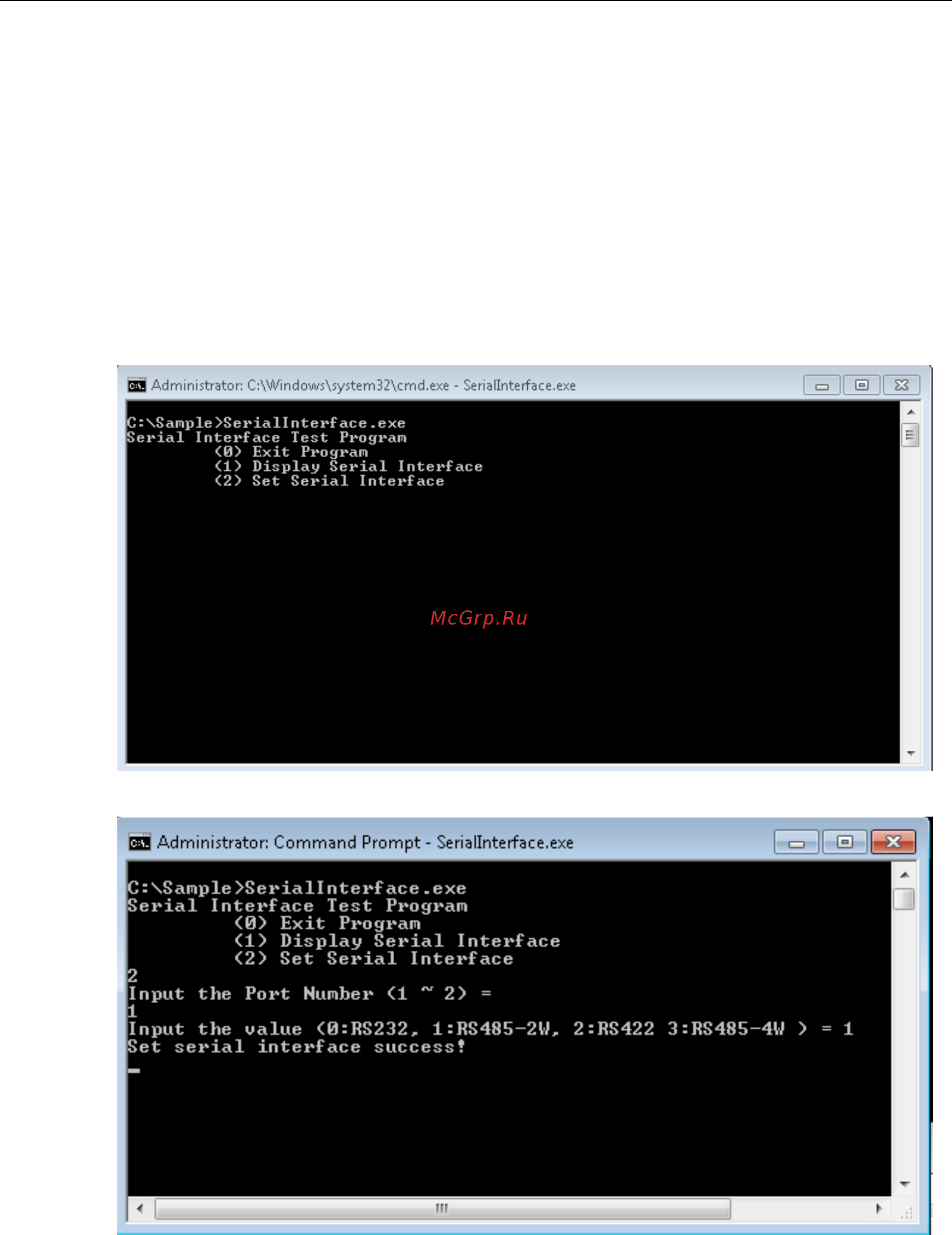

3. Execute SerialInterface.exe.
4. Type 2 to set the serial interface, and then follow the onscreen instructions.
