TC-6110 / Windows 7 System Recovery

6-5

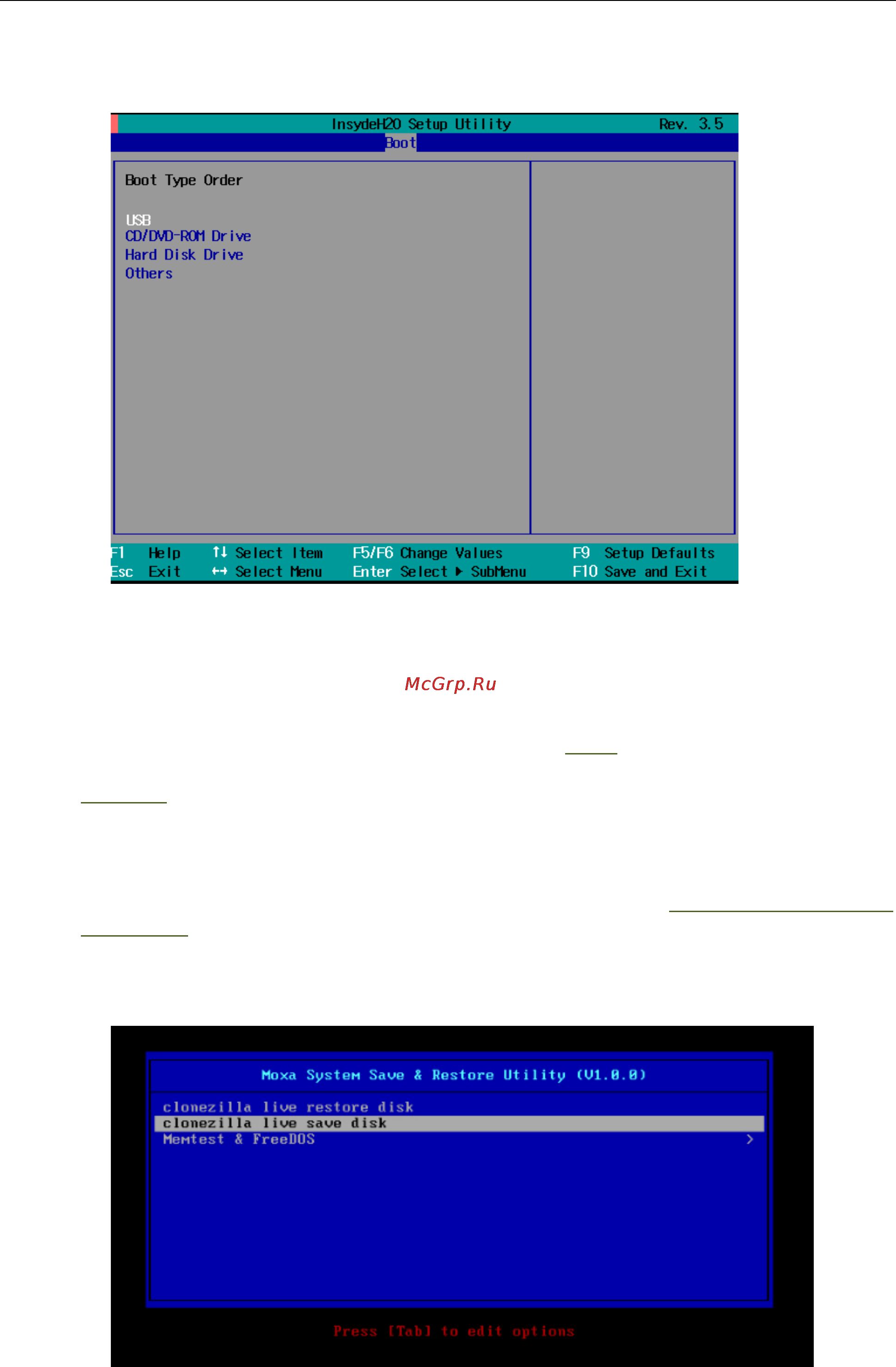

3. Use the arrow keys to highlight USB and then press the plus key (+) to move it to the first position, or (if

you want to take the long way around) select the other options above it and use the dash key [–] to move

them down.

4. Press F10 and then press Enter to save and exit the BIOS configuration interface. This should initiate the

next reboot, during which your system should now boot from the USB drive.

Step 3 (opt.): Create a Custom System Image

The instructions which follow are only to be used if you decided in Step 1 of this process to create a full copy

of an already-configured system. If you have not yet installed any software on your system, then return to

section 5b of Step 1: Preparing the USB Drive and follow the instructions to create a clean OS image.

Using this procedure, you will save to the USB drive a copy of the entire system as it is currently configured

to be used as a full system recovery image should the system crash. All files under

F:\home\partimag\

will be overwritten. Additionally, you should have already changed the BIOS settings to make the USB drive

the first boot priority. If you have not yet reset the boot priority, first return to

Step 2: Setting the BIOS to

Boot via USB, just above, and follow the directions there.

1. Once the system has launched and the TC-6110 has booted the recovery environment from the USB drive,

navigate to the entry Clonezilla Live Save Disk, and select it by pressing Enter. This will take you into the

recovery image creation environment, allowing you to copy your full system setup to the USB drive.
