V2416 Hardware Manual Hardware Connection Description
3-2
Installing the V2416

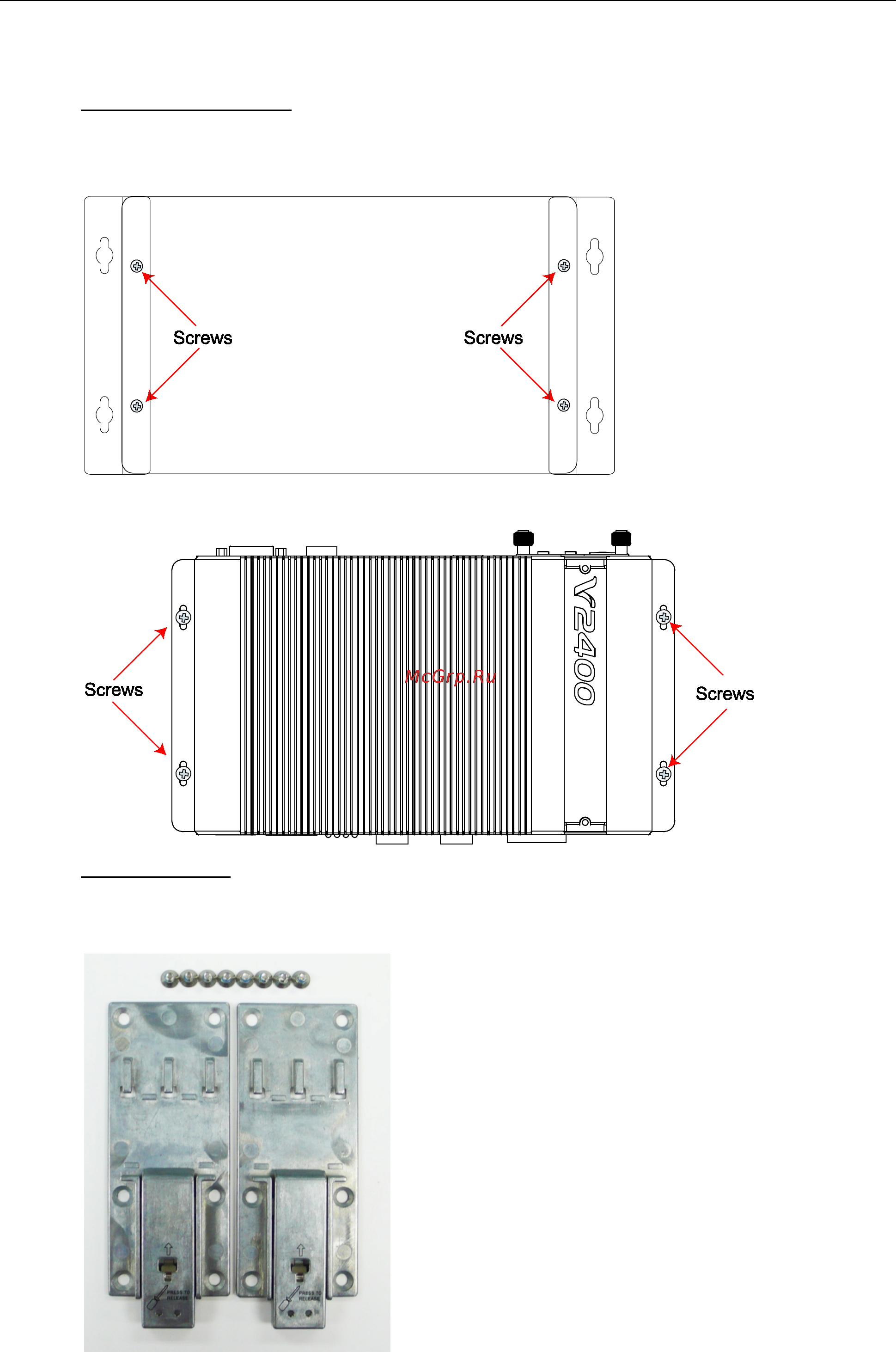

Wall or Cabinet Mounting
The V2416 comes with two metal brackets for attaching it to a wall or the inside of a cabinet.
Step 1: Use two screws for each bracket and attach the bracket to the rear of the V2416.
Step 2: Use two screws per side to attach the V2416 to a wall or cabinet.
Din-Rail Mounting
The V2416 can be installed on a DIN-rail with the optional DIN-rail kit. This DIN-rail kit must be purchased
separately. It includes two DIN-rail brackets and eight screws.
