V2416 Hardware Manual Hardware Connection Description
3-14

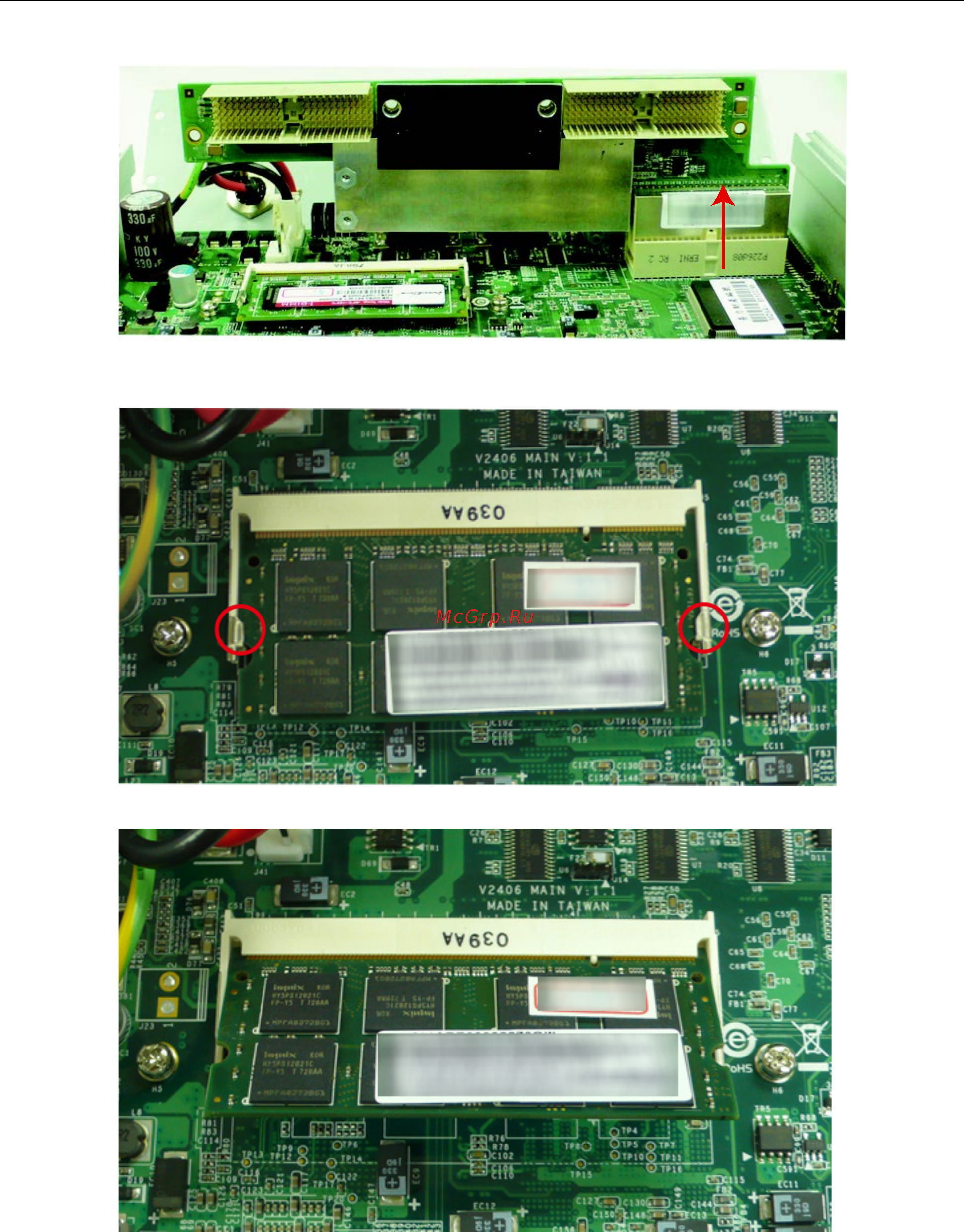

5. After removing the back cover of the computer, simply pull up the riser board.
6. Carefully remove the module by pushing the latches on both sides of the module, and then replace the new
module. Be sure to orient the module correctly.
7. Push down the module and make sure the latches are firmly in place.
8. When finished, replace the back cover of the V2416 computer.
