Upgrading the Memory Module

The V2416 embedded computers support one 200-pin DDR2 533 SODIMM module with up to 2 GB of memory.

One DDR2 SDRAM memory module is installed at the factory. To upgrade the DDR2 SDRAM memory module,

follow these instructions:

1. Disconnect the V2416 from the power source.

2. We suggest placing the V2416 upside down. Remove all the screws on the front and rear panels. Remember

to remove all screws from the DB9 connectors and the terminal blocks for digital input/output and the

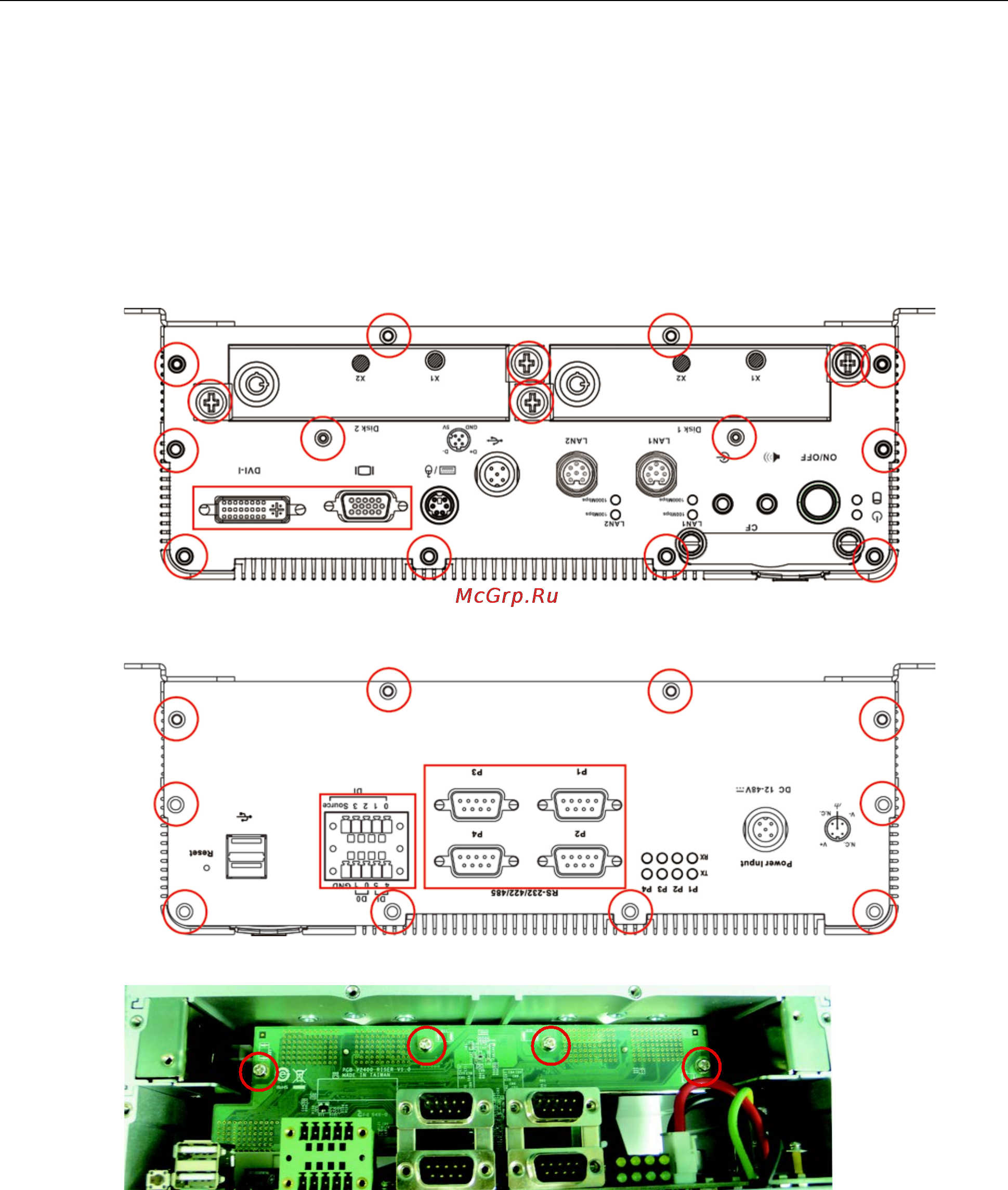

power. The screws for the CF card socket also need to be removed. See the following figures for details.

3. When you remove the rear cover, you also need to remove the four screws on the riser board.

4. Pull up the back cover of the computer; you will be able to see the memory module socket on the main

board.
