V2416 Hardware Manual Hardware Connection Description
3-3

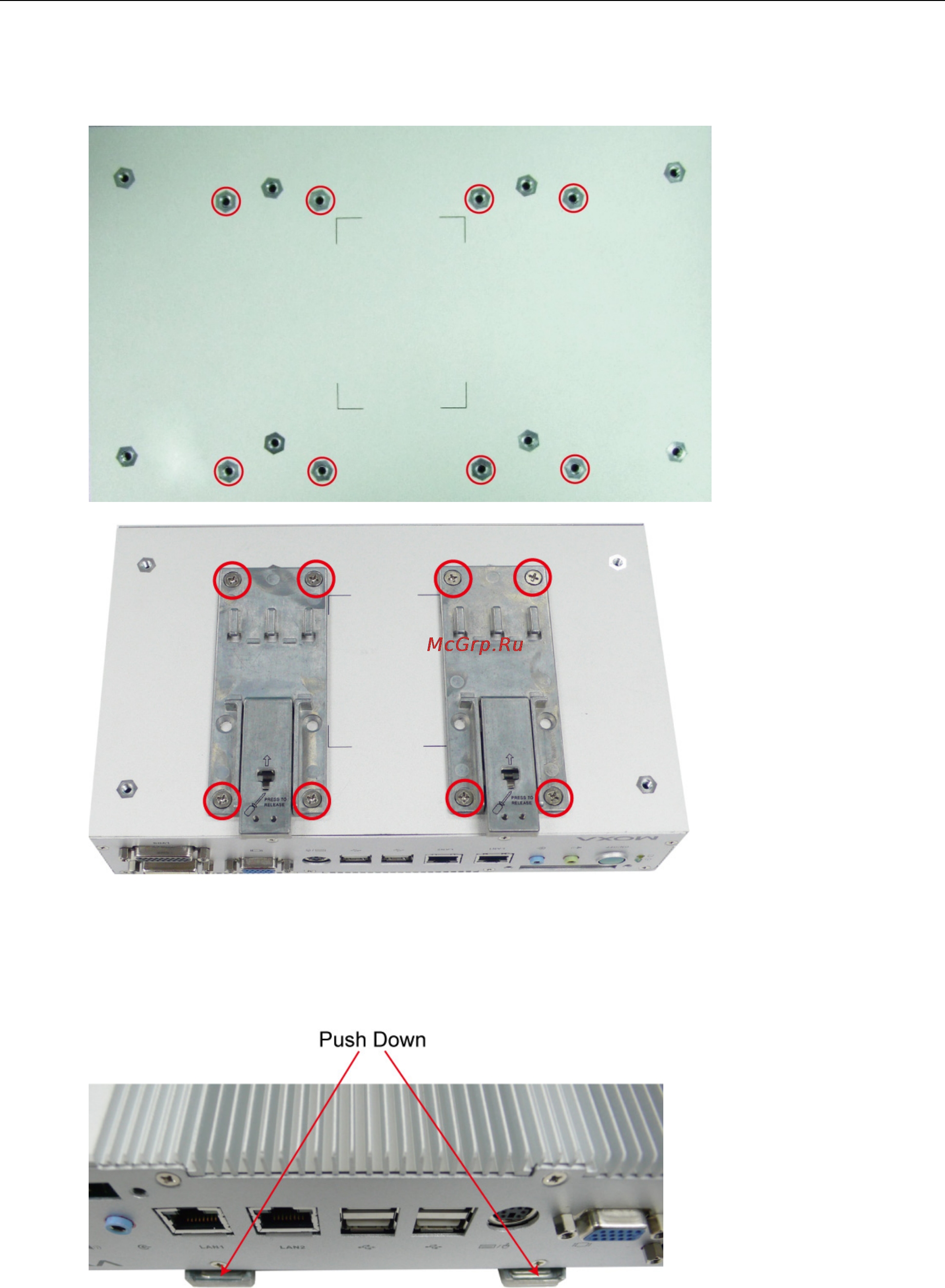

To attach the DIN-rail kit, turn the V2416 over to the bottom cover. Find the locations for the screws and place
the brackets on the cover. Please note that all eight screws must be firmly attached so that the computer can
be securely installed on the DIN-rail.
When the brackets are firmly attached with the screws, it can be installed on a DIN-rail
To release the DIN-rail kit, simply use a screwdriver to push down the lower part. Please use at least two
persons to do this step as once the DIN-rail kit is pushed down, the computer will be detached immediately
from the DIN-rail.
To re-install the computer on the DIN-rail, use a screwdriver to press the buckle so that it can be released. Now,
it can be re-installed on the DIN-rail.
