V2416 Linux User's Manual Software Configuration
2-6
Connecting from a Telnet Console
The V2416-LX computers come with two Ethernet ports named LAN1 and LAN2. The default IP addresses and
netmasks of the network interfaces are as follows:
Default IP Address Netmask
LAN 1 192.168.3.127 255.255.255.0
LAN 2 192.168.4.127 255.255.255.0
Before using the Telnet client, you should change the IP address of your development workstation so that the
network ports are on the same subnet as the IP address for the LAN port that you will connect to. For example,
if you will connect to LAN1, you could set your PC’s IP address to 192.168.3.126, and the netmask to
255.255.255.0. If you will connect to LAN2, you could set your PC’s IP address to 192.168.4.126, and the
netmask to 255.255.255.0.
Use a cross-over Ethernet cable to connect your development workstation directly to the target computer, or
use a straight-through Ethernet cable to connect the computer to a LAN hub or switch. Next, use a Telnet client

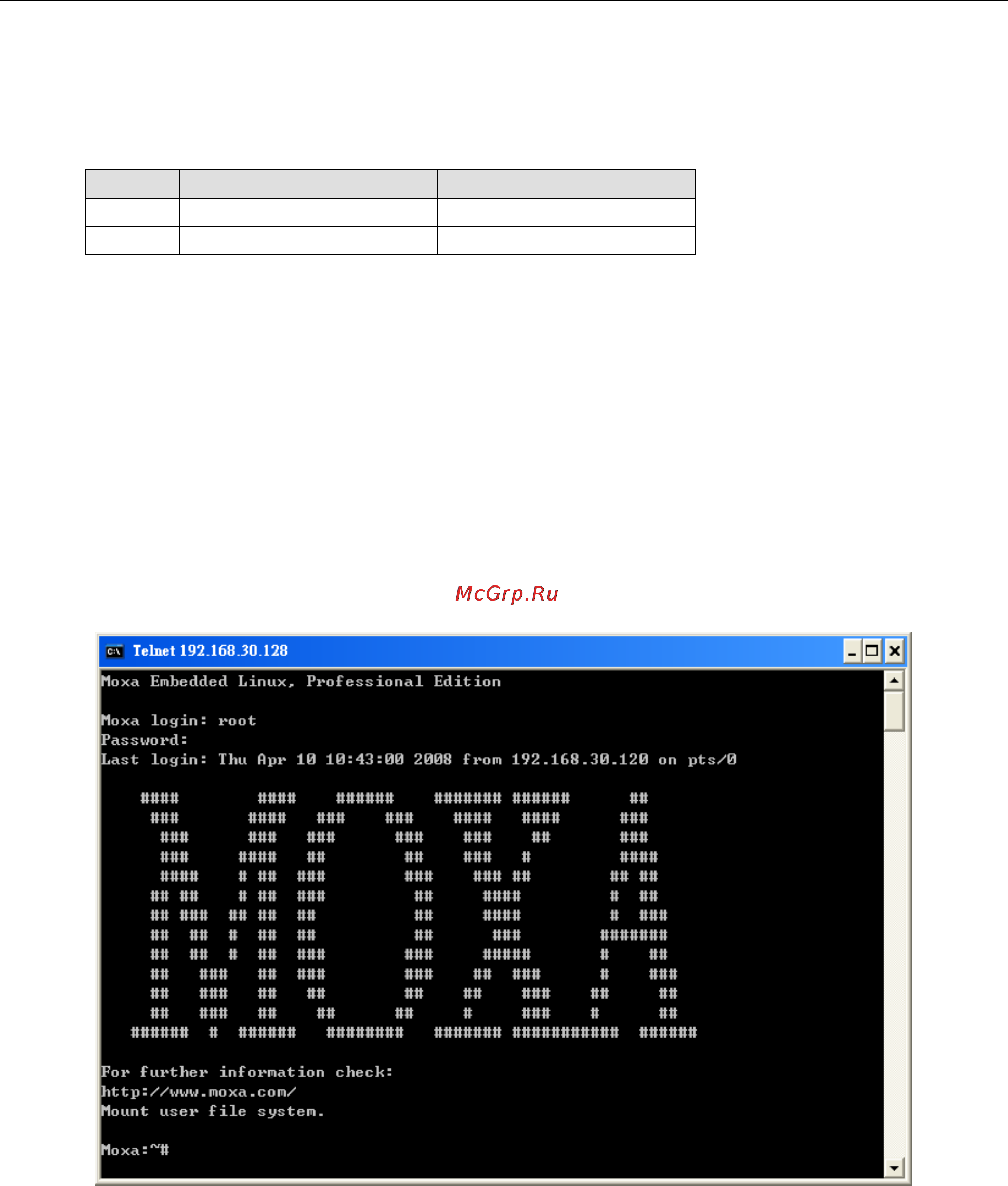

on your development workstation to connect to the target computer. After a connection has been established,
type the login name and password as requested to log on to the computer. The default values are both root.
Login: root
Password: root
Connecting from an SSH Console
The V2416-LX computers support an SSH console to offer users better network security compared to Telnet.
Windows Users
