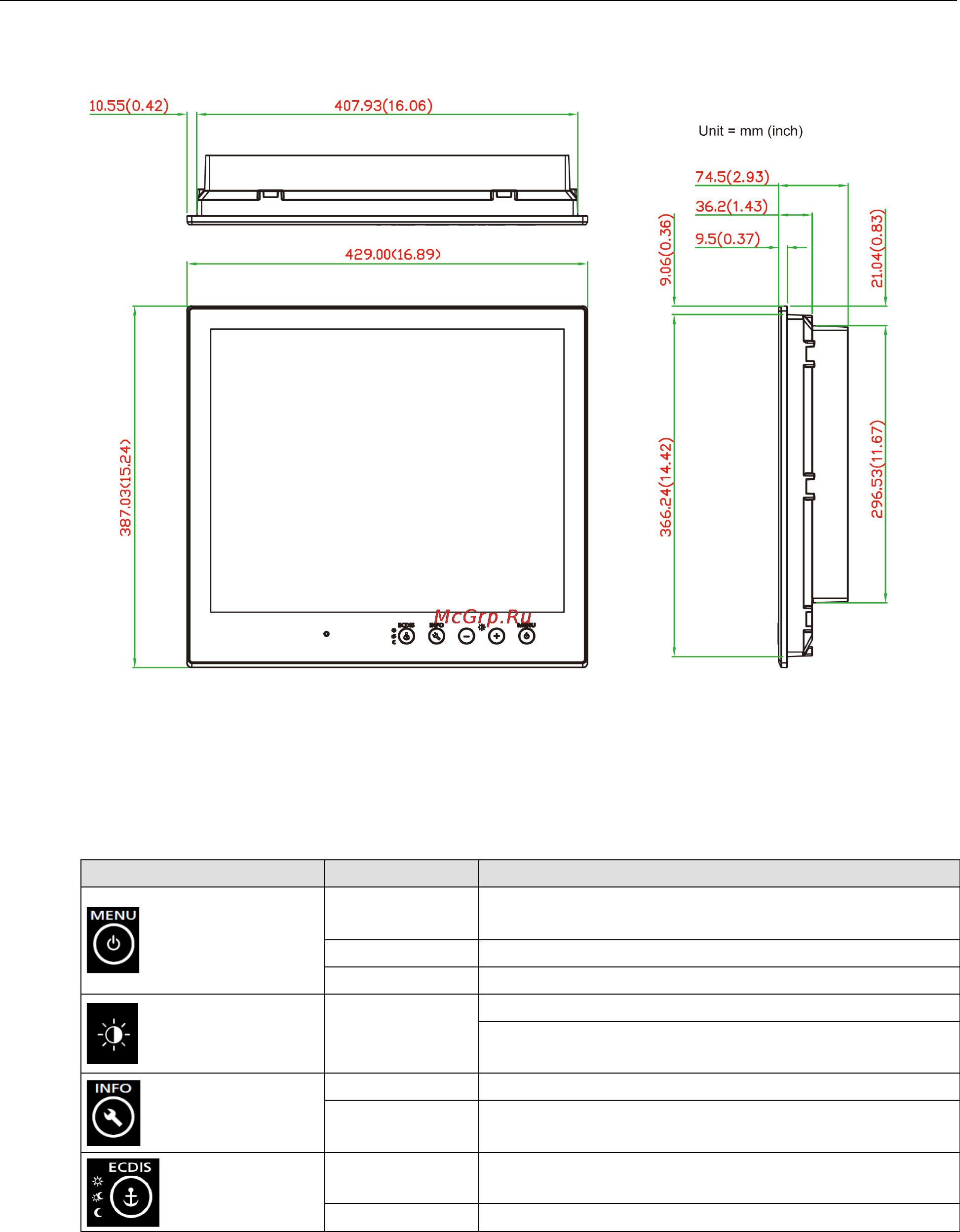

MD-219 Hardware Manual Hardware Introduction
2-3
Dimensions
SavvyTouch Display Control Buttons
The MD-219 comes with SavvyTouch display control buttons located at the lower right corner of the front
surface. These intelligent buttons will light up automatically when your fingers draw near. Refer to the following
table for the function of each button.
Name Display Color Control Function / Color Legend
Menu/Power
Green
Display is powered on and functioning normally.
Touch the button to show the OSD settings menu.
Red No input signal detected. Display on standby.
Off Power is down and the display is off.
Brightness
White
+: To increase brightness of panel
-: To decrease brightness of panel
Info
Off AC/DC power fuSnctioning normally
Red AC/DC power error
Display mode
White Switch between DAY/DUSK/NIGHT brightness modes
Off Panel brightness out of default range
