MD-219 Hardware Manual Hardware Connection Description
3-5

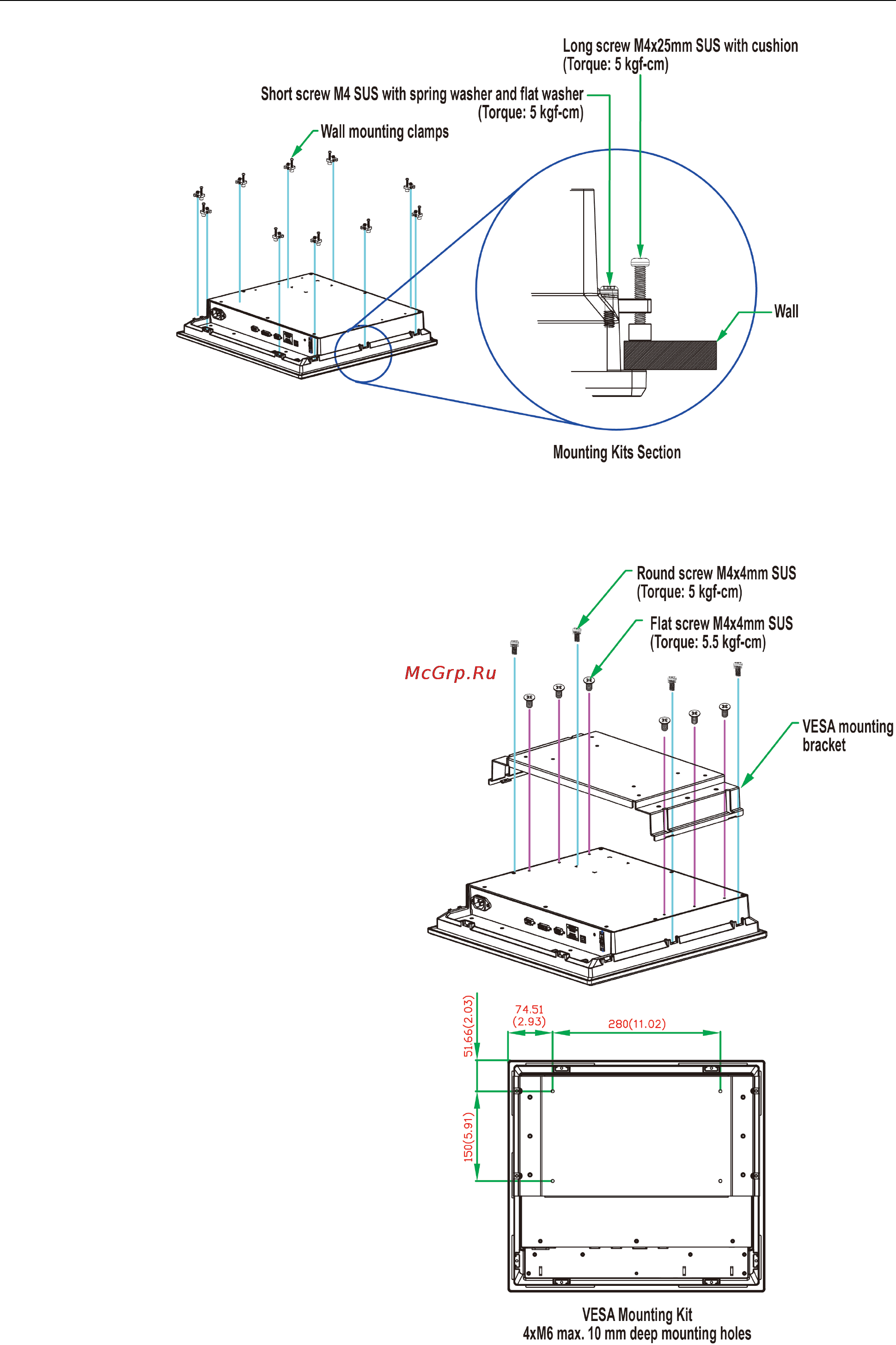

VESA Mounting
The MD
-219 Series also comes with an
optional VESA mounting kit. Six flat screws
and four round screws are required to fasten
the VESA mounting bracket. See the figure
below for detailed screw specifications and
torque values.
An additional four screws (not included
in
the kit) are required to mount the
display
on
a VESA rack. For this purpose, use M6
screws with a length between 10 and 12
mm.
