Place your MD-219 on a clean, flat, well-ventilated desktop. For better ventilation, leave some space between

the MD-219 Series and other equipment. Do not place equipment or objects on top of the MD-219, as this might

damage the display’s internal components.

NOTE

These desktop brackets are intended for temporary use when conducting lab tests, and are not intended to be

used in permanent deployments.

Panel Mounting

The

MD-219 Series comes with 14 optional clamp

mounts that allow for installation onto a wall (where

space has been cut out to accommodate the rest of

the hardware) or into computing stations where a

flush mount is desired. The maximum thickness

of the surface to wh

ich the display can be

clamped is 11 mm. For a secure mounting, all 14

clamps must be used. The clamp arms are fastened

into slots o

n all four sides of the MD-219. Use the

short M4 SUS

(stainless) screws to

fasten the clamp

arms to the MD

-219 mounting slot

s, as shown in the

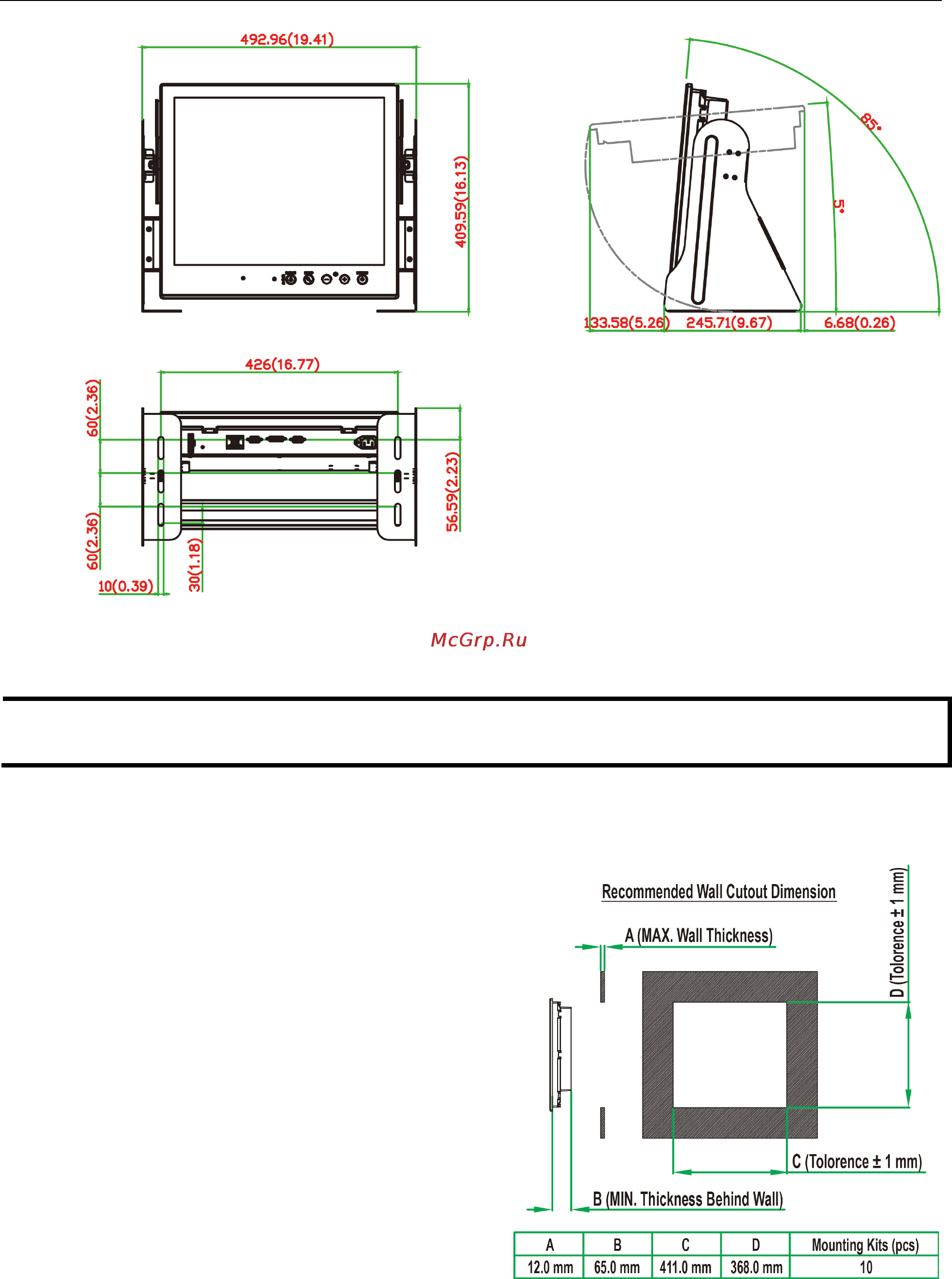

magnified inset in the diagram just below. Next, use

the clamps to fasten the

display to its mounting

point; please note the torque value

s shown in the

figure inset

below.
