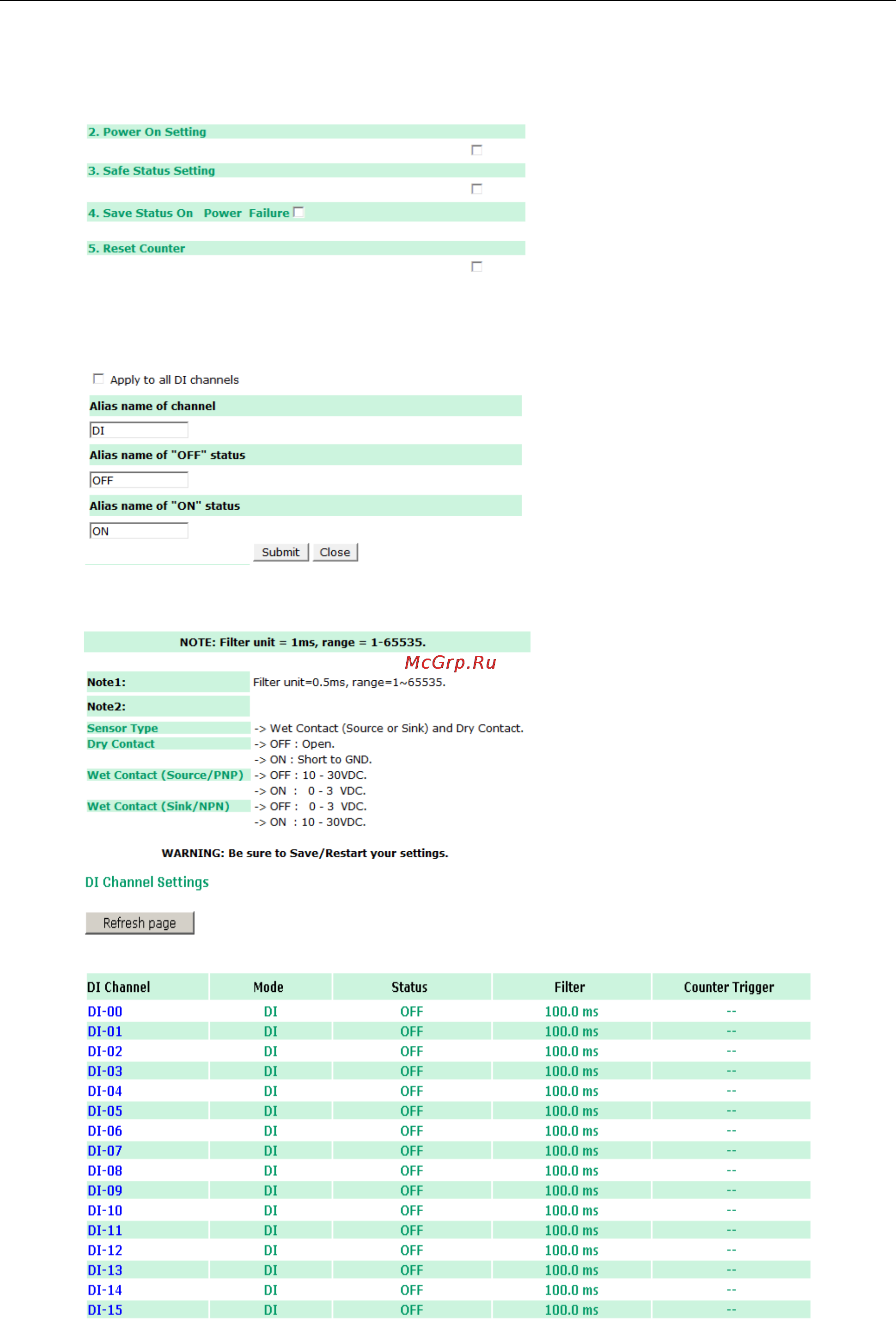

ioLogik E1500 Series Using the Web Console

3-8

By selecting the Save Status on Power Failure field, the ioLogik E1500 will automatically save the counter

value when there is a power failure. To reset the Counter, you will select Reset Counter field and then click

the Submit button.

The Digital Input’s Alias Name and the logic definition can also be configured on this page. You can apply the

alias name to all channels by clicking the Apply to all DI channels checkbox.

DI Channel Specification:
