ioLogik 2500 Series Offline Configuration Management

4-10

• Power On Status

To enable the counter to resume counting immediately upon powering up, enable the Power On Status.

Stop: The counter starts logging signals only after configured to do so by a Modbus or a Click&Go Plus

command.

Start: Counting begins automatically whenever the ioLogik is powered on.

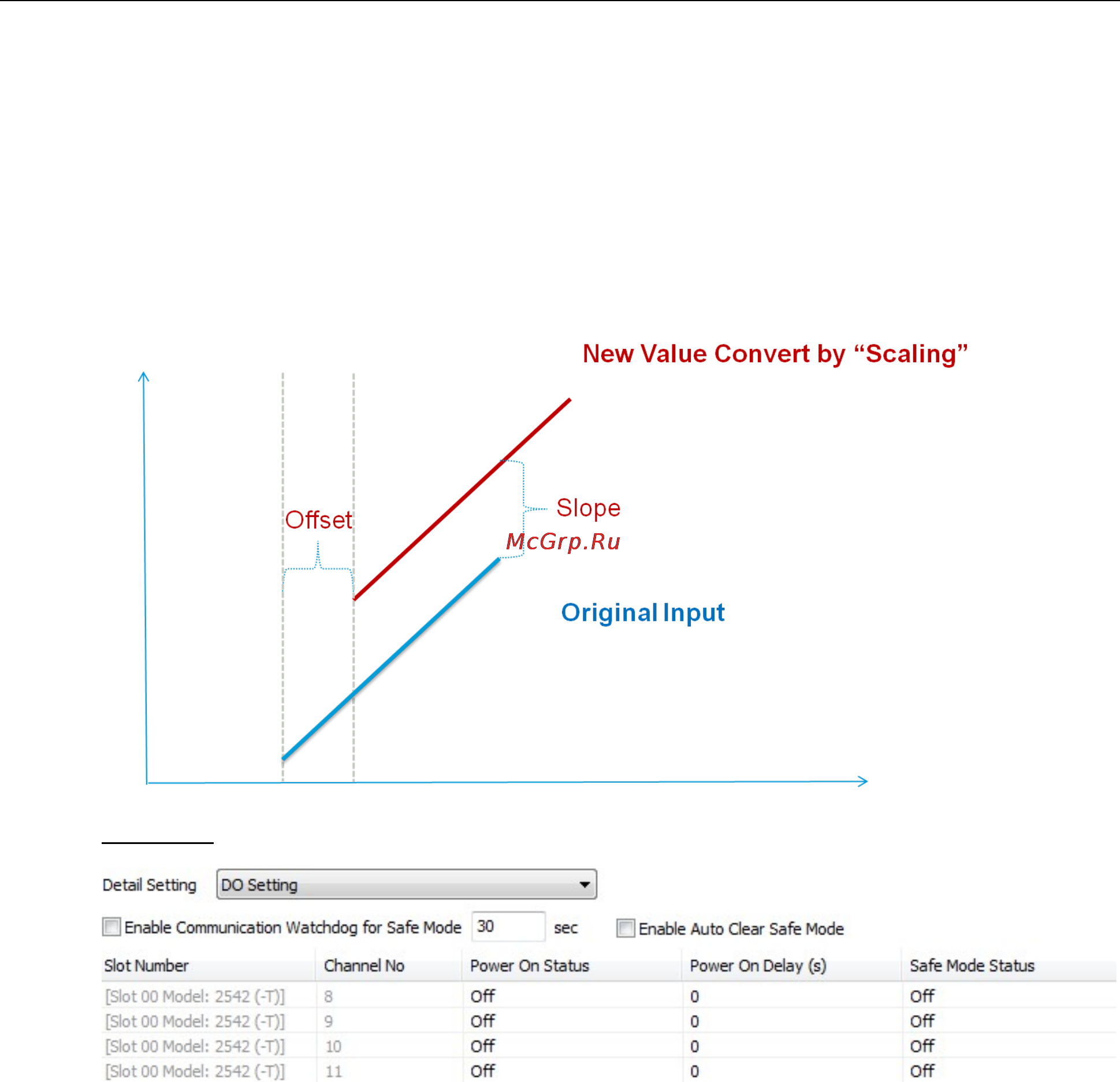

• Scaling Enable / Scaling Slope / Scaling Offset / Scaling Interval (sec)

Set the Slope & Offset to convert the Counter value to new units.

DO Setting

• Enable Communication Watchdog for Safe Mode

When the watchdog is enabled, any disconnection from the network will activate a safe state. In the

safe mode, DO channels can be configured to turn on, turn off, or commence pulse output during the

safe state. If the watchdog is not enabled, then DO channel status will remain unchanged during a

network disconnection.

To configure a DO for safe mode, set the corresponding value in the Safe Mode Status column to ON.

• Enable Auto Clear Safe Mode

When detecting the reconnection of Ethernet signals, the device will auto clear the safe mode status.

• Power On Status

When the device is powered on, the status of each DO channel is set to OFF by default. This status can

be modified to ON.

• Power On Delay

The time delay from tuning DO channels when the power is turned on.
