ioLogik 2500 Series Cellular Network Setup and Configuration (for cellular models)
6-12

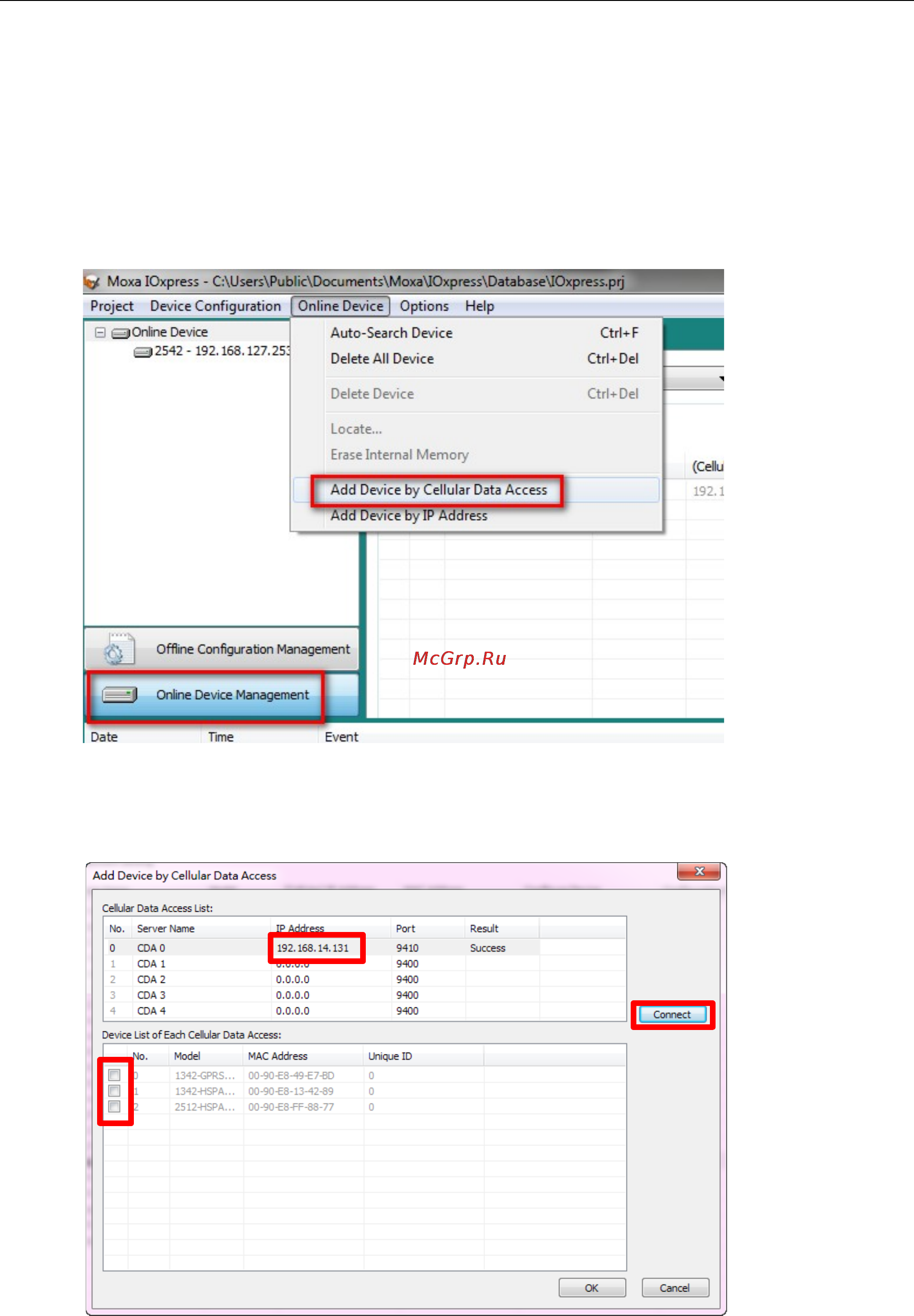

Step3: Connect to the device over the cellular network
Using IOxpress
Connect to the cellular Data Access server using Online Device Management, as described below:
1. Click Online Device Management.
2. Select Add Device by Cellular Data Access.
3. Type in the server’s IP address and port number.
4. Click the Connect checkbox.
5. Select the cellular device that you would like to connect to.
6. The selected devices have been added to the online device list, and you can start to upload/configure
your devices over the cellular network.
1
2
3
4
5
