Moxa C Programmable RTU Controllers Getting Started
2-4
Installing the RTU Controller on a DIN-Rail
ioPAC 8020-C Series

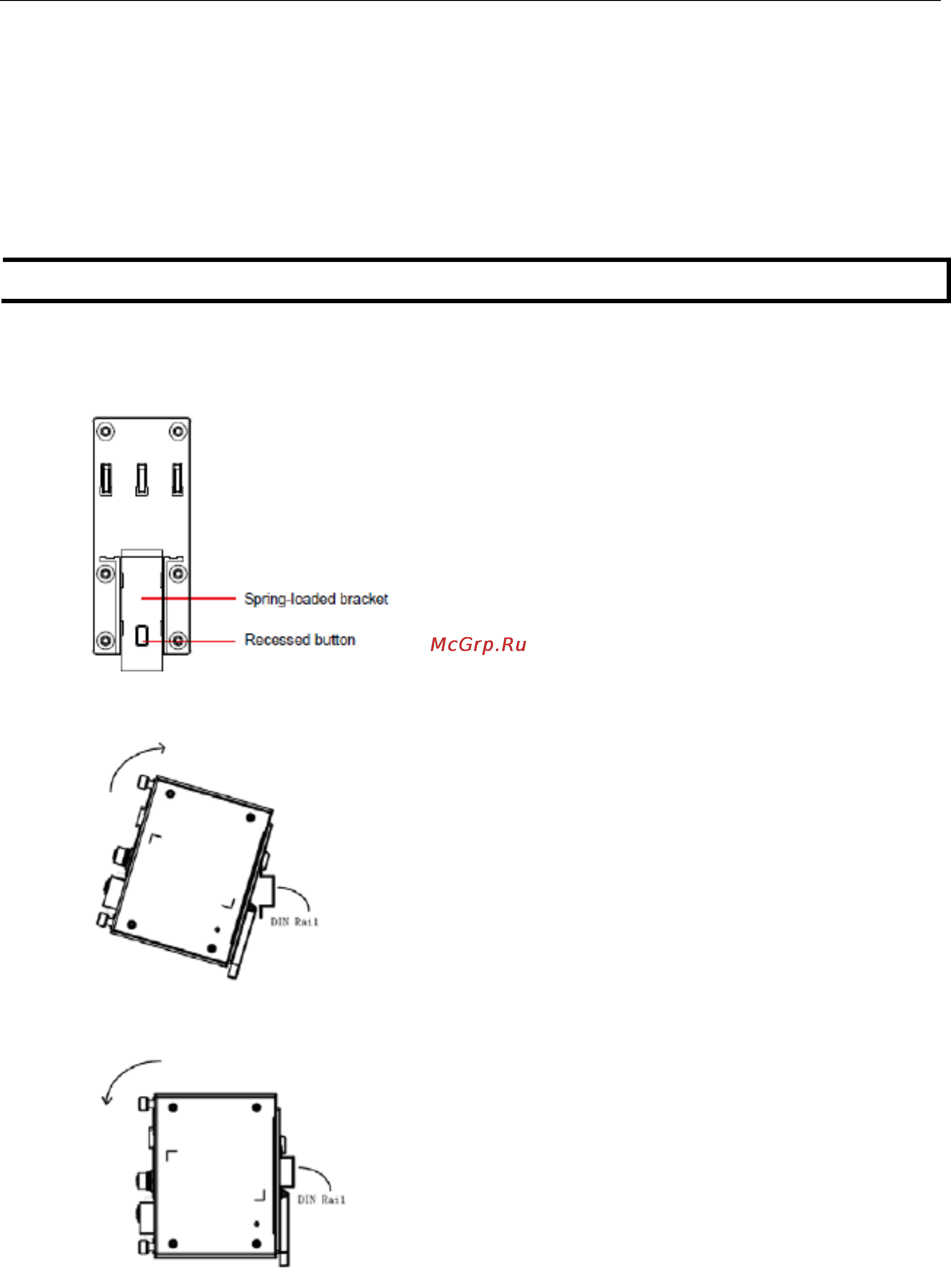

The aluminum DIN-rail attachment plate should already be fixed to the back panel of the ioPAC 8020-C when
you take it out of the box. If you need to reattach the DIN-rail attachment plate to the ioPAC 8020-C, make sure
the spring-loaded bracket is situated towards the bottom, as shown in the following figures.
NOTE
Users can purchase a wall
-mounting (WK-75) kit separately.
STEP 1: If the spring-loaded bracket is locked in place, push the recessed button to release it. Once it is
released, you should feel some resistance from the spring as you slide the bracket up and down a few
millimeters in each direction.
STEP 2: Insert the top of the DIN-rail into the top slots on the DIN-rail attachment plate.
STEP 3: The DIN-rail attachment unit will snap into place as shown below.
