Moxa C Programmable RTU Controllers Getting Started
2-9

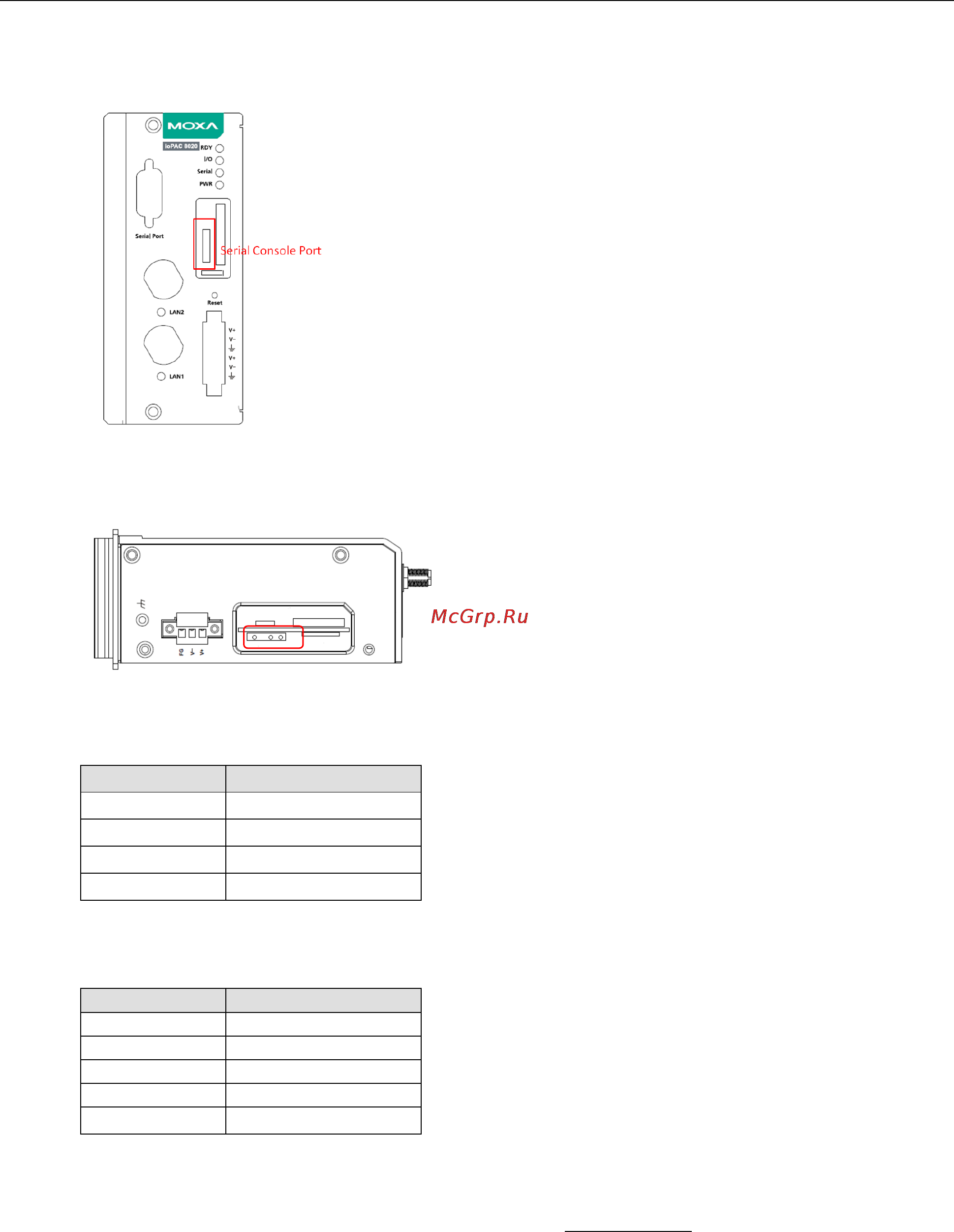

Console Port for the ioPAC 8020-C Series
Console Port for the ioLogik W5348-C Series
Pin Assignment for the Serial Console Port
No. Pin Assignments
1 Tx
2 Rx
3 N/A
4 GND
Serial Console
Baudrate
115200 bps
Parity
None
Data bits
8
Stop bits:
1
Flow Control
None
Terminal VT100
To connect to the RTU’s serial console, Moxa PComm Terminal Emulator is recommended to be used as the
console terminal. In the following steps, we describe how to connect the console.
STEP 1: Find the Moxa PComm Lite from the Moxa website (www.moxa.com
) or Document and Software CD\
Software\utility\PComm\
STEP 2: Install the Moxa PComm Lite to the host Windows PC.
STEP 3: Run the PComm Lite Terminal Emulator from Start\Programs\PComm Lite Ver 1.x\Terminal Emulator.
Serial Console Port
