Moxa VPort 26A-1MP Introduction

1-8

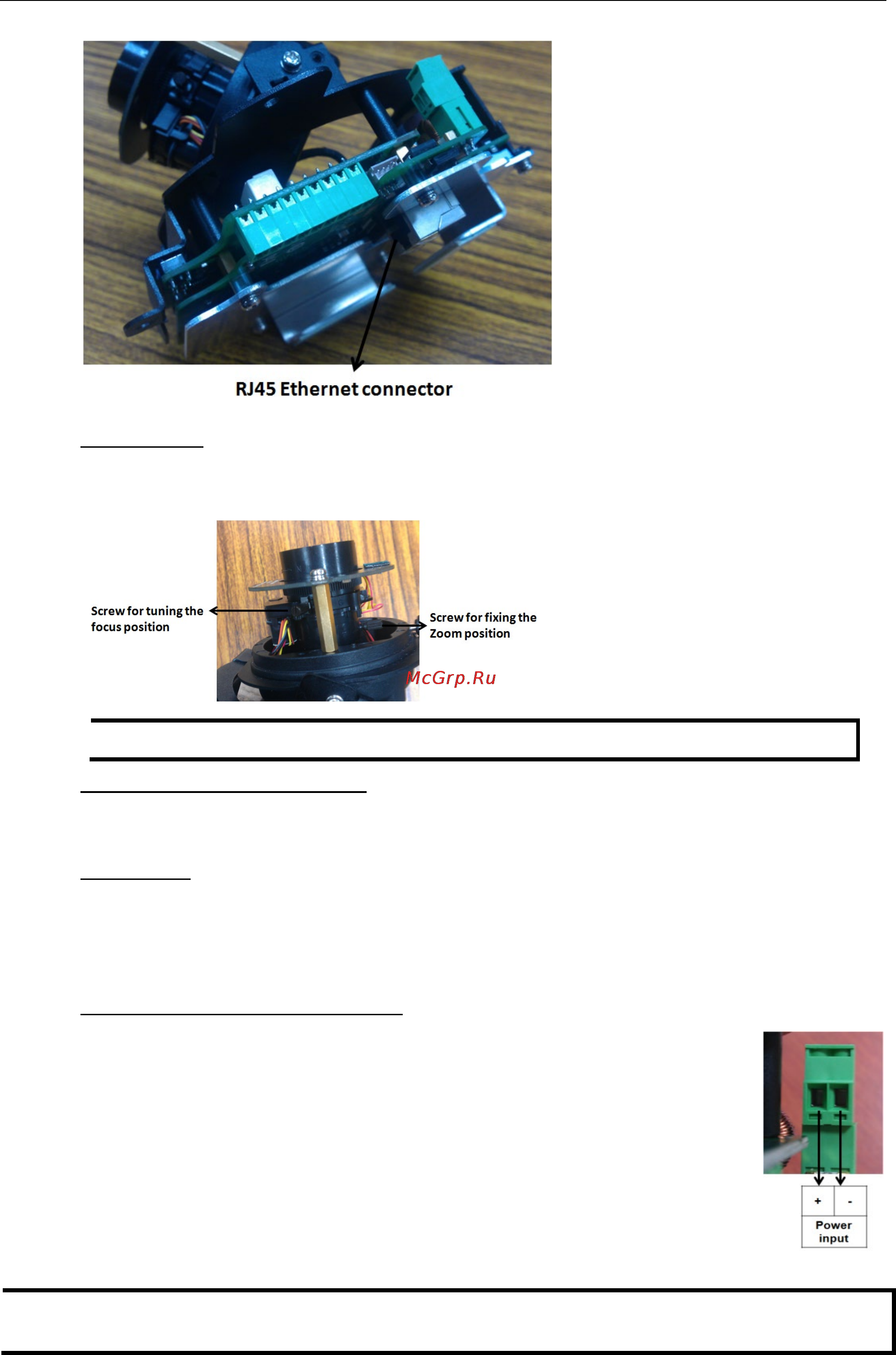

Vari-focal Lens

The VPort 26A-1MP series comes with a day and night 3to 9mm megapixel lens for providing high quality video

images. Users can adjust the Zoom and Focus manually to get clear images regardless of the site environment.

NOTE

To tune the focus position, loosen the screw, and then turn the

lens head.

Pan, Rotation and Tilt Adjustment

Use the pan, rotation and tilt fasteners for panning, rotating and tilting the lens angles. To do this, the screws

must be loosened in advance. After the lens angles are correct, tighten the screws to fix the angles.

Light Sensor

The VPort 26A-1MP includes a light sensor for detecting illumination, which is for enabling the ICR (IR-cut filter

removable) function. When the illumination is under 3 lux, the image will be switched to night mode in black

and white, and when the illumination is greater than 5 lux, the image will be switched back to day mode in

color.

2-pin Terminal Blocks for Power Input

Port 26A-1MP series has comes in two models:



VPort 26A-1MP: 12/24 VDC or 24 VAC power inputs



VPort P26A-1MP: powered with PoE (Power over Ethernet, 802.3af)

Note: The 2

-pin terminal block shown here is for the direct-

wired power input of

the VPort 26A

-1MP.

NOTE

The specifications of the direct

-wire power input are 12-32 VDC for 12/24 VDC power input, or 18-

30 VAC for

24 VAC power input. The maximum power consumption is

4.7 Watt.
