Moxa VPort 26A-1MP Getting Started
2-6

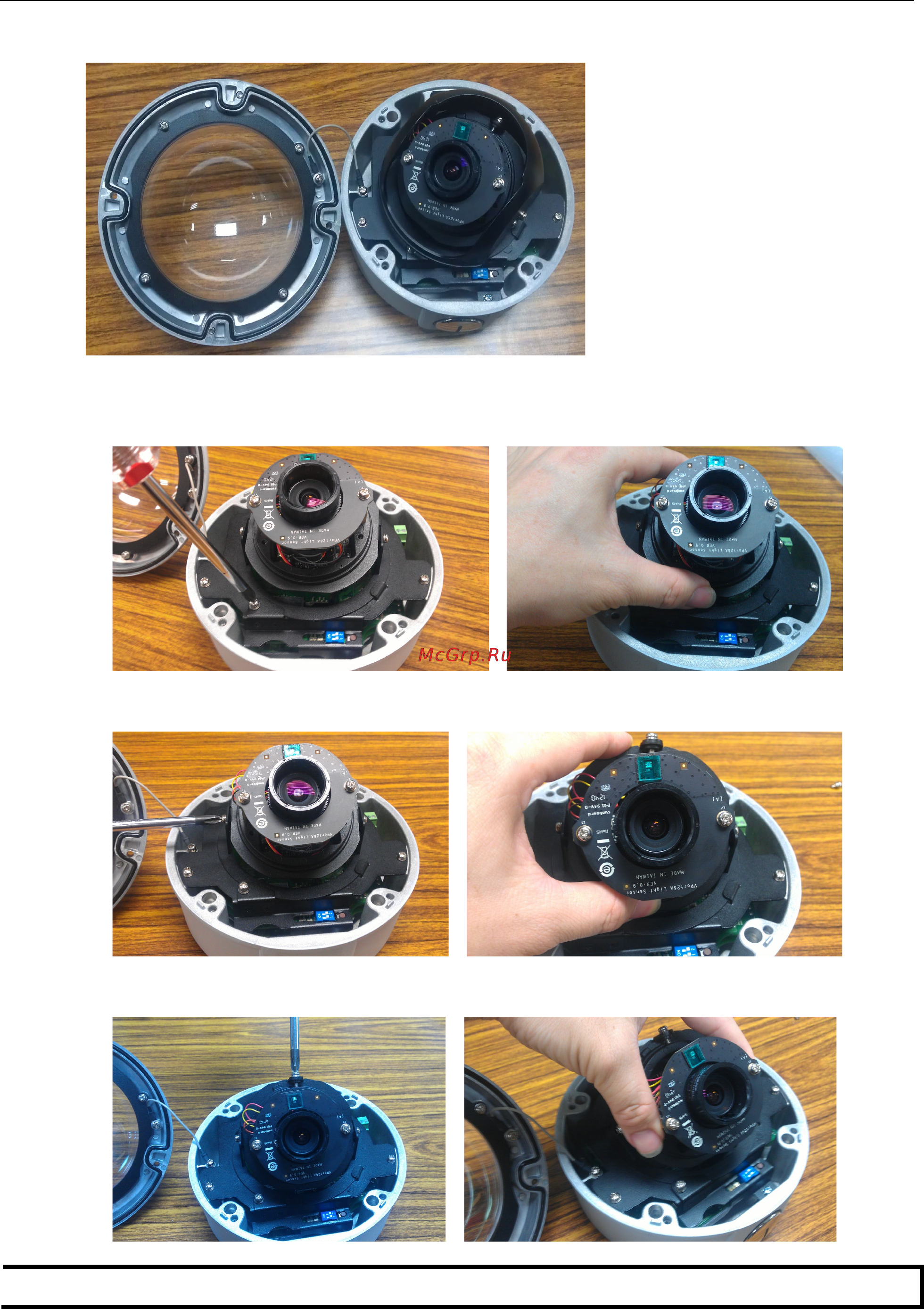

Step 5: Assemble the IP Camera Module with the bottom case.
Step 6: To get the desired video image, adjust the angles and zoom strength.
a) Pan adjustment
b) Tilt adjustment
c) Rotate adjustment
NOTE
Do not grasp the lens when rotating the camera. Instead, hold
the two copper cylinders.
