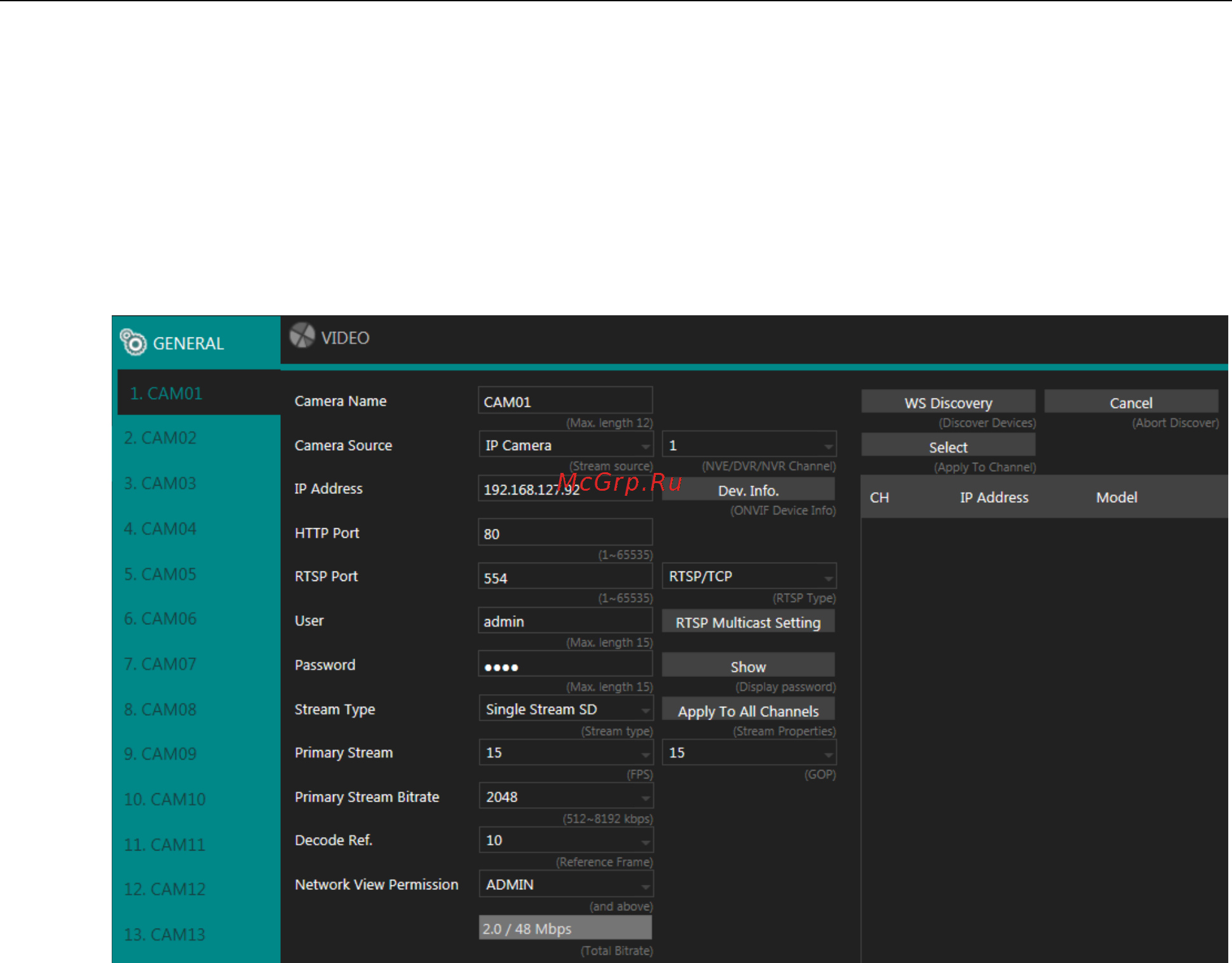

Connecting to Cameras

After you complete setting up the System and Network, you should then connect to the cameras. Press

Camera in the left panel to enter the camera setup page. The setting options are described below:

General

Camera Name: Enter the camera name to be displayed on the streaming screen.

Camera Source: Allocate a VP-022D channel for the camera.

IP Address: Enter the IP address of the camera you want to connect to, and press Dev. Info. to check ONVIF

compatibility.

HTTP Port: Enter the port for the HTTP connection.

RTSP Port: Enter the port for the RTSP connection.

User: Enter the username required for camera authorization.

Password: Enter the password required for camera authorization.

Stream Type: Choose whether to stream only SD video or dual (SD & HD) video.

Primary Stream: Select the FPS and GOP for the primary stream.

Primary Stream Bitrate: Select the bitrate for the primary stream.

Decode Ref.: Select the number of the reference frame for the decoder.

Network View Permission: Set up the permission level to limit the authority to view streaming.
