VP-022D Introduction

1-3

Product Overview

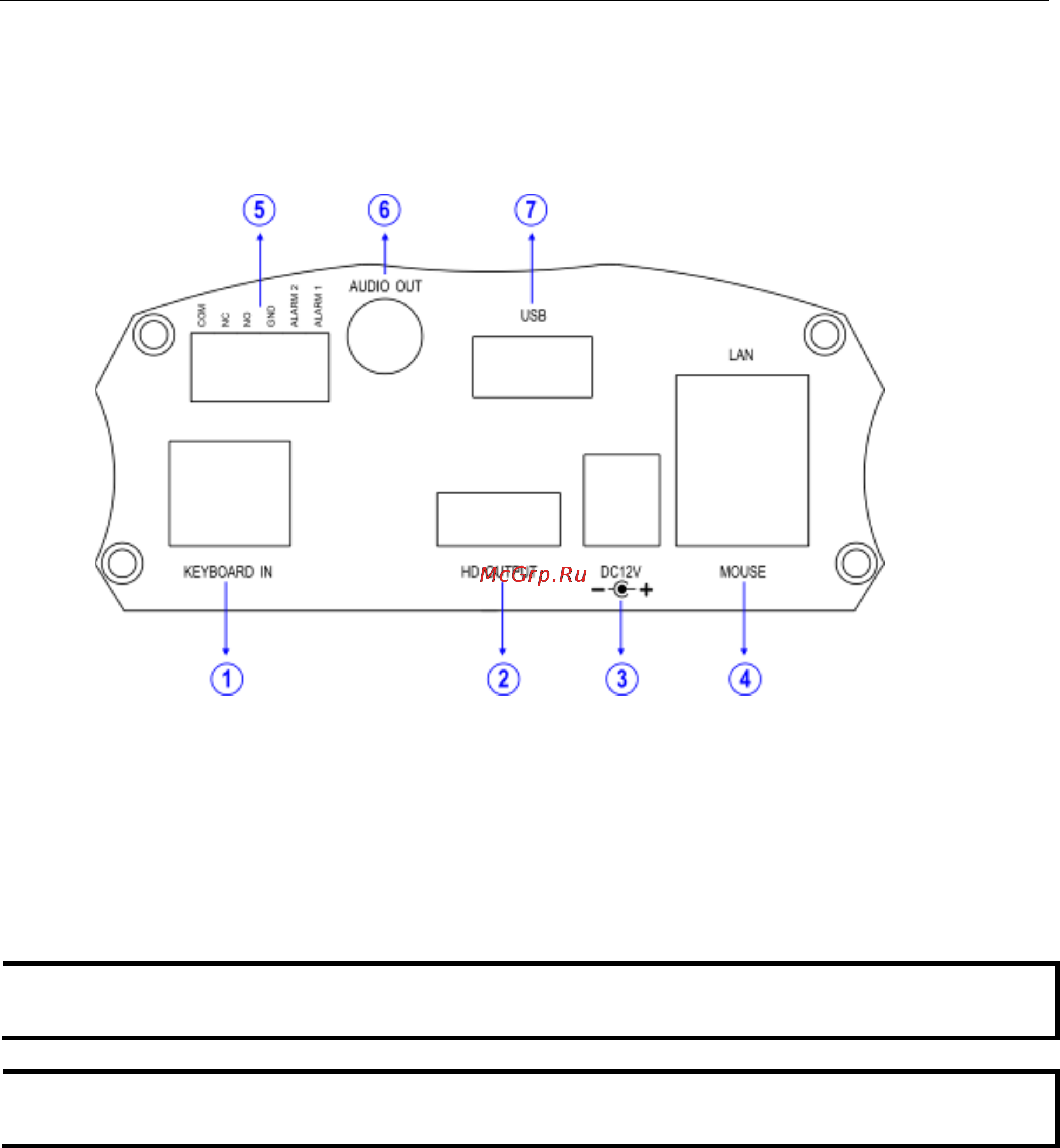

Rear View

1. RJ-45 Keyboard In

Alarm I/Os

Alarm 1 N/O alarm output,

and 1 N/C alarm output

2. HDMI Output

3. 12V DC Input

4. LAN / USB Mouse

Network RJ-45 connector and USB mouse.

Audio Output

RCA audio connector

USB 2.0 connector

USB flash disk

NOTE

Do not connect any devices to ‘Keyboard In’ other than the keyboard as the connection contains 12VDC and

may damage othe

r devices.

NOTE

lease use a HDMI cable with shading processing and snap ferrite ring to avoid interference from

electromagnetic radiation
