VP-022D Getting Started

2-15

Live

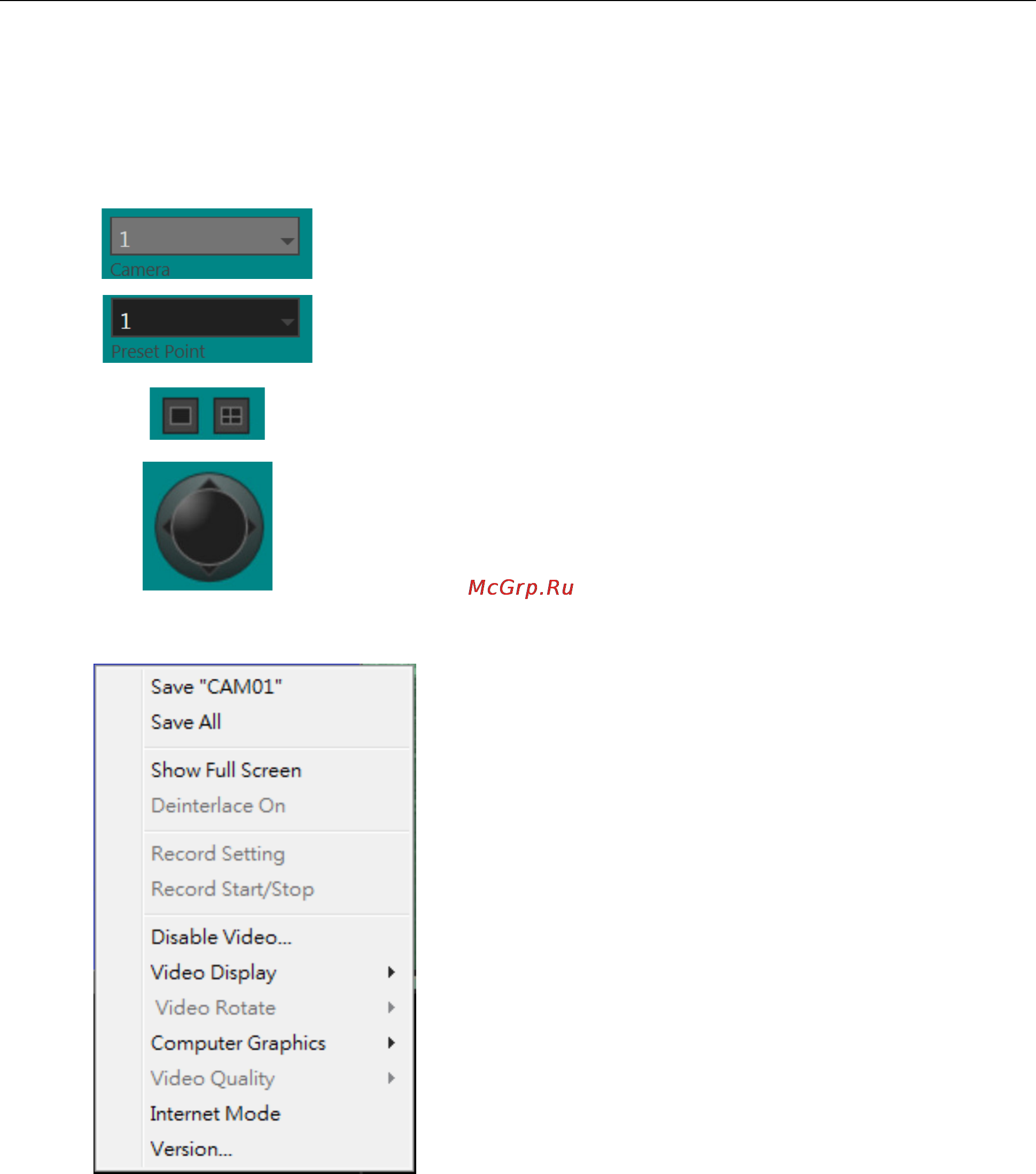

The LIVE tab displays the streams of all connected cameras. With the control buttons and joystick you can

control the movement of the selected camera. In the lower right hand side, a check point is there for the user

to turn on the audio function. The functionality of each contol button is decribed below:

Show the camera ID sele

cted by the user.

ke the camera move to a preset point.

Choose your required view to

one or four split view. It’s also representing the

channel changing button, you can switch to the following channels by clicking on this

button too.

PT c

ontol handle.

A Pop-out function window will appear by right clicking on the video block.

Save “CAM”: Save snapshot

Save All: Save snapshot at all streaming on the live view matrix

Show Full Screen: Change this streaming to full screen mode

Disable video: Disable display streaming

Video Display: Display video in three modes, which are the original video size.

Computer Graphics: Change computer graphic interface including Direct3D Acceleration, DirectDraw

Acceleration, Graphics Device Interface (GDI)

Version: Show ActiveX version
