VPort 364A Getting Started

3-12

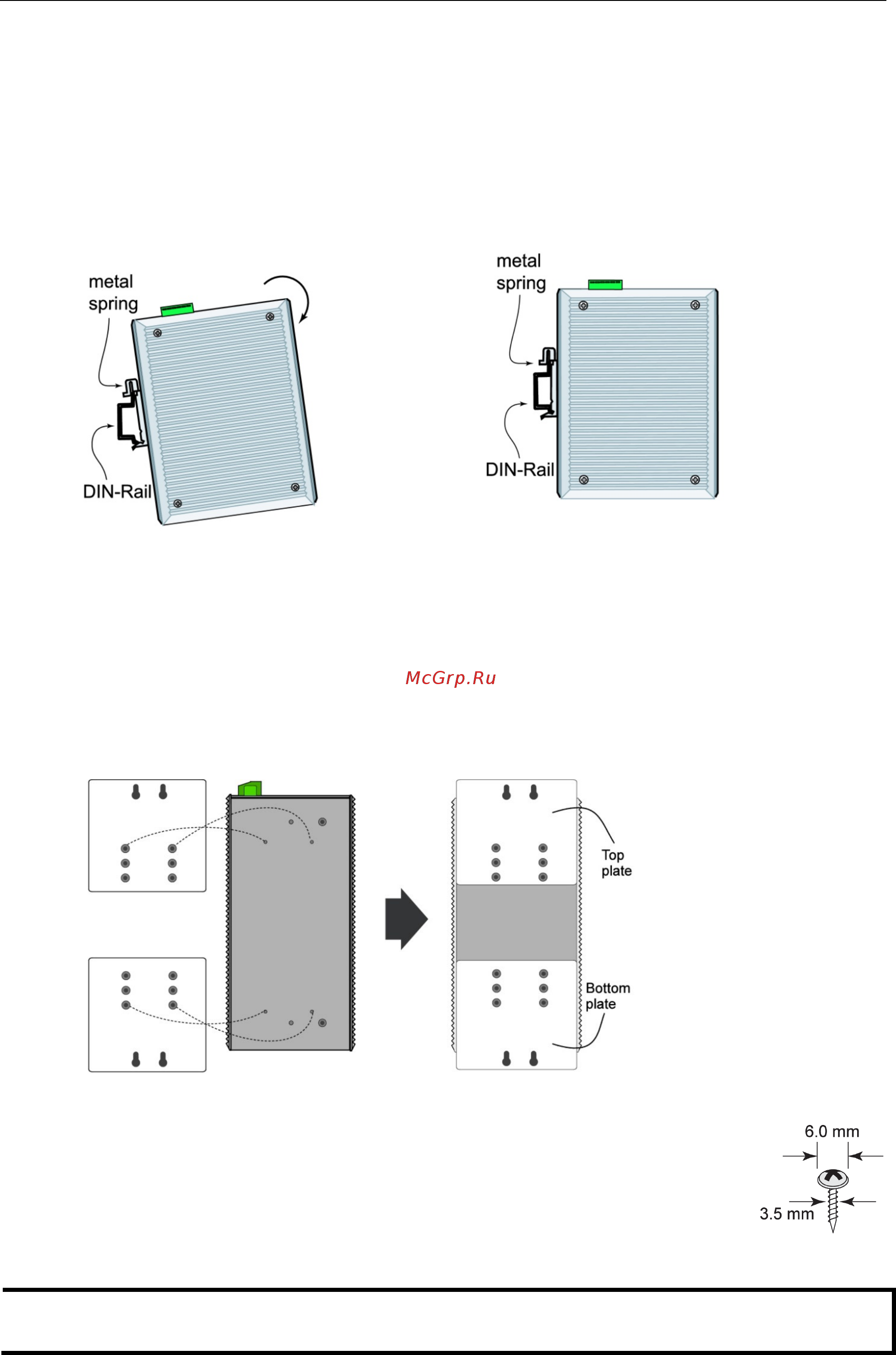

DIN-Rail Mounting

The DIN-Rail attachment plate should already be attached to the back panel of the VPort 364A when you take

it out of the box. If you need to reattach the plate, make sure the metal spring is situated towards the top, as

shown in the figures below.

STEP 1:

Insert the top of the DIN

-Rail into the slot just below

the metal spring.

STEP 2:

The u

nit will snap into place as shown below.

Reverse Steps 1 and 2 above to remove the VPort 364A from the DIN-Rail.

Wall Mounting

Follow the steps below to mount the VPort 364A on a wall or panel.

STEP 1:

Remove the DIN-Rail attachment plate from the VPort 364A. Attach the two wall-mount plates as shown in the

diagrams below.

STEP 2:

4 screws are required. Use the VPort 364A, with wall mount plates attached, as a guide

to mark the correct locations of the 4 screws. The heads of the screws should be less

than 6.0 mm in diameter, and the shafts should be less than 3.5 mm in diameter, as

shown in the figure at the right.

Do not screw the screws in all the way

—

leave a space of about 2 mm to allow room for

sliding the wall mount panel between the wall and

the screws.

NOTE

Before you mount the unit on the wall, make sure that the screws are the right size by testing them with the

apertures on the mounting plates.
