VPort 364A System Configuration
5-40

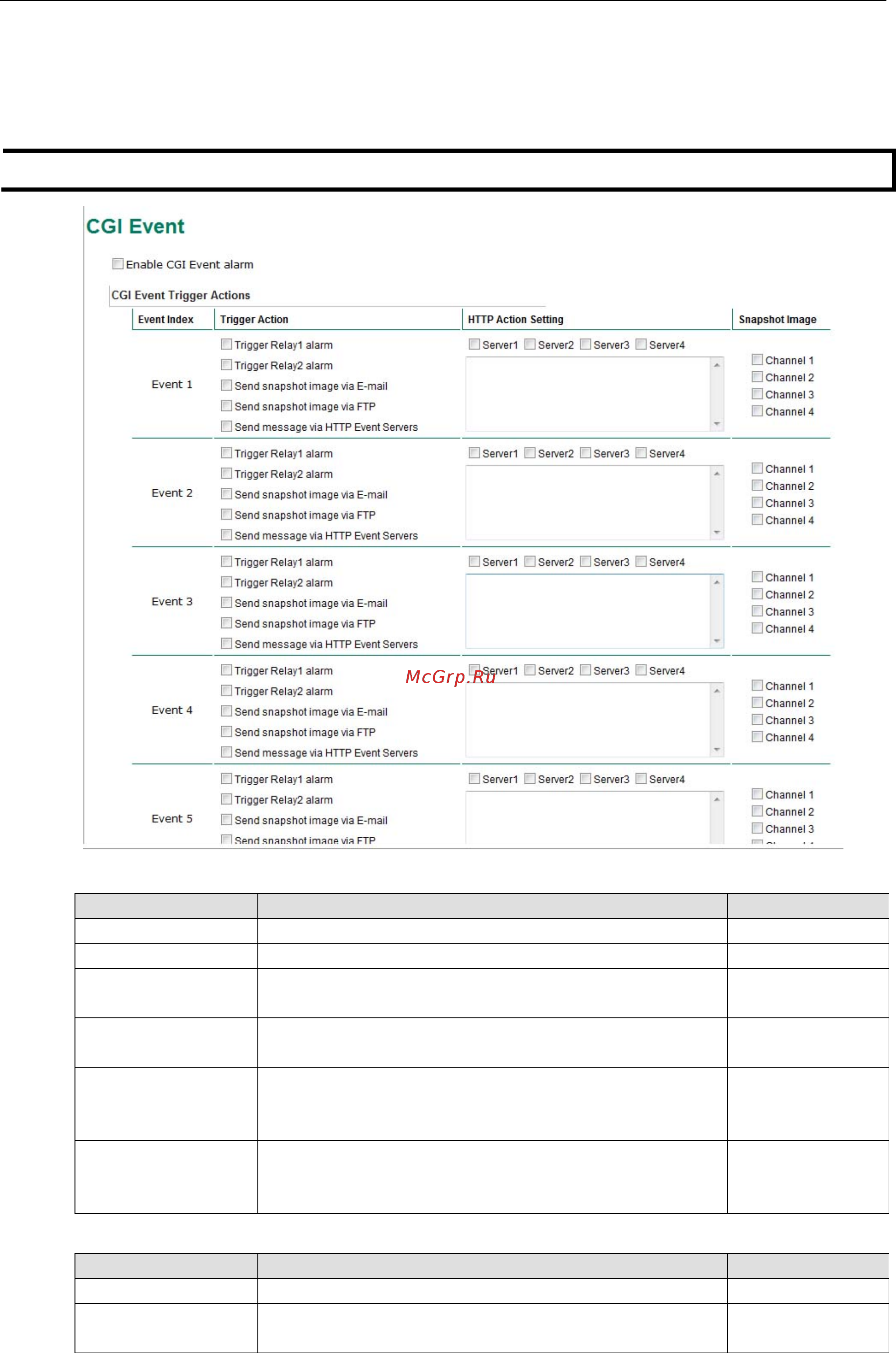

CGI Event
The VPort can accept 5 CGI commands, which are sent from external devices, such as ioLogik series Ethernet
I/O, to be the event alarms.
NOTE
The VPort only can accept the CGI commands that follow the VPort’s CGI commands format.
CGI Event Trigger Actions
Setting Description Default
Enable CGI Event alarm
Enable or disable CGI Event alarm. Disable
Event Select the Event 1, 2, 3, 4, 5 Disable
Trigger Relay1 alarm Once this CGI Event is triggered, the Relay1 alarm will be
activated
Disable
Trigger Relay2 alarm Once this CGI Event is triggered, the Relay2 alarm will be
activated
Disable
Send snapshot image
via FTP
Once this CGI Event is triggered, the VPort will send the
snapshot images set in the Event Alarm/Basic page to the FTP
server, which are set in the Network/ FTP Server page.
Disable
Send message via HTTP
Event Servers
Once this CGI Event is triggered, the VPort will send the
message set in the HTTP Action Setting to the HTTP event
servers, which are set in the Network/ HTTP Event Server page.
Disable
HTTP Action Setting
Setting Description Default
Server 1, 2, 3, 4 Select the HTTP event server for sending the HTTP action Disable
Blank column Administrators can customize the message sent to the HTTP
event sever in this column
Blank
