VPort 364A System Configuration
5-36
NOTE

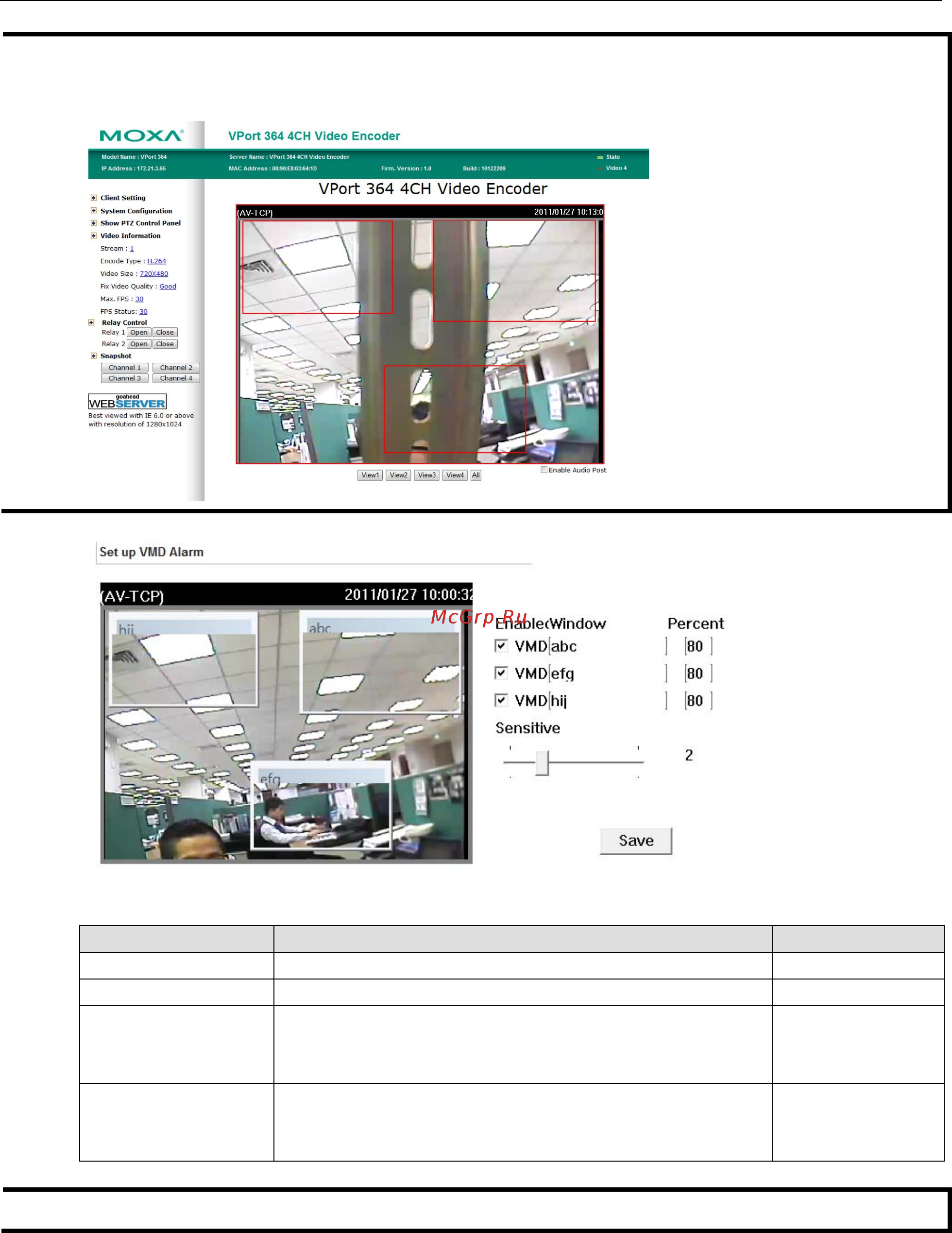

Once the Show alert on the image when VMD
is triggered is enabled, the red frames that appear on the
homepage image indicate the size of the VMD window set up by the administrator.
Setup a VMD Alarm
Setting Description Default
Enable Enable or disable the VMD1, 2, and 3 Disabled
Window The name of each VMD window Blank
Percent The minimum percentage of an image change for triggering
VMD. Decrease the percentage to make it easier to trigger
VMD.
80
Sensitive The measurable difference between two sequential images for
triggering VMD. Increase the sensitivity to make it easier for
VMD to be triggered.
1
NOTE
After setting the VMD Alarm, click the
Save button to save the changes.
