Loewe Articos 32 [5/34] Rear connections
![Loewe Articos 32 [5/34] Rear connections](/views2/1020536/page5/bg5.png)
5

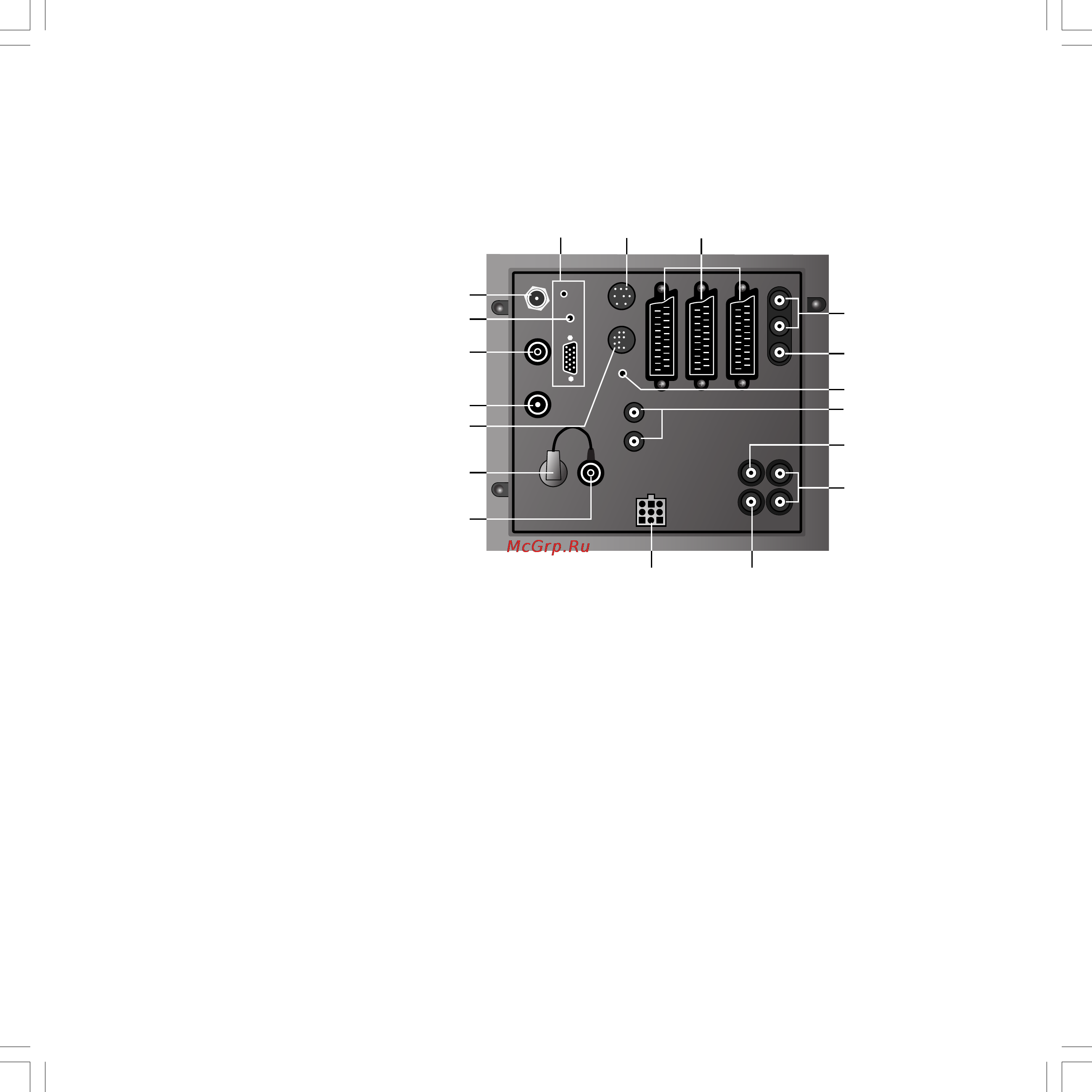

Rear connections
AV2/RGB
AV3
AV1
SAT
IN
OUT
RC5/RC6
VHF/UHF
R
SUR
DIG OUT
DIG IN
AUDIO IN
SERVICE
AUDIO OUT
VHF/UHF
R
IR
1
L
2
SUBWOOFER
STAND
VGA
SUB
L
C
CTRL
Audio output sockets
External audio input
✳
VGA-input
and output for
remote control signal
(RC5/RC6)
✳
in Twin-Sat: antenna socket of the 1st satellite tuner
Antenna socket of the terrestrial digital TV tuner (DVB-T, DVB 2T/S-CI)
with Satellite Digital-Tuner DVB2 S-Basic: digital audio output
✳
Antenna socket of the satellite tuner
in Twin-Sat: antenna socket of the 2nd satellite tuner
with Satellite Digital-Tuner DVB2S-Basic, DVB 2T/S-CI: antenna socket
with terr. digital tuner DVB2T-Basic: digital audio output
Connection for rotating foot control
Connection for IR link
Digital tone inputs
DIS module
Digital tone output
DIS module
Service
socket/
ConnectionLoewe
audio systems (L-Link)
Connection for active
surround speakers
Dolby digital module
✳
Connection for active
center speaker
Dolby digital module
✳
Connection for subwoofer in the stand,
Loewe active loudspeaker systems
or Home Automation
Connection for
special subwoofer
Dolby digital module
✳
Sockets for video
recorder, DVD,
decoder etc.
(Euro-AV)
Antenna socket of the antenna/cable tuner
insert the antenna plug of the IP tuner(distributor) here
Antenna socket of the PIP tuner
/insert antenna cable here
/or connect to the output of the
terr. digital TV tuner DVB2T-CI/DVB 2T/S-CI
/or with the terr. dig. tuner DVB2T-Basic, connect
to the antenna system via an antenna splitter
✳
Antenna output of the terrestrial Digital-TV tuner (DVB2T-CI/DVB 2T/S-CI)
/connect with the antenna socket of the PIP tuner
✳
can be retrofitted
BAQ2550H_31310_021_4_GB 22.07.2004, 10:15 Uhr5
