9
+
+

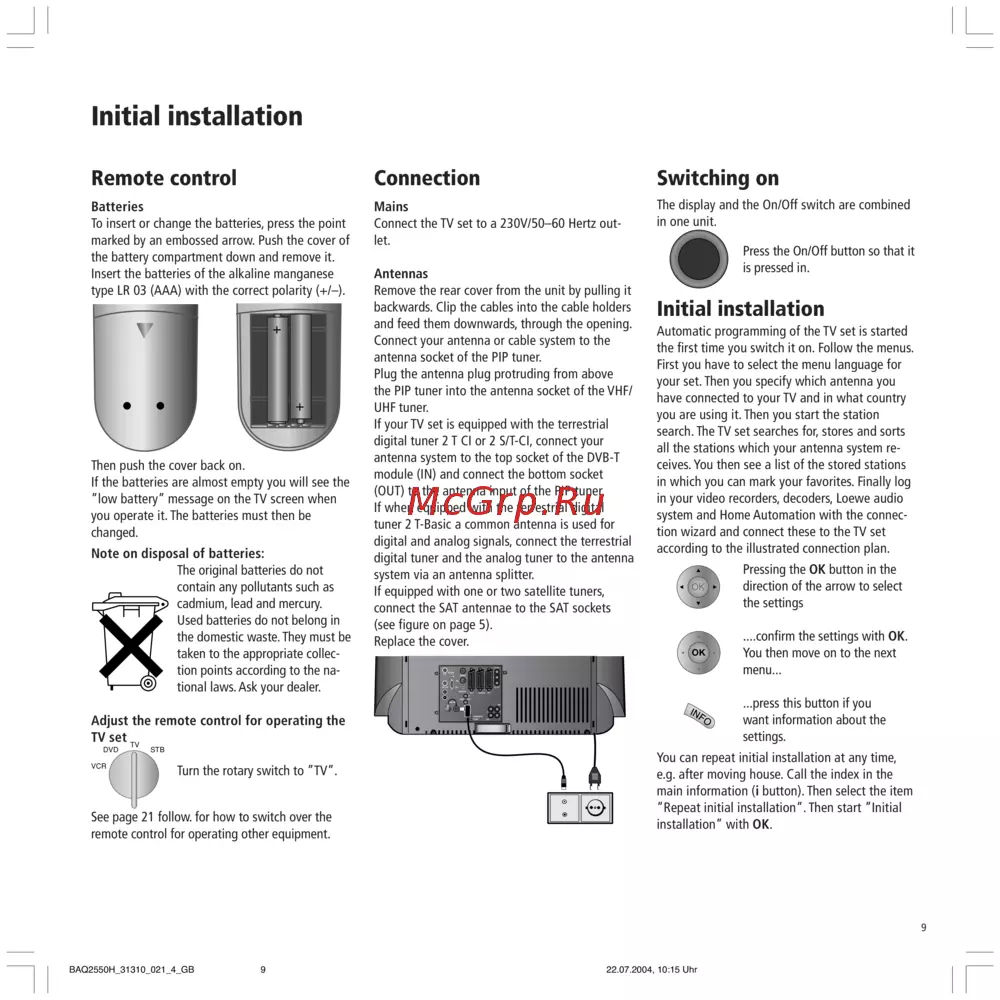

Initial installation
Remote control
Batteries
To insert or change the batteries, press the point
marked by an embossed arrow. Push the cover of
the battery compartment down and remove it.
Insert the batteries of the alkaline manganese
type LR 03 (AAA) with the correct polarity (+/–).
Then push the cover back on.
If the batteries are almost empty you will see the
”low battery” message on the TV screen when
you operate it. The batteries must then be
changed.
Note on disposal of batteries:
The original batteries do not
contain any pollutants such as
cadmium, lead and mercury.
Used batteries do not belong in
the domestic waste. They must be
taken to the appropriate collec-
tion points according to the na-
tional laws. Ask your dealer.
Adjust the remote control for operating the
TV set
Turn the rotary switch to ”TV”.
See page 21 follow. for how to switch over the
remote control for operating other equipment.
Connection
Mains
Connect the TV set to a 230V/50–60 Hertz out-
let.
Antennas
Remove the rear cover from the unit by pulling it
backwards. Clip the cables into the cable holders
and feed them downwards, through the opening.
Connect your antenna or cable system to the
antenna socket of the PIP tuner.
Plug the antenna plug protruding from above
the PIP tuner into the antenna socket of the VHF/
UHF tuner.
If your TV set is equipped with the terrestrial
digital tuner 2 T CI or 2 S/T-CI, connect your
antenna system to the top socket of the DVB-T
module (IN) and connect the bottom socket
(OUT) to the antenna input of the PIP tuner.
If when equipped with the terrestrial digital
tuner 2 T-Basic a common antenna is used for
digital and analog signals, connect the terrestrial
digital tuner and the analog tuner to the antenna
system via an antenna splitter.
If equipped with one or two satellite tuners,
connect the SAT antennae to the SAT sockets
(see figure on page 5).
Replace the cover.
Switching on
The display and the On/Off switch are combined
in one unit.
Press the On/Off button so that it
is pressed in.
Initial installation
Automatic programming of the TV set is started
the first time you switch it on. Follow the menus.
First you have to select the menu language for
your set. Then you specify which antenna you
have connected to your TV and in what country
you are using it. Then you start the station
search. The TV set searches for, stores and sorts
all the stations which your antenna system re-
ceives. You then see a list of the stored stations
in which you can mark your favorites. Finally log
in your video recorders, decoders, Loewe audio
system and Home Automation with the connec-
tion wizard and connect these to the TV set
according to the illustrated connection plan.
Pressing the OK button in the
direction of the arrow to select
the settings
....confirm the settings with OK.
You then move on to the next
menu...
...press this button if you
want information about the
settings.
You can repeat initial installation at any time,
e.g. after moving house. Call the index in the
main information (i button). Then select the item
”Repeat initial installation”. Then start ”Initial
installation” with OK.
AV2/RGB
AV3
AV1
SAT
RC5/RC6
SAT A/D
R
SUR
DIG OUT
DIG IN
AUDIO IN
SERVICE
AUDIO OUT
VHF/UHF
R
IR
1
L
2
SUBWOOFER
STAND
VGA
SUB
L
C
CTRL
OK
OK
TV
DVD STB
VCR
BAQ2550H_31310_021_4_GB 22.07.2004, 10:15 Uhr9
