Loewe Articos 32 [13/34] Modes of operation
![Loewe Articos 32 [13/34] Modes of operation](/views2/1020536/page13/bgd.png)
13
Station scan
The frame around the PIP picture
must be green. If it is not, press
the green button.
Start the station scan with the
blue button. The PIP frame turns
blue.
The programs now change automatically.
Stop the program scan with the blue button. The
PIP frame turns green again.
Changing PIP picture/TV picture
The frame around the PIP picture
must be green. If it is not, press
the green button.
Change the pictures with the
yellow button.
Position of the PIP picture
Call the PIP menu with the
MENU-button.
Select ”Position”
Select the symbols for the posi-
tion
Hide the PIP menu
Resolution of the PIP picture
In the PIP menu, select
”Resolution”
Set to ”large” or ”small”.
Split screen
In the PIP menu, select
”Type”
Select the symbol for Split
Screen.
Hide the PIP menu
The picture on the right is the PIP picture and
has no sound. The vertical line represents the
color of the frame around the PIP picture.
Setting ”iPIP”
Switch on PIP, call the PIP menu with the MENU
button.
Mark ”Function-
ality”
Select ”iPIP”
Hide menu
iPIP function:
In iPIP the TV picture currently displayed be-
comes the PIP picture. Select another program
for the TV picture and keep your eye on the PIP
picture. In this way you can temporarily ”ban”
commercials or parts of programs to the PIP
picture. In iPIP, the frame round the PIP picture is
orange.
PIP picture on/off
The PIP picture becomes a TV picture again when
you switch off PIP.

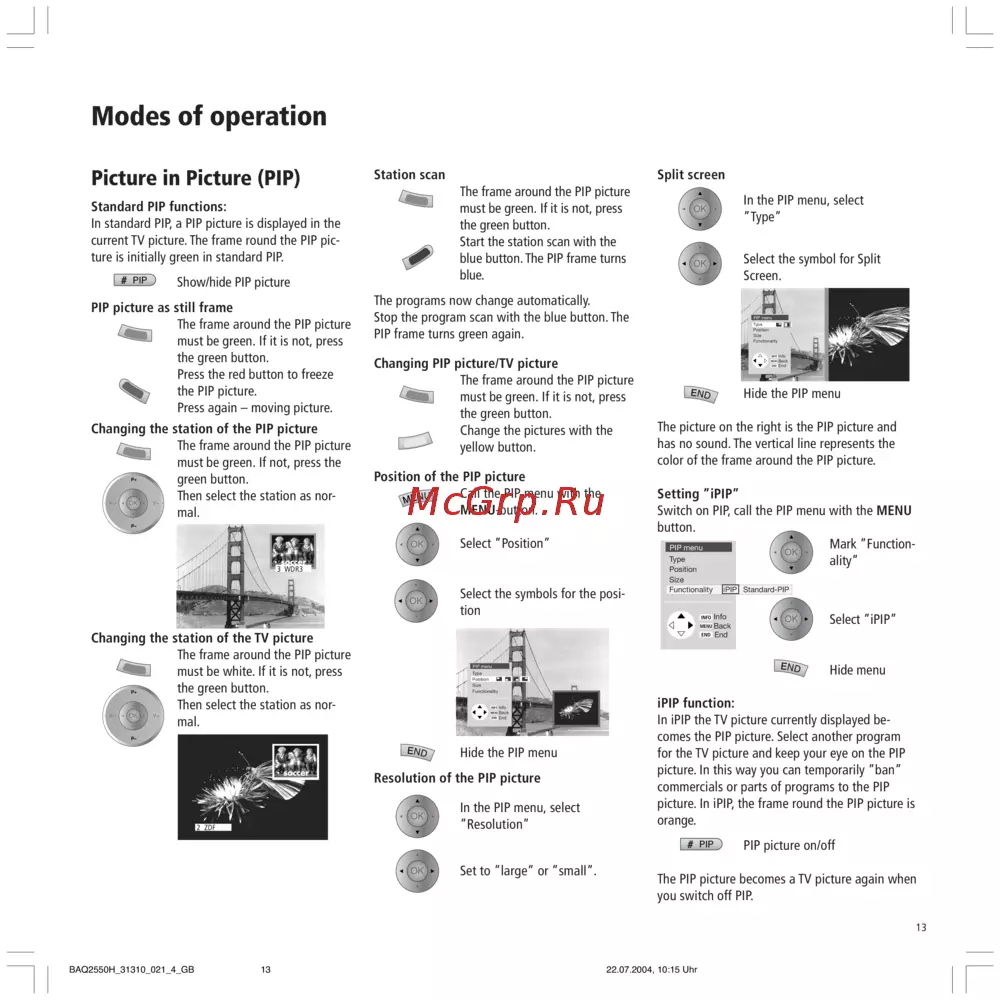

Modes of operation
Picture in Picture (PIP)
Standard PIP functions:
In standard PIP, a PIP picture is displayed in the
current TV picture. The frame round the PIP pic-
ture is initially green in standard PIP.
Show/hide PIP picture
PIP picture as still frame
The frame around the PIP picture
must be green. If it is not, press
the green button.
Press the red button to freeze
the PIP picture.
Press again – moving picture.
Changing the station of the PIP picture
The frame around the PIP picture
must be green. If not, press the
green button.
Then select the station as nor-
mal.
Changing the station of the TV picture
The frame around the PIP picture
must be white. If it is not, press
the green button.
Then select the station as nor-
mal.
2 ZDF
3 WDR3
PIP
P+
OK
P–
V— V+
P+
OK
P–
V— V+
OK
OK
OK
OK
OK
OK
OK
OK
PIP
PIP menu
Back
Info
End
Type
Position
Size
Functionality iPIP Standard-PIP
INFO
MENU
END
PIP menu
Back
Info
End
Type
Position
Size
Functionality
INFO
MENU
END
PIP menu
Back
Info
End
Type
Position
Size
Functionality
INFO
MENU
END
BAQ2550H_31310_021_4_GB 22.07.2004, 10:15 Uhr13
